4-7 Installation
AC30V Variable Speed Drive
FRAME J
Through panel mounting a drive in a cubicle allows you to use a smaller cubicle because much of the heat generated by the drive is dissipated
outside the cubicle.

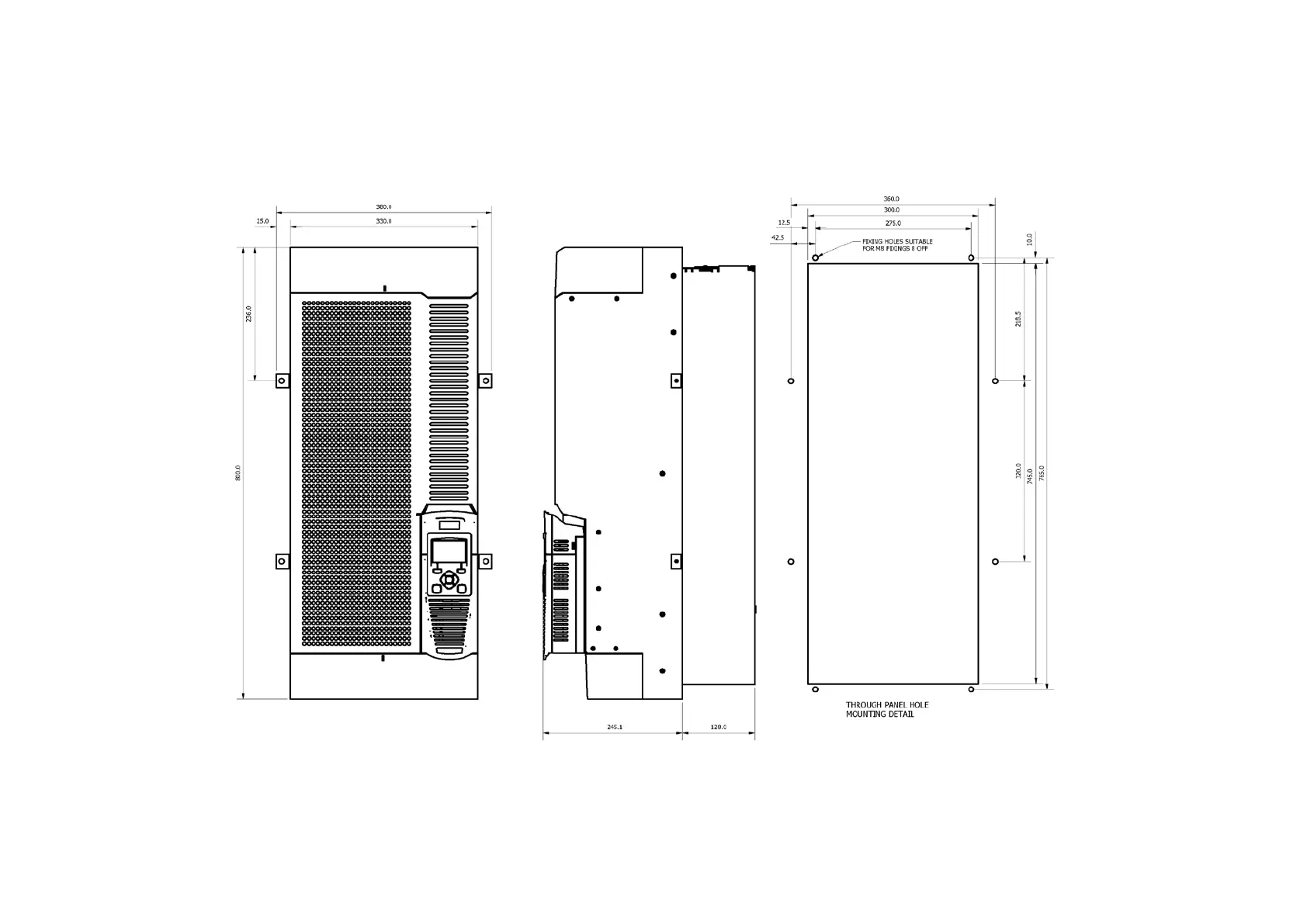

Figure 4-6 Mechanical Dimensions for Through Panel Frame J AC30V Drive
All dimensions are in millimetres (inches)
Fixings: 8 x 9.0mm holes M8 fixings, refer to panel mounting kit part number LA502793
