Parker AC30 series User Manual

Setup Wizard 9-23
AC30V series Variable Speed Drive
COMMISSION THE DRIVE

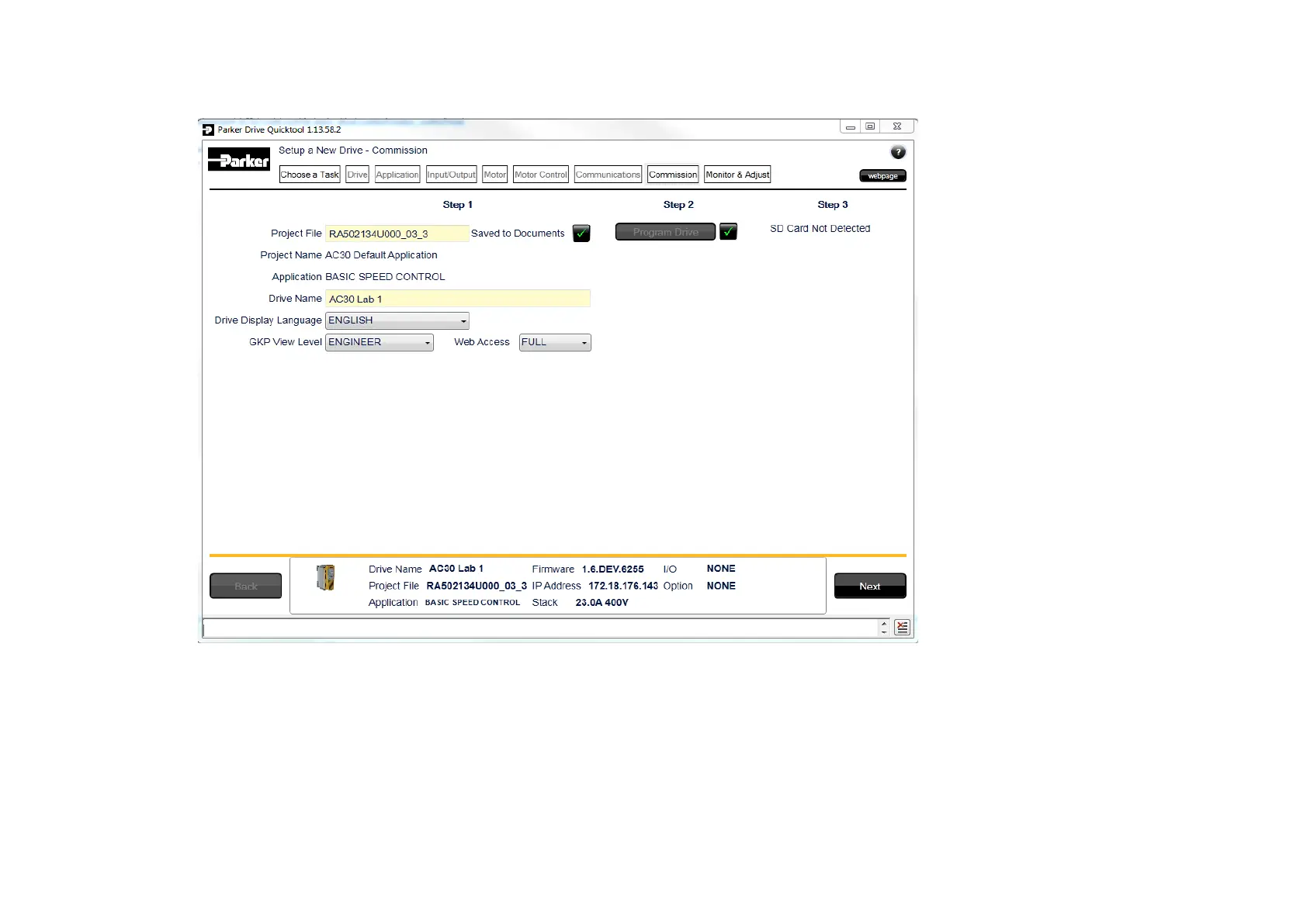

Figure 9-14 Programming the Drive
The “Commission” page is used to commission the Drive with the Selected macro and motor settings chosen during the Wizard.
There are two steps that are performed to finalise the Commissioning of the Drive.
1. Enter the Project File name and the Drive’s name in the left of the screen.
2. “Program Drive”. This step writes your settings to the Drive and overwrites any existing configuration in the Drive.
After these steps, the Drive is ready to use.
www.comoso.com

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
