Compliance C-26
AC30V series Variable Speed Drive
Frame J:

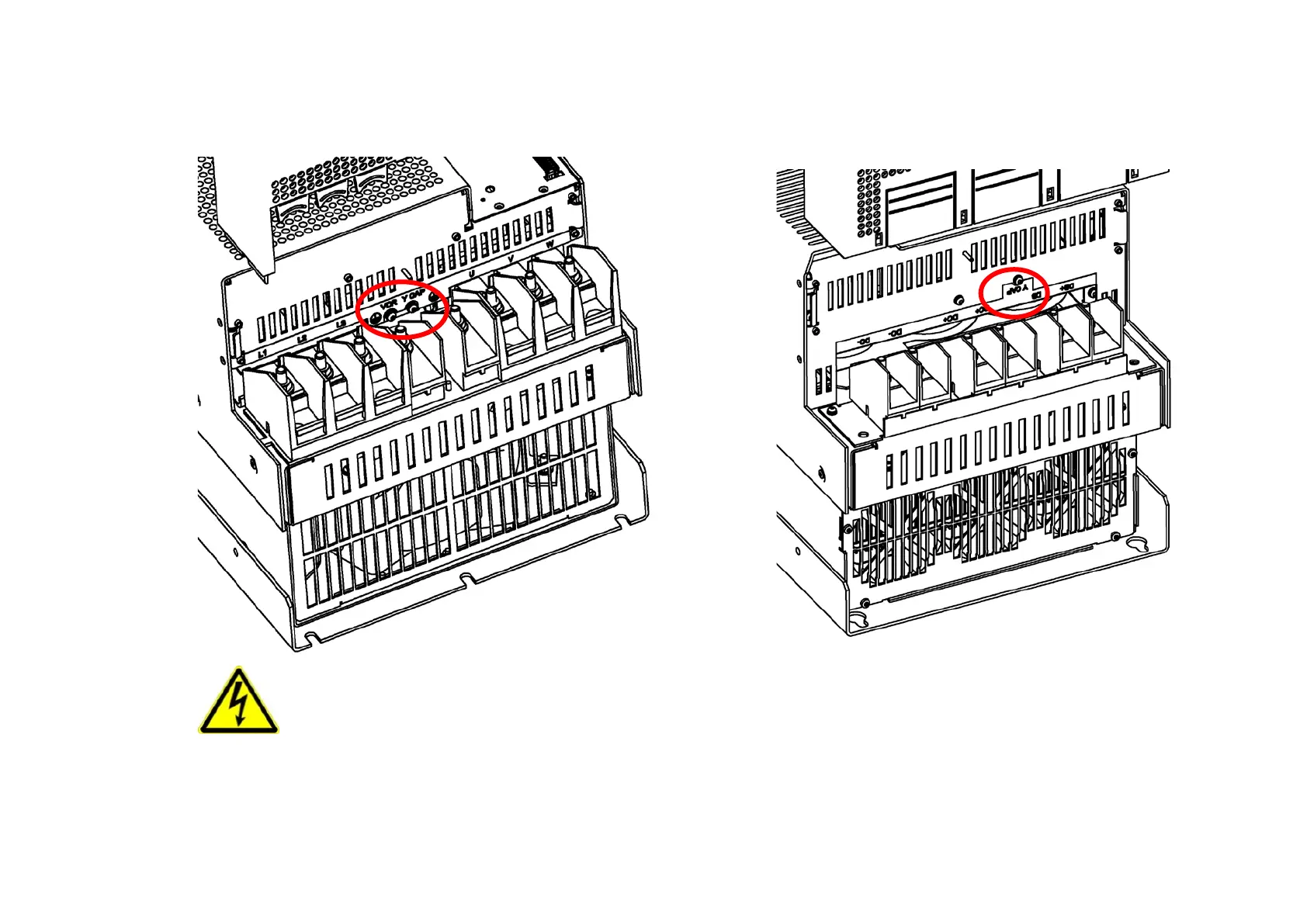

To access the filter disconnects the top and bottom covers will need to be removed, refer to Chapter 4 for removal information. Remove the
highlighted screws shown below. It is essential that both ‘YCAP’ disconnect screws are in place, do NOT remove one of the disconnect screws.
The screws should only be removed once the supply has been disconnected and the residual energy has been
discharged.
“DANGER” – Risk of electric shock. Cover and cover screws must remain in place while drive is energised”,
the EMC filter disconnect will become live once cover and cover screws are removed.
