Chapter 5: PASM
239

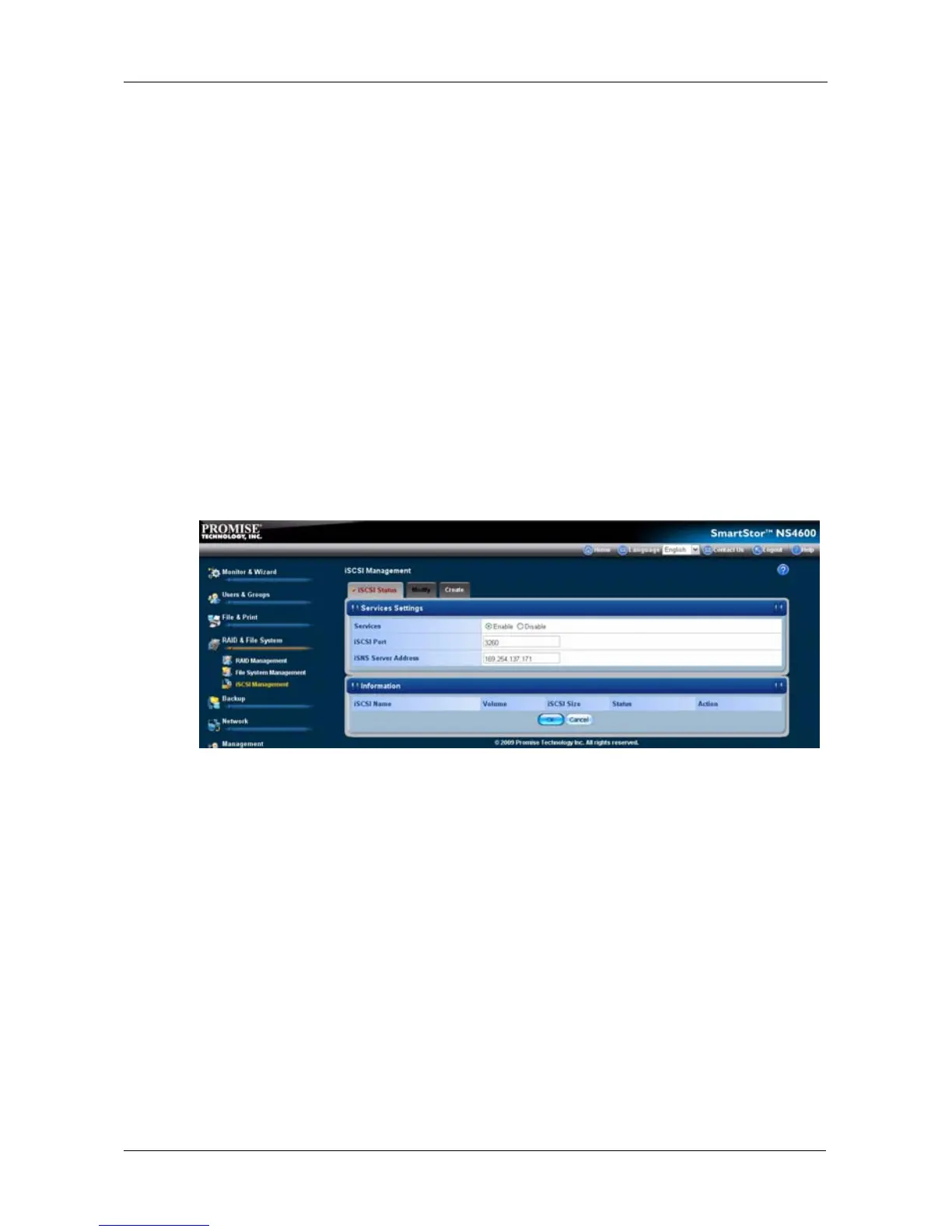

2. In the Tree, click the iSCSI Management icon.
3. In the iSCSI Status tab, click the Enable button in the Services field.
4. Type the following items into their respective fields:
• iSCSI Port
• iSNS (Internet Storage Name Service)Server Address
Contact your network administrator for help with these settings.
5. Click the OK button.
The iSCSI settings are applied.
The following list displays the iSCSI Information for the:
• iSCSI name
• Volume (file system)
• iSCSI Size
• RAID status
• Action status
Click the Enable/Disable button in the Action column to activate or deactivate
the iSCSI service.
To delete the iSCSI volume:
1. Click the Delete button in the Action column.
2. In the confirmation box, type YES in the field provided and click the OK
button.
The iSCSI volume is deleted.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
