SmartStor NS4600 Product Manual
16

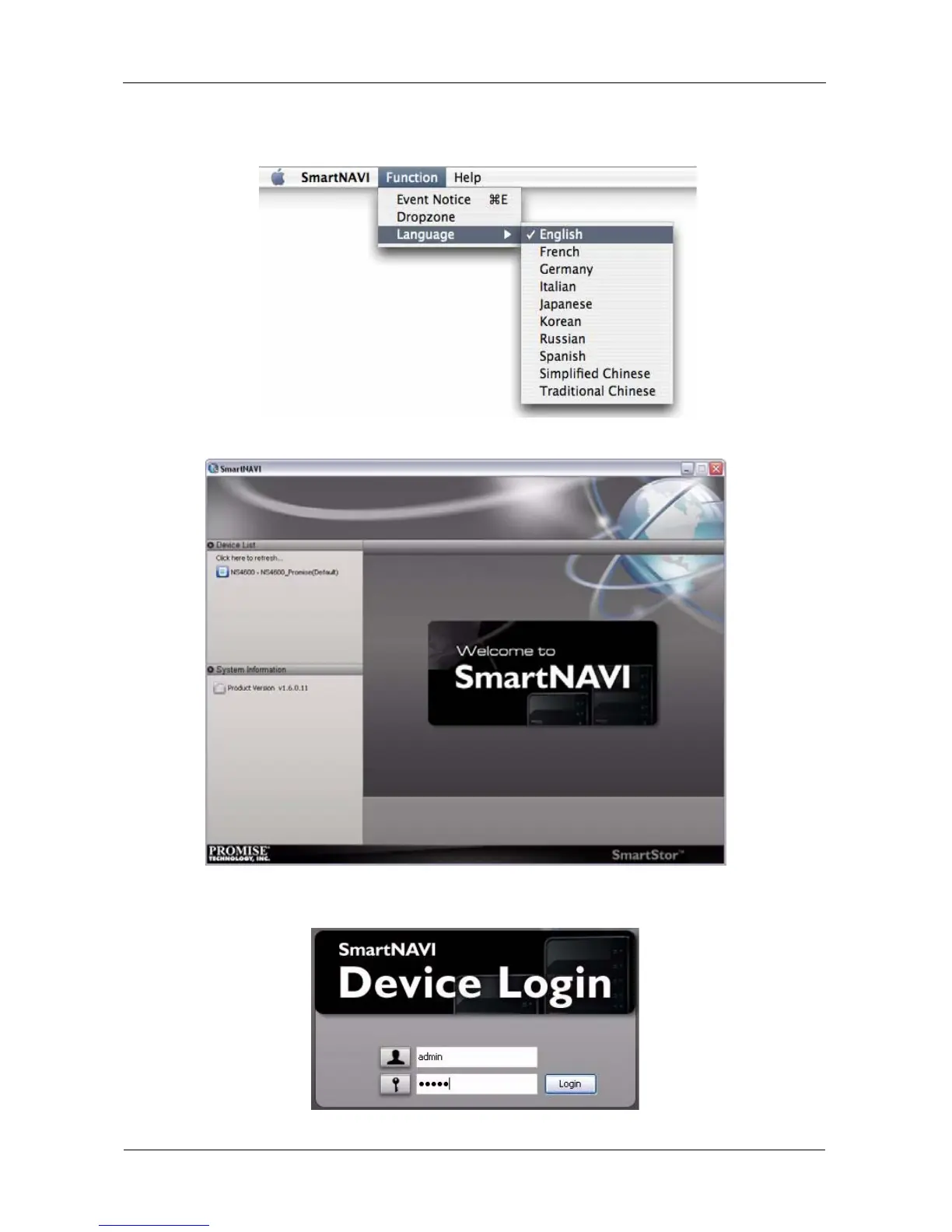

2.
Macs only
. From Language d
ropdown menu,
choose the language
you
prefer
.
3.
Double-click the NS4600 in the Device
list.
4.
T
ype
admin
in
the Username, Password, and Confirm fields, then click the
Login
bu
tton.
27
