Chapter 2: Installation and Setup
21
Click the
Next
button to continue.
8.

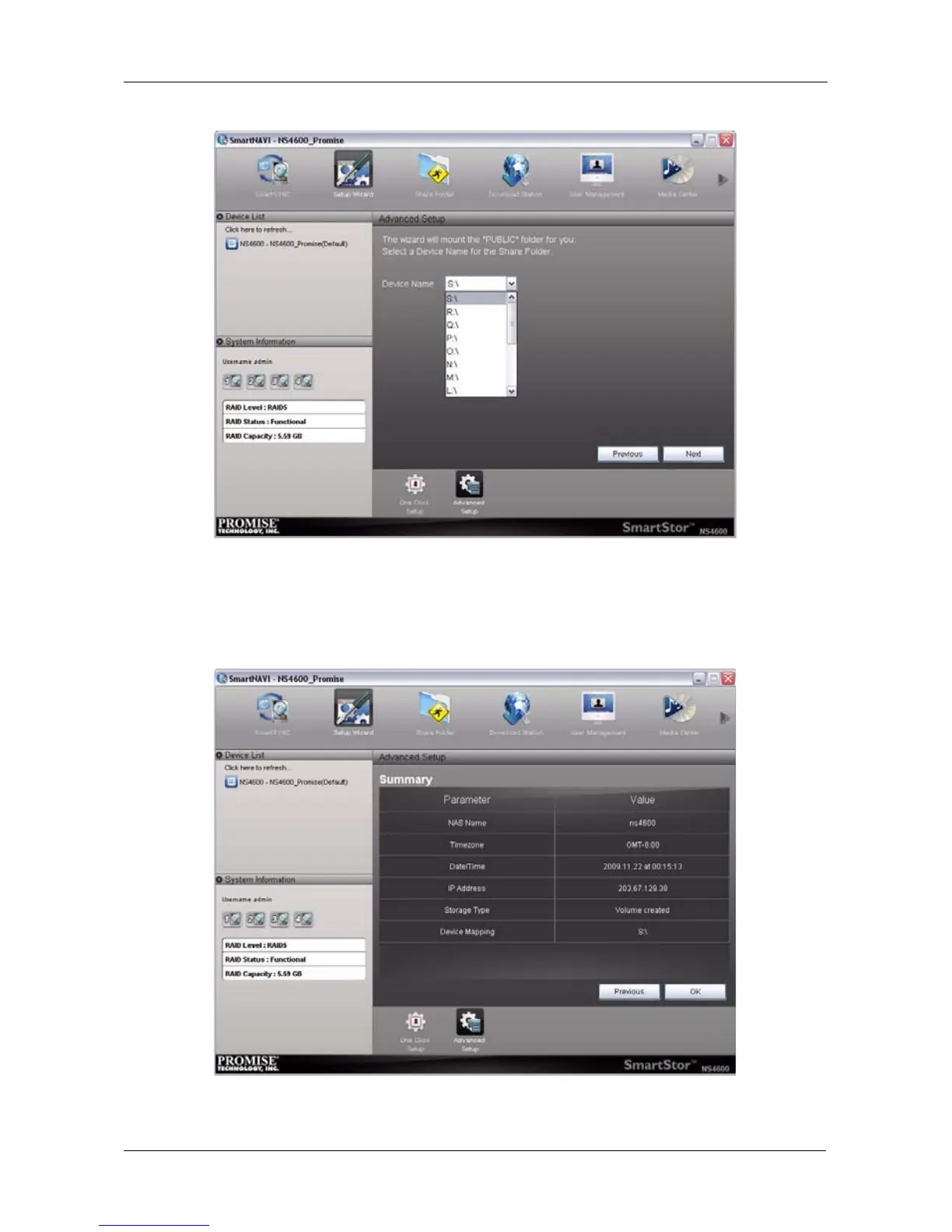

Review your parameters.
T
o ma
ke changes, click the
Previous
button
.
T
o accept th
e p
arameters and conf
igure your NAS system, click the
OK
button.
32
34
