LB9 User’s Guide 1113/1523
11.3.2.4 Configuring Cable Test Function Page

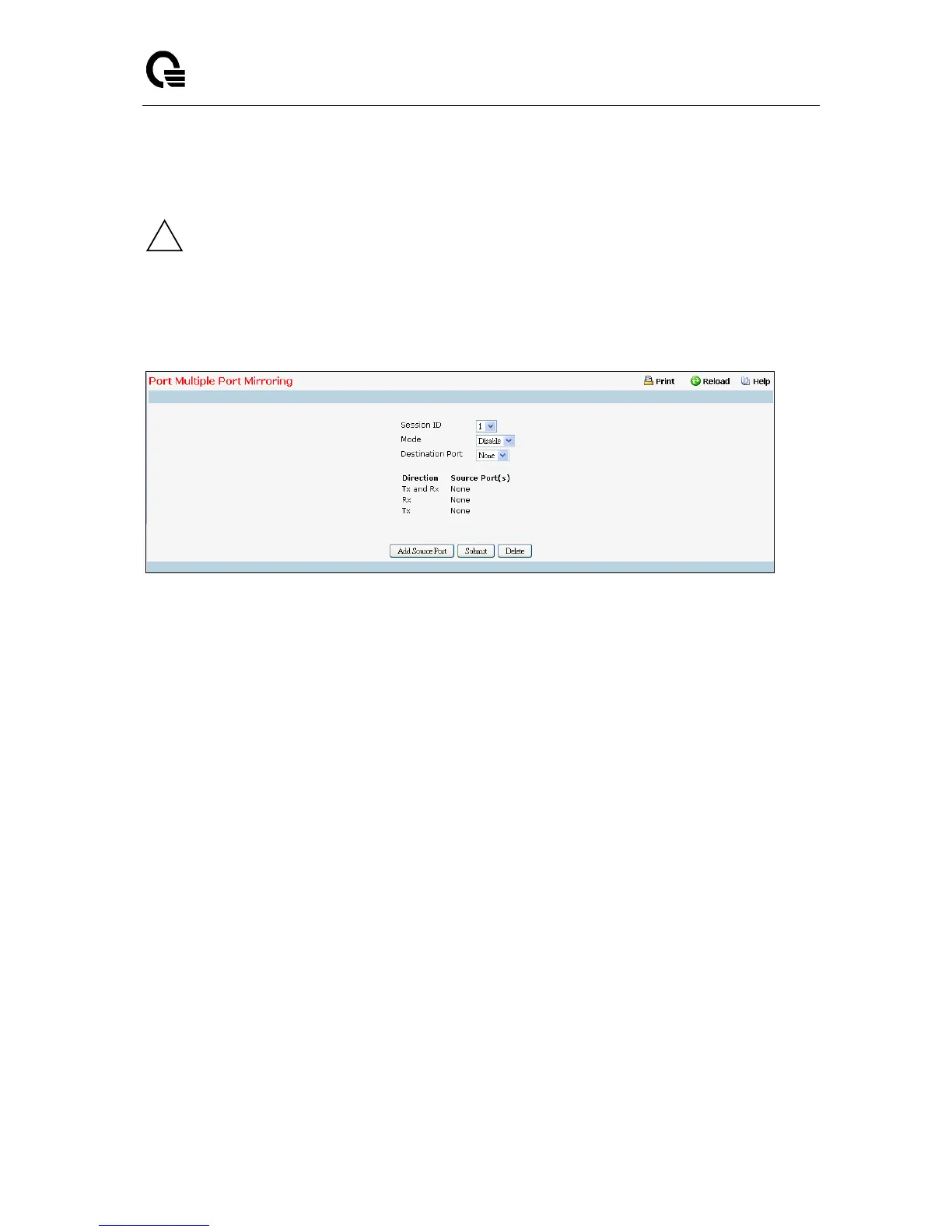

11.3.2.5 Configuring Multiple Port Mirroring Function Page
Selection Criteria
Session - Select a port mirroring session from the list. The number of sessions allowed is platform
specific. By default the First Session is selected.
Mode - Specifies the Session Mode for a selected session ID. The default Session Mode is disabled.
Destination Port - Acts as a probe port and will receive all the traffic from configured mirrored
port(s). Default value is blank.
Configurable Data
Source Port(s) - Specifies the source port(s) with directions as mirrored port(s). Traffic of the source
port(s) is sent to the probe port. Up to 52 source ports can be selected per session.
Non-Configurable Data
Direction - Specifies the direction of traffic on source port(s) which will be sent to the probe port.
Possible values are Tx and Rx.
Command Buttons
Add Source Ports - To add Source Port(s) to the selected session.
Remove Source Ports - To remove the configured Source Port(s) of the selected session.
Submit - Send the updated screen to the switch and cause the changes to take effect on the switch.
Delete - Remove the selected session configuration.
