.Fueltankslevelsandtotalfuel—Whenatankreaches20%ofitscapacitythelevelindicator
willturnred.Upto5fueltanksaresupported.
8.Currentvesselspeed(SpeedThroughWater).
9.Tabposition—Indicatesvesseltabpositionasapercentagewith0%beingfullytrimmedup
(stored)and100%fullytrimmeddown.
10.Enginetrim—Indicatestheenginetrimposition.Numericvalueswillbedisplayedfrombetween
25.0and10.0.Whenthetrimnumbergoesabove10.0thenumericvaluewillbereplaced
bytheboatontrailericon.
Enginenotifications
EnginenotificationssuchasalarmsandwarningswillbedisplayedontheMFDscreen.
Systemstatus
TheSystemstatusisdisplayedinthecenterofthepage.
WhenthesystemisstartedascanisperformedafterwhichSystemOKisdisplayed.
NoCommunicationisdisplayediftheenginesareturnedofforenginedatacannotbedetected.
Ifthesystemisrestartedafterabrieftimethesystemscanisnotperformed.

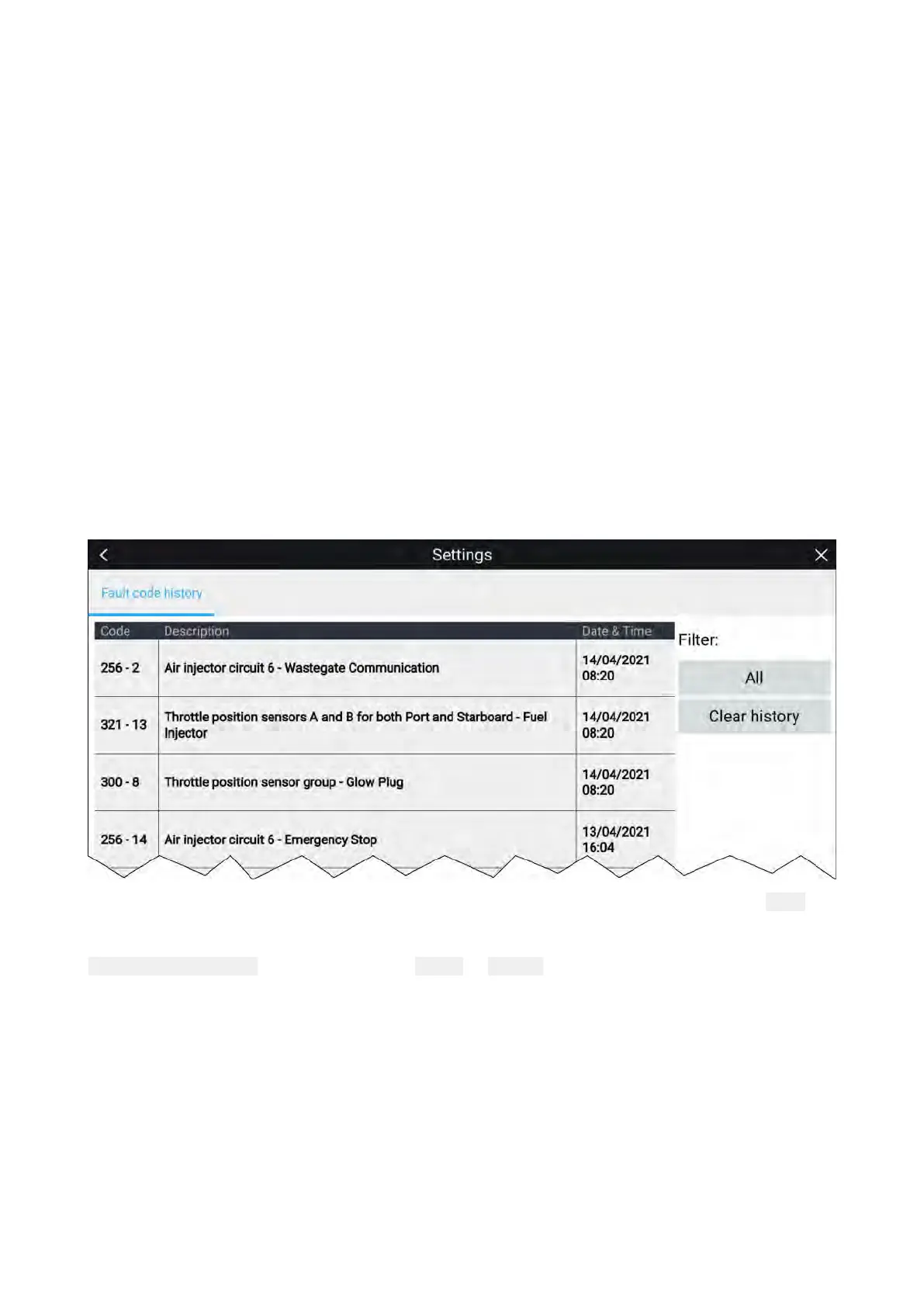

Faultcodehistory
Thefaultcodestabdisplaysliveandhistoricaldetectedenginefaults.
BydefaulttheFaultcodeshistorytabdisplaysfaultcodesforallengines.Y oucanusethe Filter
optiontodisplayfaultcodesforaspecificengine.
ActiveandhistoricalenginefaultcodescanalsobeviewedfromtheMFD’sAlarmmanager:
Homescreen>Alarmsandselectingeither Activeor Historytab.
MercuryV esselViewapp
319

Raymarine LIGHTHOUSE 3 Specifications

General

Operating System	LightHouse 3
Networking	RayNet (Ethernet), NMEA2000
Display	High-resolution touchscreen
User Interface	Touchscreen with intuitive interface
Navigation	Advanced navigation features
Radar Support	Yes
Sonar Support	Yes
Connectivity	Wi-Fi, Bluetooth, NMEA 2000
Integration	Engine data, autopilot control, digital switching, entertainment systems
GPS	Built-in GPS receiver
Cartography	Supports Navionics and LightHouse charts
AIS Compatibility	Yes
Compatible Displays	Raymarine Axiom, Axiom Pro, Axiom XL
Chart Support	Navionics, C-MAP, LightHouse charts
Radar Compatibility	Raymarine Quantum
Sonar Compatibility	Raymarine CP370, CP470, CP570 sonar modules
Software Updates	Via Wi-Fi or microSD card
