Section 06 ENGINE MANAGEMENT (RFI)
Subsection 03 (COMPONENT ADJUSTMENT, INSPECTION AND REPLACEMENT)

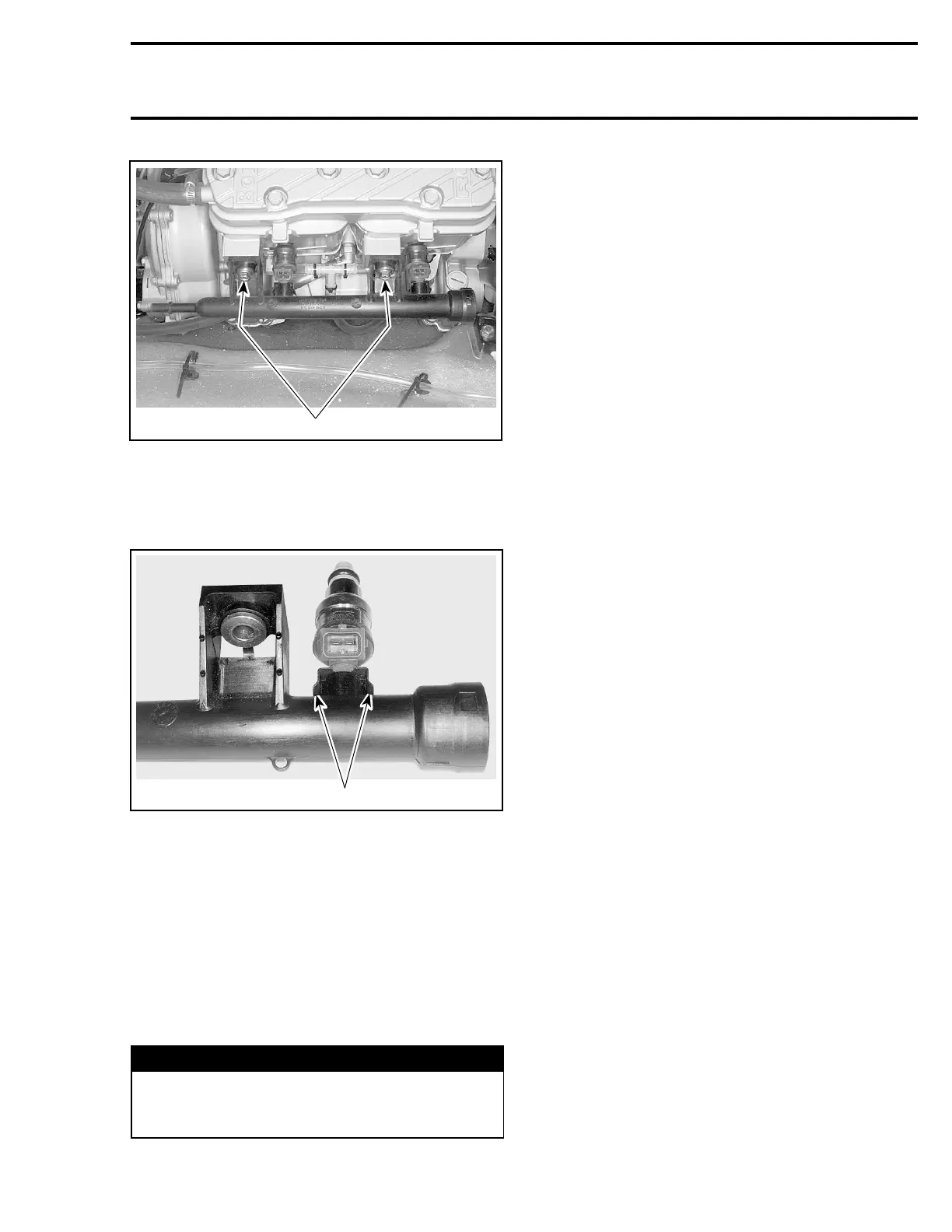

F07F0SA
1
1. Loosen screws retaining the fuel rail
Remove the fuel rail with both fuel injectors.
To remove the fuel injector from the fuel rail, pry
off the retaining clip.
F07F0TA
1
1. Pry the clip
– Carefully inspect O-rings condition before re-
installing fuel injectors. Replace O-rings with
new ones if damaged.
When reinstalling the fuel injector, install the re-
taining clip to the injector, then insert the injector
into the fuel rail.
Apply a thin layer of injection oil to O-rings of fuel
injectors to ease fuel rail installation.
– Check injectors to ensure there is no leak.
WARNING
If a leak is present, immediately stop the en-
gine. Do not use engine until the leak is re-
paired.
smr2005-056 143
