Section07ELECTRICALSYSTEM
Subsection 01 (IGNITION SYSTEM)
CAUTION: Do NOT use coil tester on metal
work bench. Follow manufacturer instruc-
tions.
– With ignition coil removed from craft, discon-
nect spark plug caps from high tension cables.
– Hook high tension leads from tester to ignition
coil high tension cables.
– Connect 2 smaller tester leads to primary of
ignition coil.

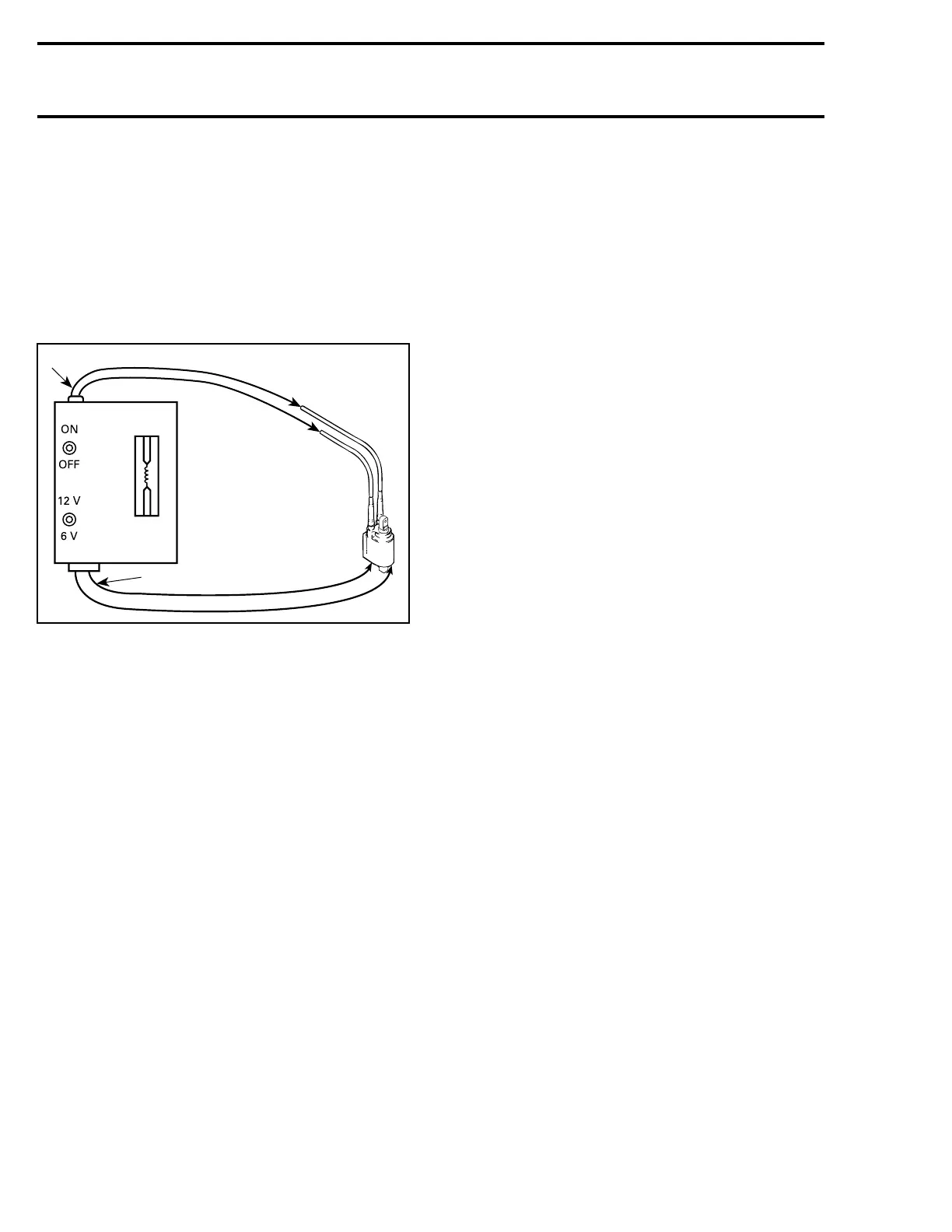

F00H14A
1
2
TYPICAL
1. Leads to secondary
2. Leads to primary
– Turnpowerswitchto12voltsandyoushould
observe spark jumping at a predetermined gap
of 7 to 8 mm (.276 to .311 in).
If there is no spark, if it is weak or intermittent, the
coil is defective and should be replaced.
152 smr2005-057
