Section 07 ELECTRICAL SYSTEM

Subsection 01 (IGNITION SYSTEM)

A00E0BA

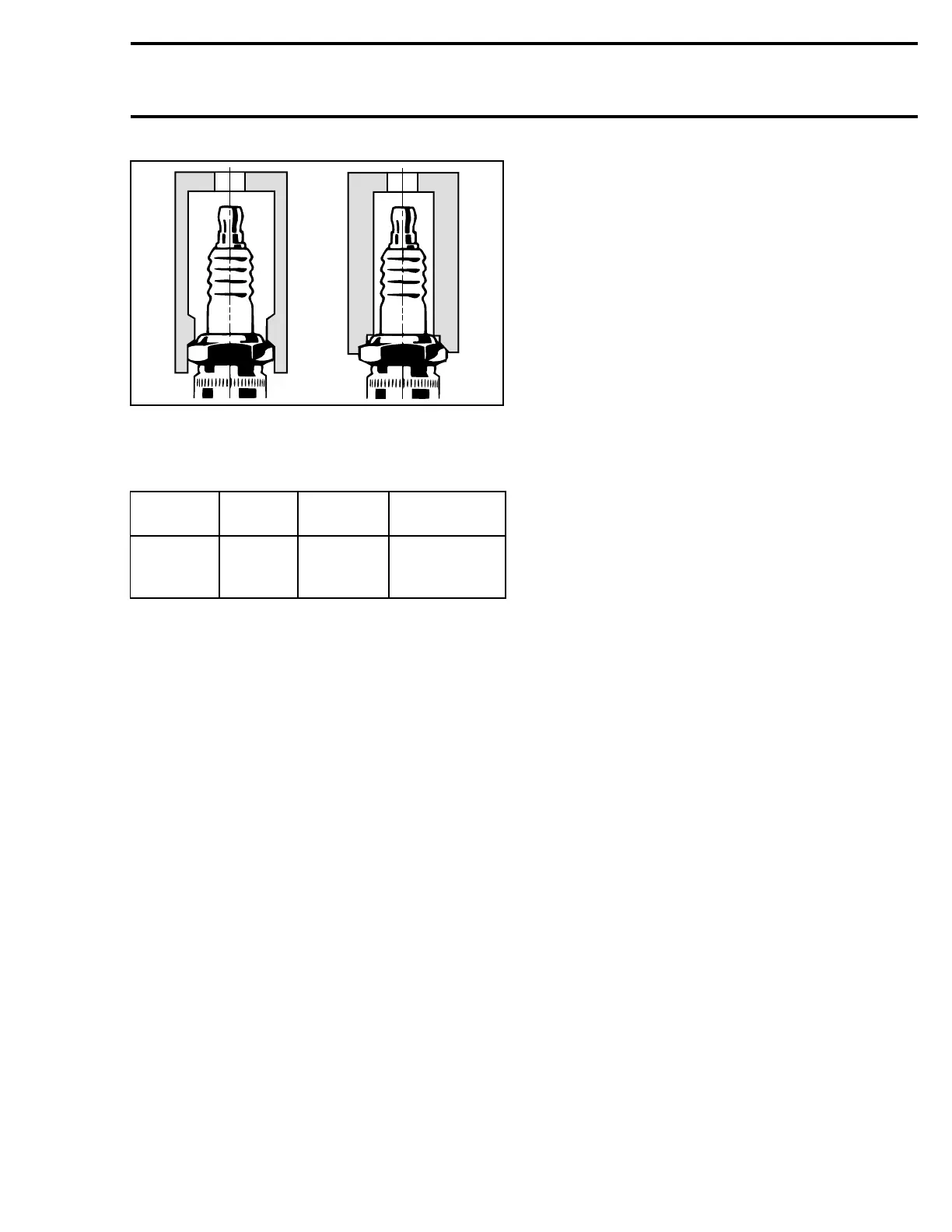

1. Proper socket

2. Improper socket

Spark Plug Chart

ENGINE

SPARK

PLUG

TORQUE GAP

717 and

787 RFI

engines

BR8ES

24 N•m

(17 lbf•ft)

0.4 - 0.5 mm

(.016 - .020 po)

NOTE: RefertonextpageforNGKSPARKPLUG

SYMBOL EXPLANATION.

smr2005-057 163

www.SeaDooManuals.net

Default Chapter4
