SeaDoo 3D User Manual

Section07ELECTRICALSYSTEM
Subsection 03 (STARTING SYSTEM)

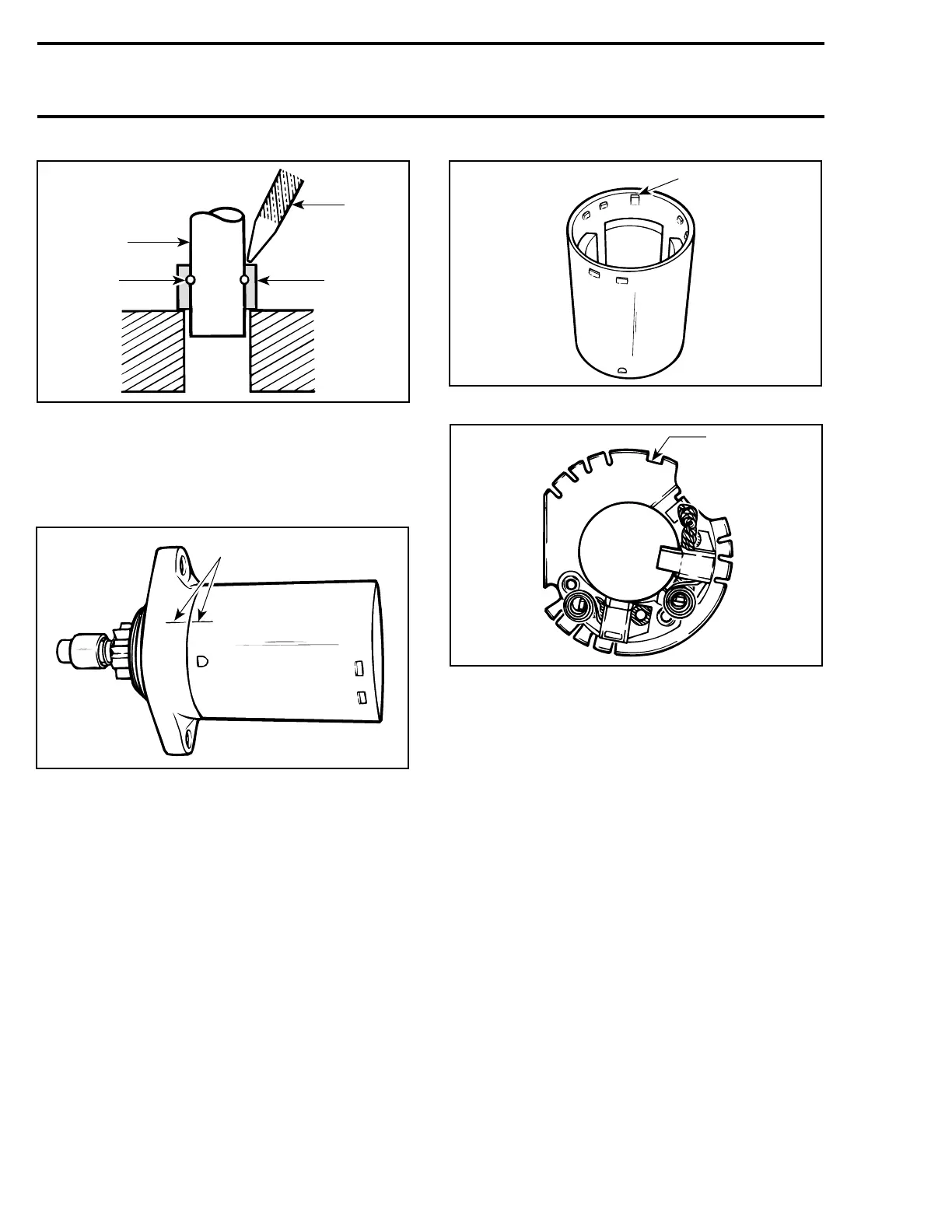

A03E0EA
1
2
4
3
1. Armature shaft
2. Circlip
3. Pinion stop collar
4. Punch
Yoke Assembly and Clutch Housing
Align previously traced indexing marks.
F01H0QA
1
TYPICAL
1. Align marks
Open brushes no. 4 and slide over commutator.
Align end frame locating notch with yoke locating
protrusion and properly sit brush holder no. 2 into
yoke no. 1.
F01H0SA
1
1. Locating protrusion is the higher one
F01H0TA
1
1. Brush holder locating notch
To ease end frame installation, retain brush hold-
er with a small screwdriver while installing end
frame.
192 smr2005-059
www.SeaDooManuals.net

SeaDoo 3D Specifications

General

Manufacturer	Sea-Doo
Model	3D
Engine	Rotax 947
Horsepower	130 hp
Category	Personal Watercraft
Engine Type	2-stroke
Width	46.5 inches
Seating Capacity	1 person
