INTRODUCTION
In order to avoid a poor assembling, tighten screws, bolts or nuts in accordance with the following pro-
cedure:
– Manually screw all screws, bolts and/or nuts.
– Apply the half of the recommended torque value.
CAUTION: Be sure to use the proper tightening torque for the proper strength grade.
NOTE: When possible, always apply torque on the nut.
– Torque to the recommended torque value.
NOTE: Always torque screws, bolts and/or nuts in a criss-cross sequence.

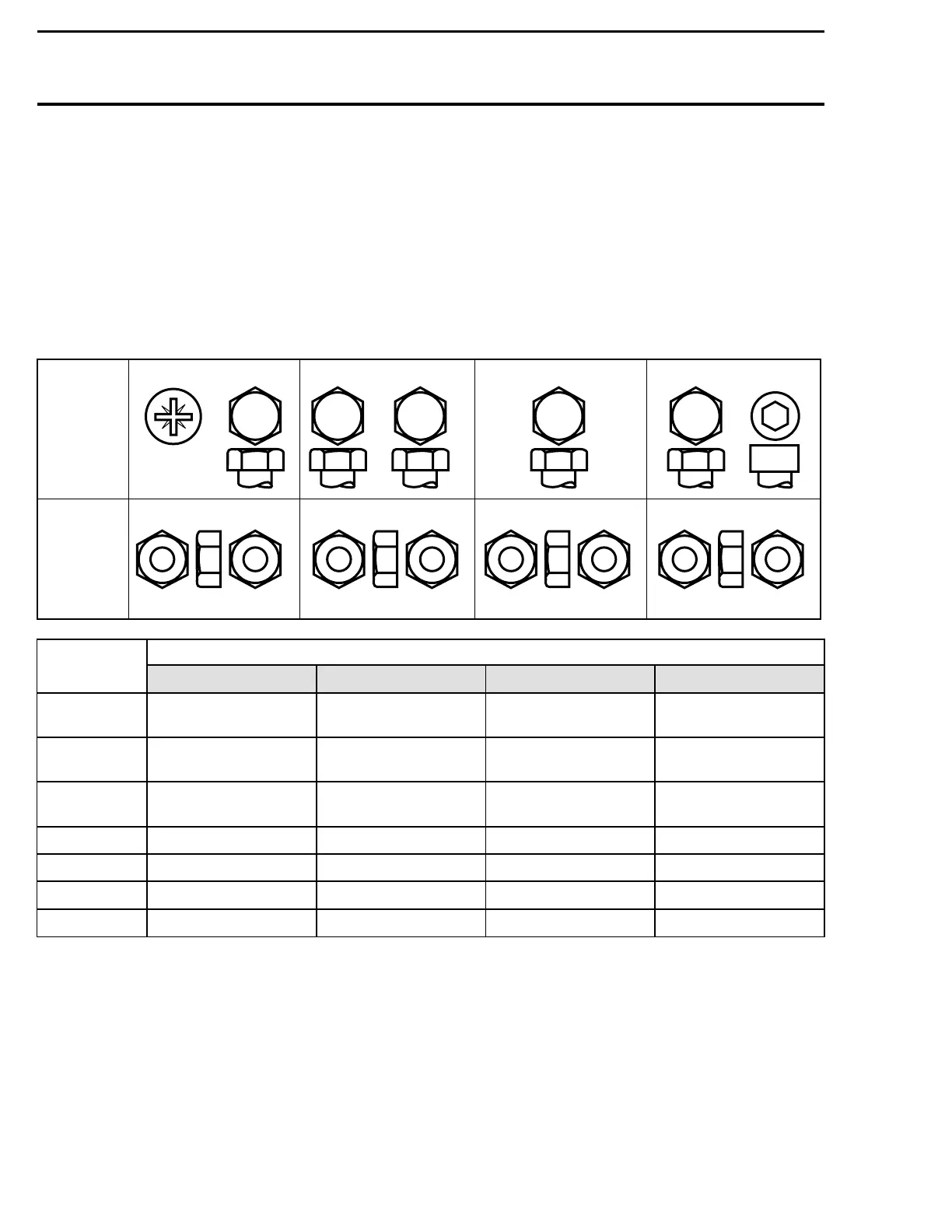

A00A8BS
Property
class
and
head
markings
Property
class
and
nut
markings
5
5
10
10
10
10
12
12
4.8
4.8
4.8
8.8
8.8
8.8
9.8
9.8
9.8
10.9
10.9
10.9
12.9
12.9
12.9
12.9
FASTENER GRADE/TORQUE
FASTENER
SIZE
5.8
Grade
8.8
Grade
10.9
Grade
12.9
Grade
M4
1.5 — 2N•m
(13 — 18 lbf•in)
2.5 — 3N•m
(22 — 27 lbf•in)
3.5 — 4N•m
(31 — 35 lbf•in)
4 — 5N•m
(35 — 44 lbf•in)
M5
3 — 3.5 N•m
(27 — 31 lbf•in)
4.5 — 5.5 N•m
(40 — 47 lbf•in)
7 — 8.5 N•m
(62 — 75 lbf•in)
8 — 10 N•m
(71 — 89 lbf•in)
M6
6.5 — 8.5 N•m
(58 — 75 lbf•in)
8 — 12 N•m
(71 — 106 lbf•in)
10.5 — 15 N•m
(93 — 133 lbf•in)
16 N•m (142 lbf•in)
M8 15 N•m(11lbf•ft) 24.5 N•m(18lbf•ft) 31.5 N•m(23lbf•ft) 40 N•m(30lbf•ft)
M10 29 N•m(21lbf•ft) 48 N•m(35lbf•ft) 61 N•m(45lbf•ft) 72.5 N•m(53lbf•ft)
M12 52 N•m(38lbf•ft) 85 N•m(63lbf•ft) 105 N•m(77lbf•ft) 127.5 N•m(94lbf•ft)
M14 85 N•m(63lbf•ft) 135 N•m(100lbf•ft) 170 N•m (125 lbf•ft) 200 N•m (148 lbf•ft)
XVIII
smr2005-041
