SeaDoo 3D User Manual

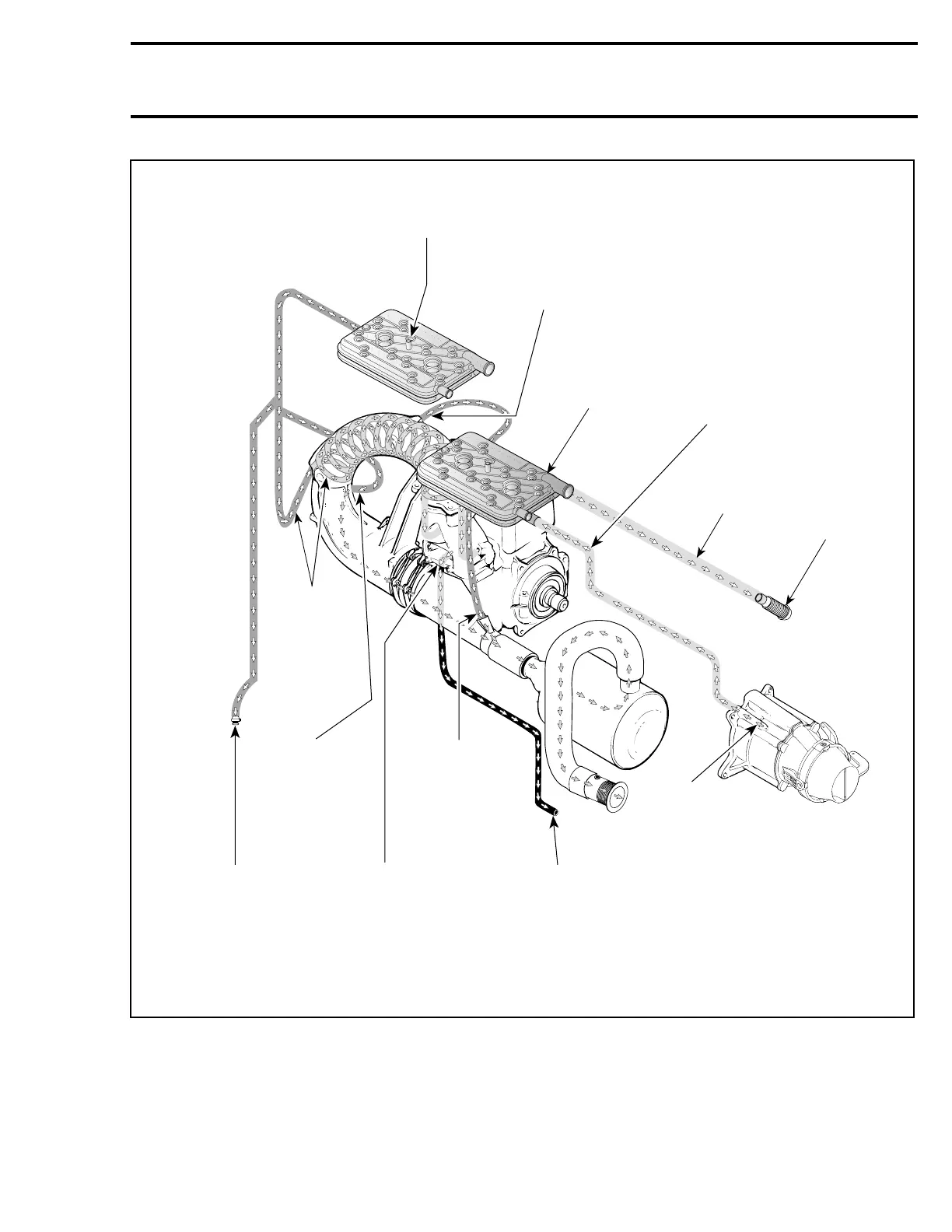

Section 08 COOLING SYSTEM
Subsection 01 (COMPONENTS AND CIRCUIT)
Temperature sensor activates
monitoring beeper when temperature
exceeds 96 - 99°C (205 - 210°F)
Uppermost point
of circuit (tuned pipe)
allows bleeding
Calibrated
cylinder
head limits
water flow
Fresh water
enters engine
head for
additional
combustion
chamber cooling
Calibrated
outlet fitting
limits
water flow.
ALSO used
as flushing
connector
Cooling System
Indicator (CSI):
Small stream of
water flows out
of bleed outlet located
under bumper
line on front
port side
Engine water
hose outlet
Pressure
zone
Calibrated outlet
fitting limits
water flow
Tuned pipe bleed
hose injects
water into
muffler to cool
exhaust
components
Lowest point of
circuit allows
draining
whenever
engine is
stopped
Water injected
directly into
exhaust gases for
noise reduction
and performance
improvement
Water flows
through
tuned pipe
and manifold
water jackets
F17E0FS
smr2005-061 221
www.SeaDooManuals.net

SeaDoo 3D Specifications

General

Manufacturer	Sea-Doo
Model	3D
Engine	Rotax 947
Horsepower	130 hp
Category	Personal Watercraft
Engine Type	2-stroke
Width	46.5 inches
Seating Capacity	1 person
