Section 08 COOLING SYSTEM

Subsection 01 (COMPONENTS AND CIRCUIT)

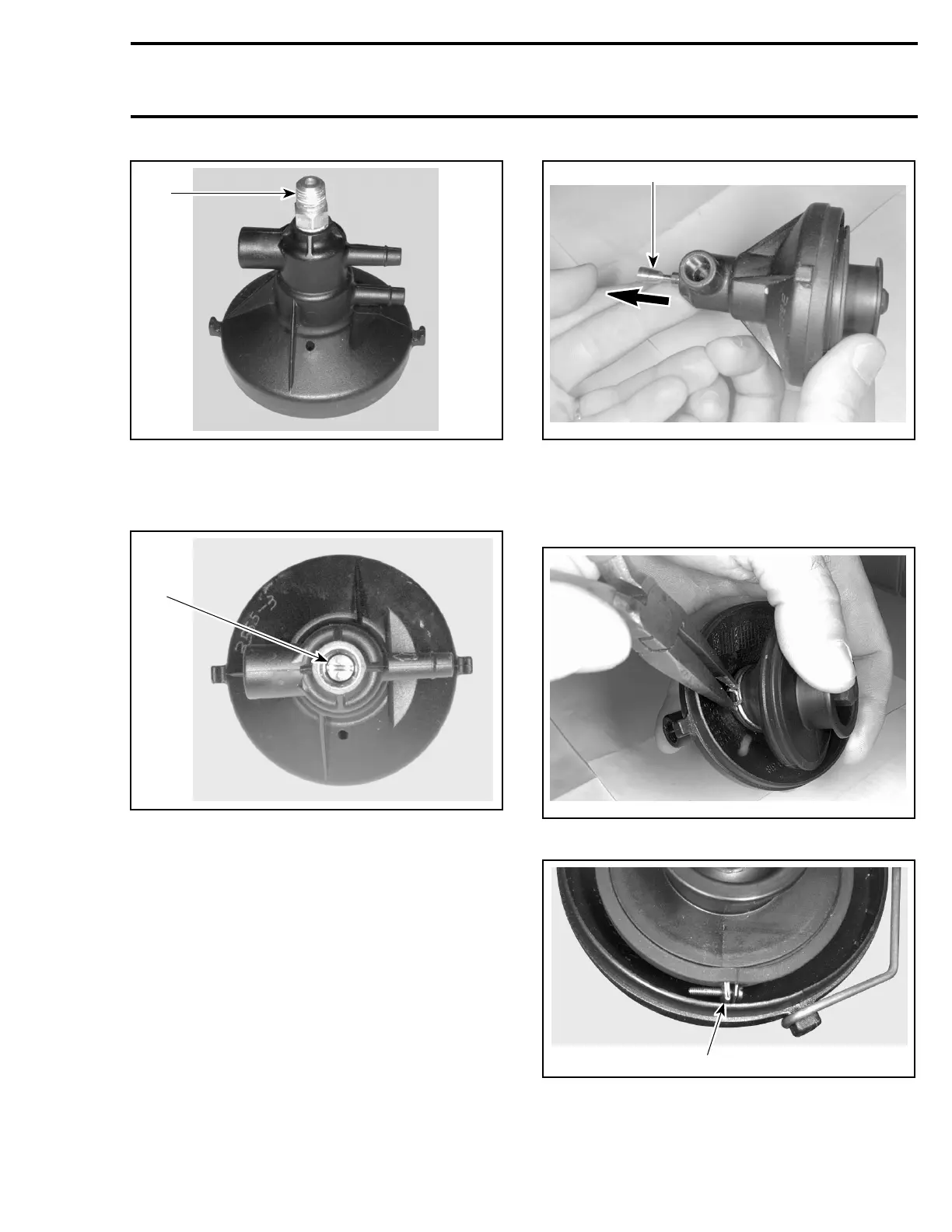

F01E1SA

1. Fitting

Unscrew the tapered needle no. 6.

NOTE: Hold the valve to prevent it from turning.

F01E1TA

1. Tapered needle

Remove the tapered needle from valve housing.

F01E20A

1. Remove tapered needle

Pull the valve slightly. Using pliers, release the

clamp which retains the bellows no. 8.

Remove valve no. 7 and bellows no. 8.

F01E21A

Loosen clamp to separate valve from bellows.

F01E24A

1. Clamp

smr2005-061 231
