Section 09 PROPULSION
Subsection 02 (DRIVE SYSTEM)
1
F01J2BA
TYPICAL

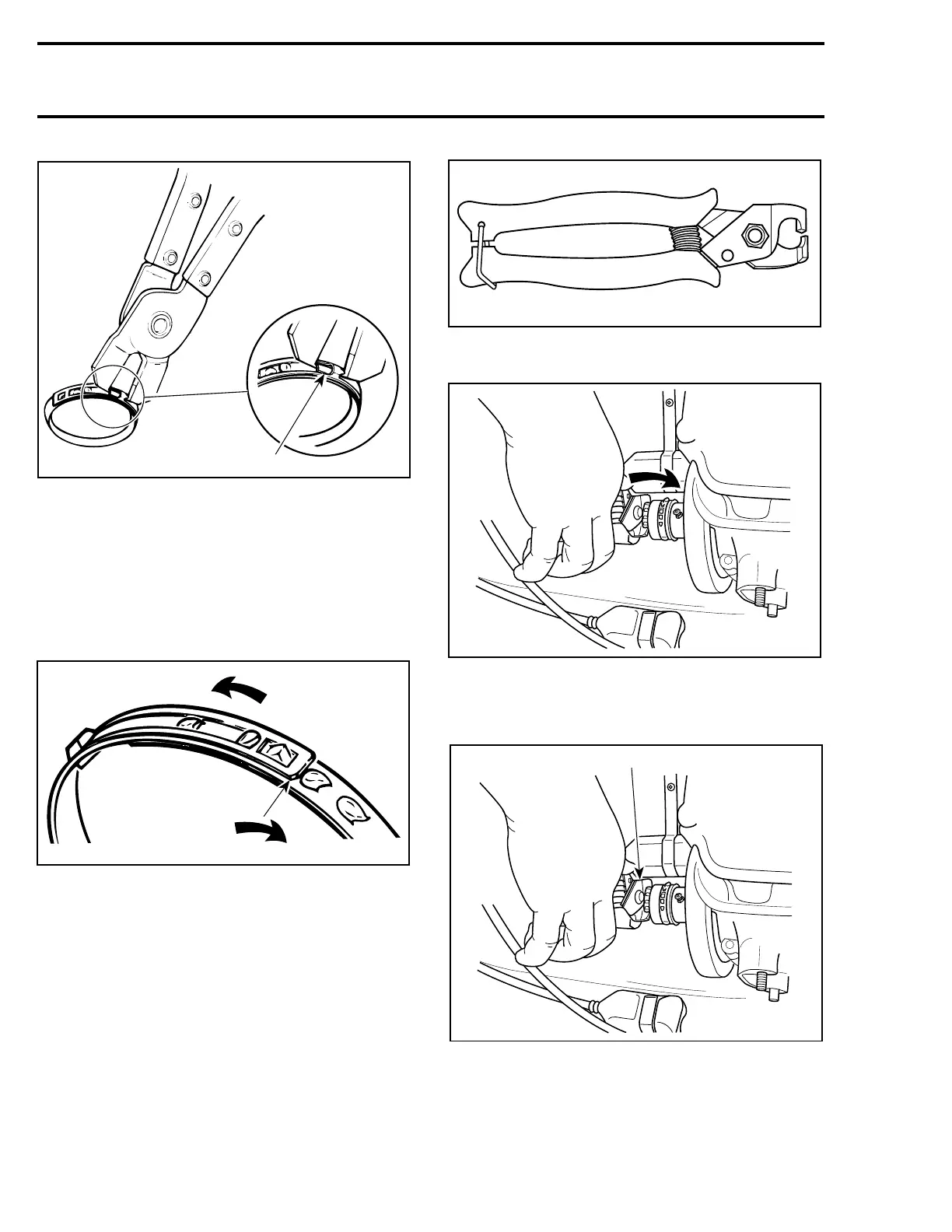

1. Closing hooks
– Squeeze pliers. When both large and small
windows are directly over the 2 locking hooks,
press those windows down to engage hooks
in windows.
NOTE: At installation, clamp tail should be in op-
posite direction of engine rotation.
F01J23B
1
2
1. Engine rotation (counterclockwise)
2. Tail in opposite direction
Small Clamp
Unfasten small clamp no. 3 of PTO
flywheel boot as follows:
– Use Caillau pliers (P/N 295 000 054).
F01B1TA
– To open clamp, place flat side of pliers on clamp
embossment, squeeze and twist pliers.
F02J0PA
To secure small clamp, do the following:
Placenotchsideofpliersonclampembossment
and squeeze pliers.
1
F02J0PB
1. Squeeze pliers
254 smr2005-063
