Section09PROPULSION
Subsection 02 (DRIVE SYSTEM)
F01J51A
1

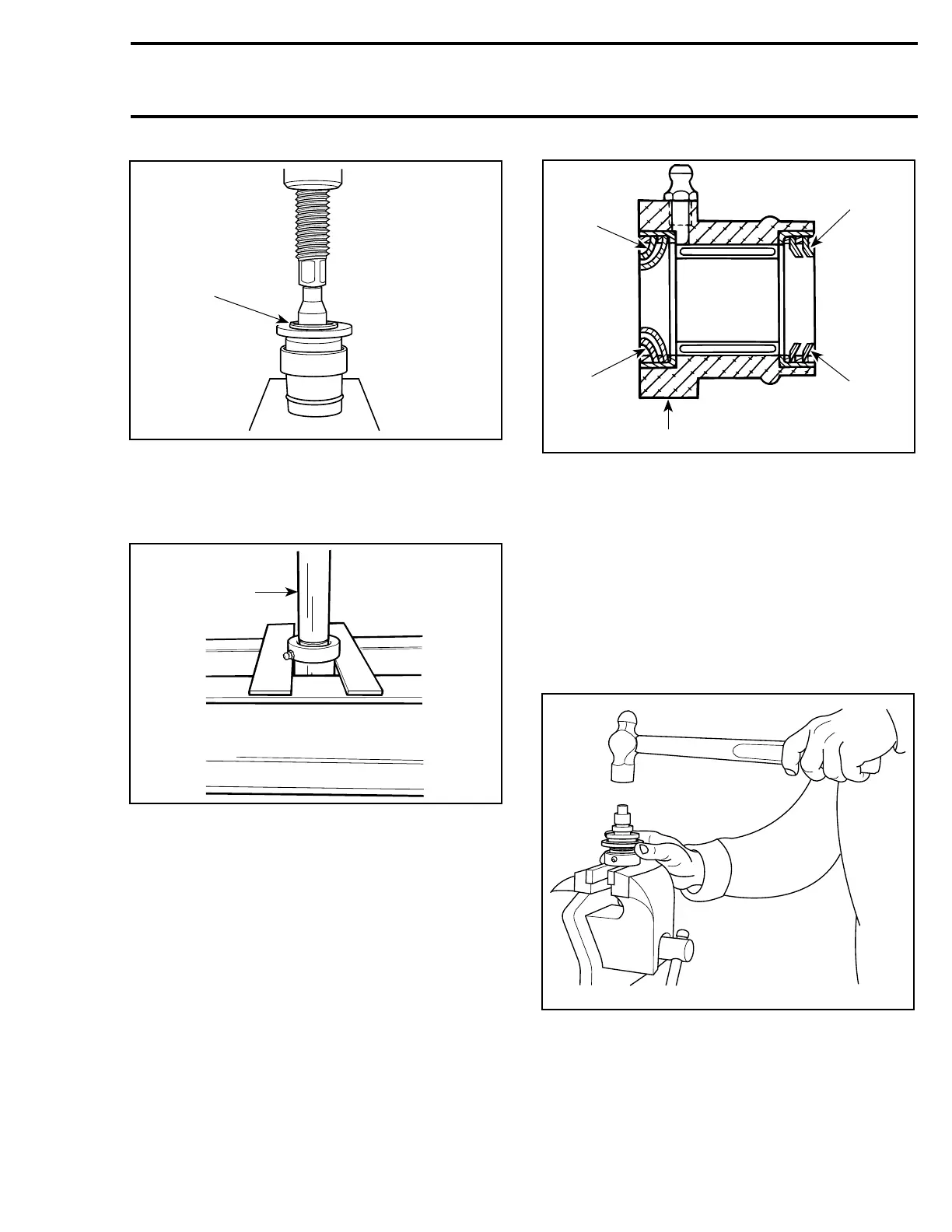

1. Press bearing in its housing
NOTE: Bearing can also be installed with the same
driver used at disassembly. Center bearing in lon-
gitudinal axis of housing.
1
F01J2TA
1. Push bearing centered in its housing
Install double-lip seal no. 18 with protector toward
jet pump.
On both seals no. 18, raised edge of lip must be
located outwards of seal carrier.
F01J2FA
2
1
3
4
3
TYPICAL
1. Double-lip seal toward engine
2. Double-lip seal with protector toward jet pump
3. Raised edge of lip outwards
4. Seal carrier
Apply Loctite 518 (P/N 293 800 038) all around
seals outside diameter.
Seals no. 18 can be carefully installed in housing
using the bearing/seal installer tool (P/N 295 000
107).
Push seals until tool comes in contact with hous-
ing.
F01J1YA
TYPICAL
Pack seals and bearing with synthetic grease
(P/N 293 550 010).
smr2005-063 263
