Section 10 STEERING SYSTEM

Subsection 03 (OFF-THROTTLE ASSISTED STEERING (O.T.A.S.))

The procedure consists of manually pushing the

solenoid rod (which pulls the throttle cable and

activates the throttle plate) while reading the TPS

opening or resistance value depending on the tool

used.

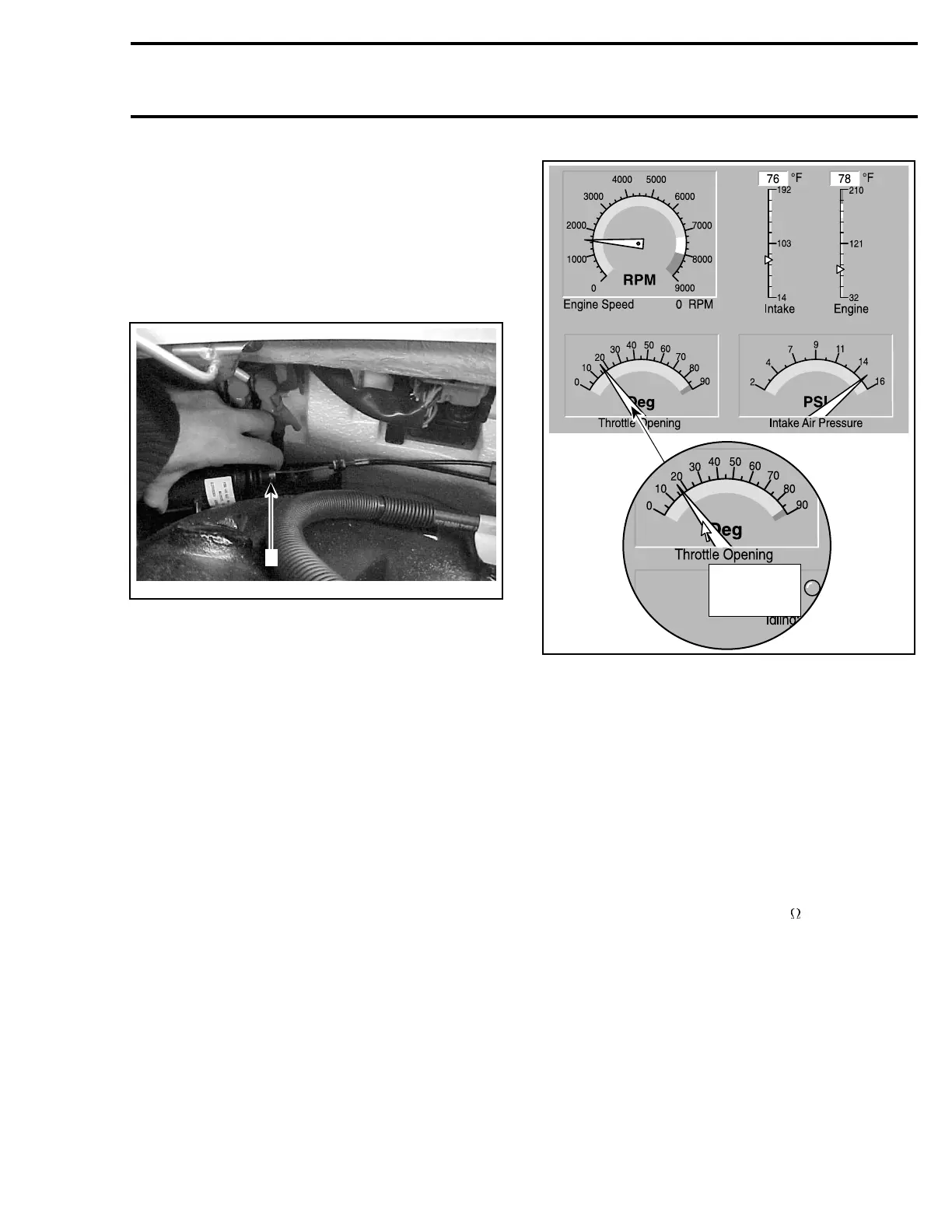

Fully push the solenoid rod in and HOLD (simulat-

ing the electrical activation) while reading the val-

ue.

F22H0AA

1. Push and HOLD solenoid rod

Use B.U.D.S. with the Vehicle Communication

Kit (VCK) (P/N 529 035 981) and look in Throttle

Opening under Monitoring tab.

Position and hold the mouse pointer over the nee-

dle of the throttle opening to get the actual value.

The value should be 17.3% +/-1. If not, adjust ca-

ble at solenoid bracket to get the value.

F22H0HA

Value= 17.3%

MIN=

MAX=

Throttle Opening

THROTTLE OPENING GAUGE IN BUDS

If B.U.D.S. is not available, resistance can be mea-

suredwithanohmmeteronwiresgoingtothe

TPS.

Disconnect the AMP connector no. 4 from the

VCM.

Measure and note resistance between pins 4 and

11 of TPS wiring while at the idle position.

Push in solenoid rod and HOLD. Measure resis-

tance again.

Adjust cable at solenoid bracket to get an in-

creased resistance value of 165

smr2005-068 313
