Section 03 ENGINE SYSTEM
Subsection 02 (EXHAUST SYSTEM)
1

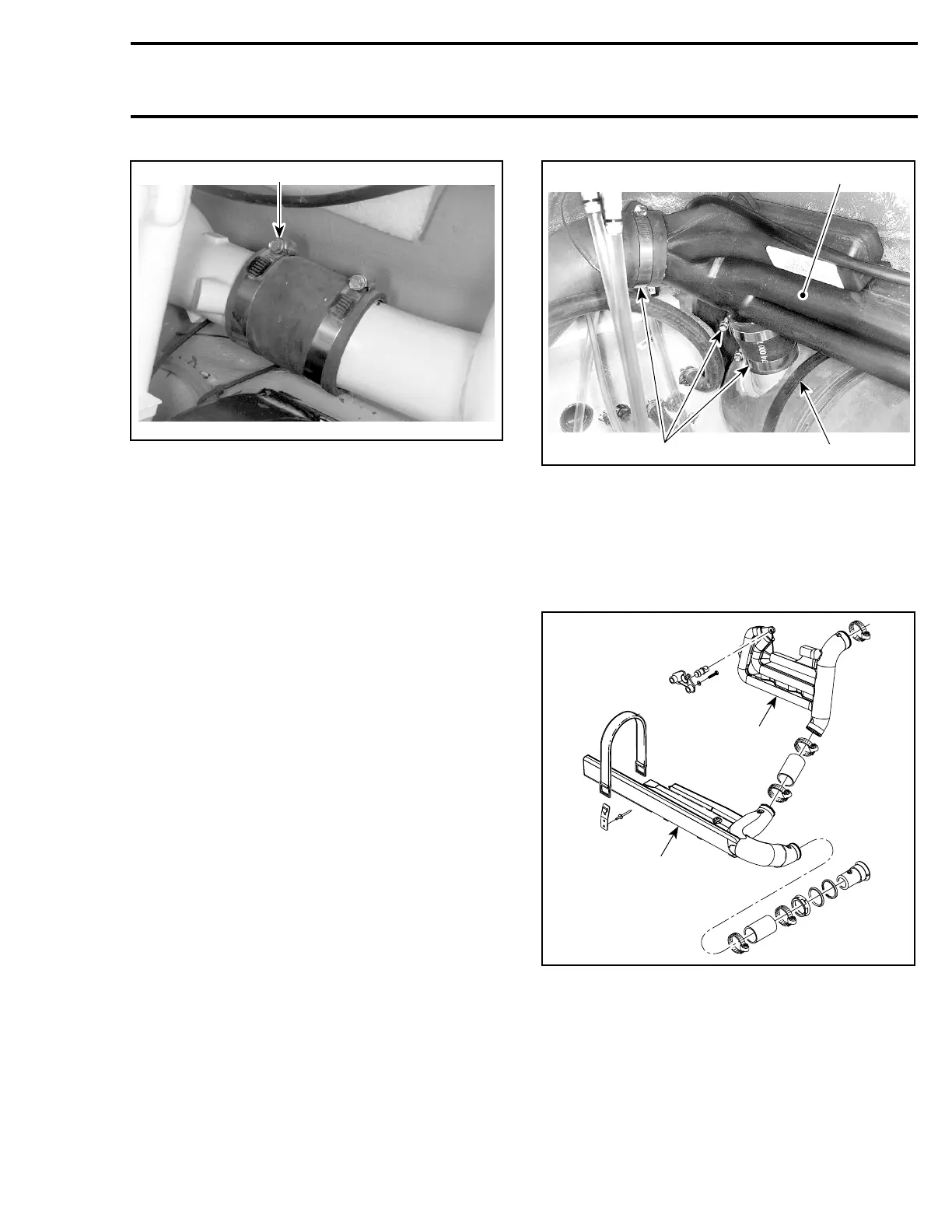

F06D14A
1. Loosen clamp
Remove screws no. 7 and washers no. 9 at tuned
pipe head flange.
Remove screw no. 6 and screw no. 20 retaining
tuned pipe to supports.
Remove tuned pipe from watercraft.
Exhaust Manifold
For removal procedure of the exhaust manifold
no. 14, refer to the 717/787 RFI ENGINE SHOP
MANUAL.
Resonators
GTI Models
Remove vent tube support.
Upper Type Resonators
Detach resonator from body.
Loosen clamps and disconnect hoses. Withdraw
resonator from watercraft.
2
1
3
F07L1DA
TYPICAL
1. Loosen hose clamps
2. Upper type resonator
3. Muffler holding strap
Footwell Type Resonators
NOTE: GTI RFI and GTI RFI LE areequippedwith
both types of resonators.
F07L1EA
2
1
TYPICAL
1. Footwell type resonator
2. Upper type resonator
Loosen clamps retaining exhaust hose going from
resonator to muffler.
Loosen clamps retaining exhaust hose to exhaust
outlet.
smr2005-048 47
