SeaDoo 3D User Manual

Section 04 LUBRICATION SYSTEM
Subsection 01 (OIL INJECTION SYSTEM)
2
1
smr2005-050-003_a

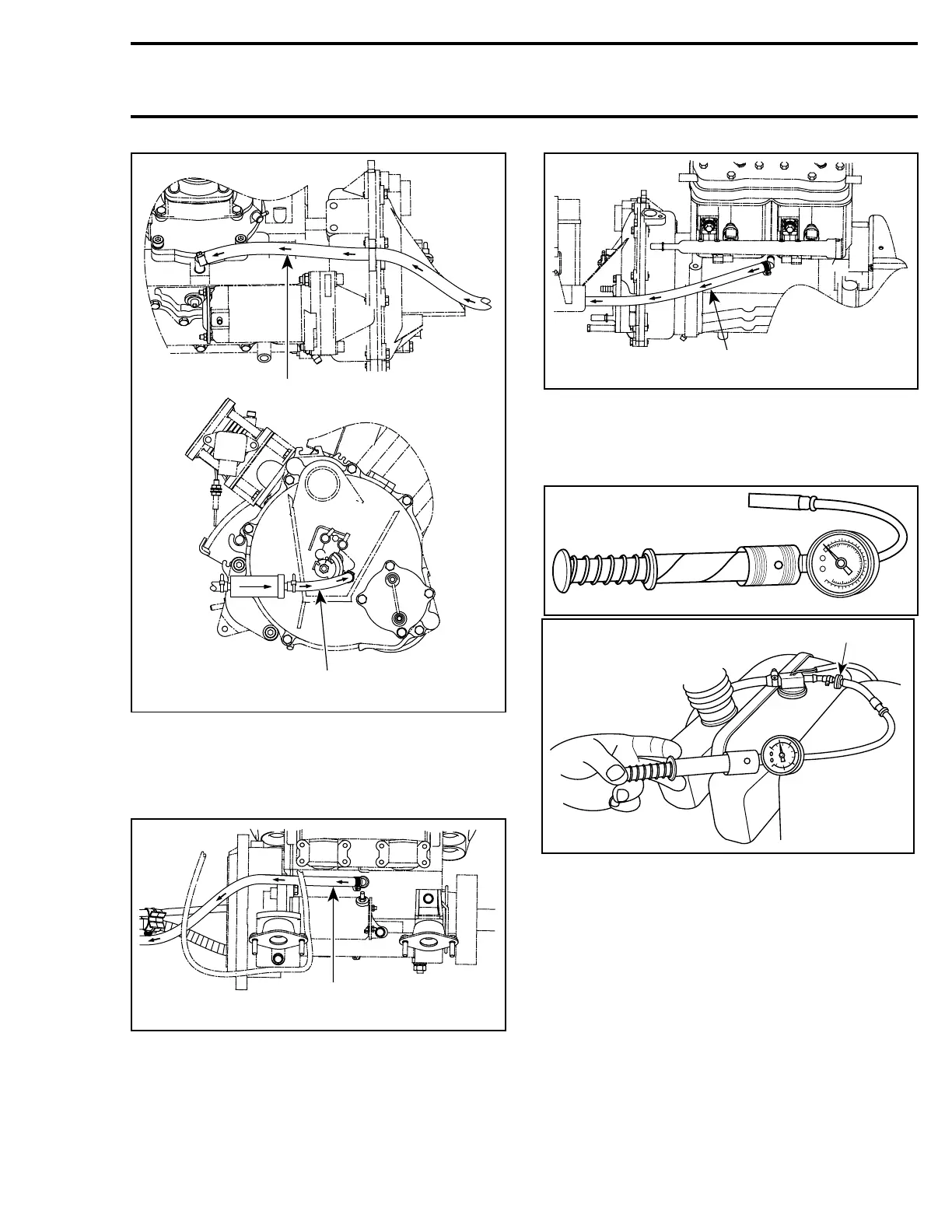

787 RFI ENGINES — FRONT AND RH SIDE OF ENGINE
1. Rotary valve shaft oil supply hose
2. Oil injection pump supply hose
– Install a hose pincher to rotary valve shaft oil
return hose.
1
smr2005-050-004_a
717 ENGINES — LH SIDE OF ENGINE
1. Rotary valve shaft oil return hose
1
smr2005-050-005_a
787 RFI ENGINES — LH SIDE OF ENGINE
1. Rotary valve shaft oil return hose
Connect the pump gauge tester (P/N 295 000 114)
to oil injection reservoir vent check valve.
35
4
3
25
2
15
1 5
60
50
40
30
20
10
295000114
1
F01G0IA
TYPICAL
1. Connect pump to check valve
– Pressurize oil system to 21 kPa (3 PSI). The
system must maintain a pressure for at least 10
minutes. Never pressurize over 21 kPa (3 PSI)
– If pressure is not maintained, locate leak and
repair/replace component leaking. To ease leak
search spray a solution of soapy water on com-
ponents, bubbles will indicate leak location.
CAUTION: If any leak is found, do not start the
engine and wipe off any oil l
eakage.
Disconnect pump gauge tester and remove hose
pinchers.
smr2005-050 75
www.SeaDooManuals.net

SeaDoo 3D Specifications

General

Manufacturer	Sea-Doo
Model	3D
Engine	Rotax 947
Horsepower	130 hp
Category	Personal Watercraft
Engine Type	2-stroke
Width	46.5 inches
Seating Capacity	1 person
