Shihlin electric SE3 Series User Manual

Analog input and output parameter group 02
PARAMETER DESCRIPTION 105
voltage
10V
60Hz
0Hz
60Hz
Reverse
rotation area
Forward
rotation area
5V-10V -5V
02-09P.38)=60Hz Max operation frequency
02-12(P.192)=0V, 02-13(P.193)=10V The
minimum/maximum input positive voltage of terminal 2-5
02-14(P.194)=-100%,02-15( P.195)=100% The setting
corresponding to the minimum/maximum positive voltage
of terminal 2-5
02-18(P.510)=-100%, 02-19(P.511)=100% The setting
corresponding to the minimum/maximum negative voltage
of terminal 2-5
02-16(P.512)=0V,02-17( P.513)=10V The
minimum/maximum input negative voltage of terminal 2-5
02-11(P.139) = 0% The bias rate of 2-5 voltage signal

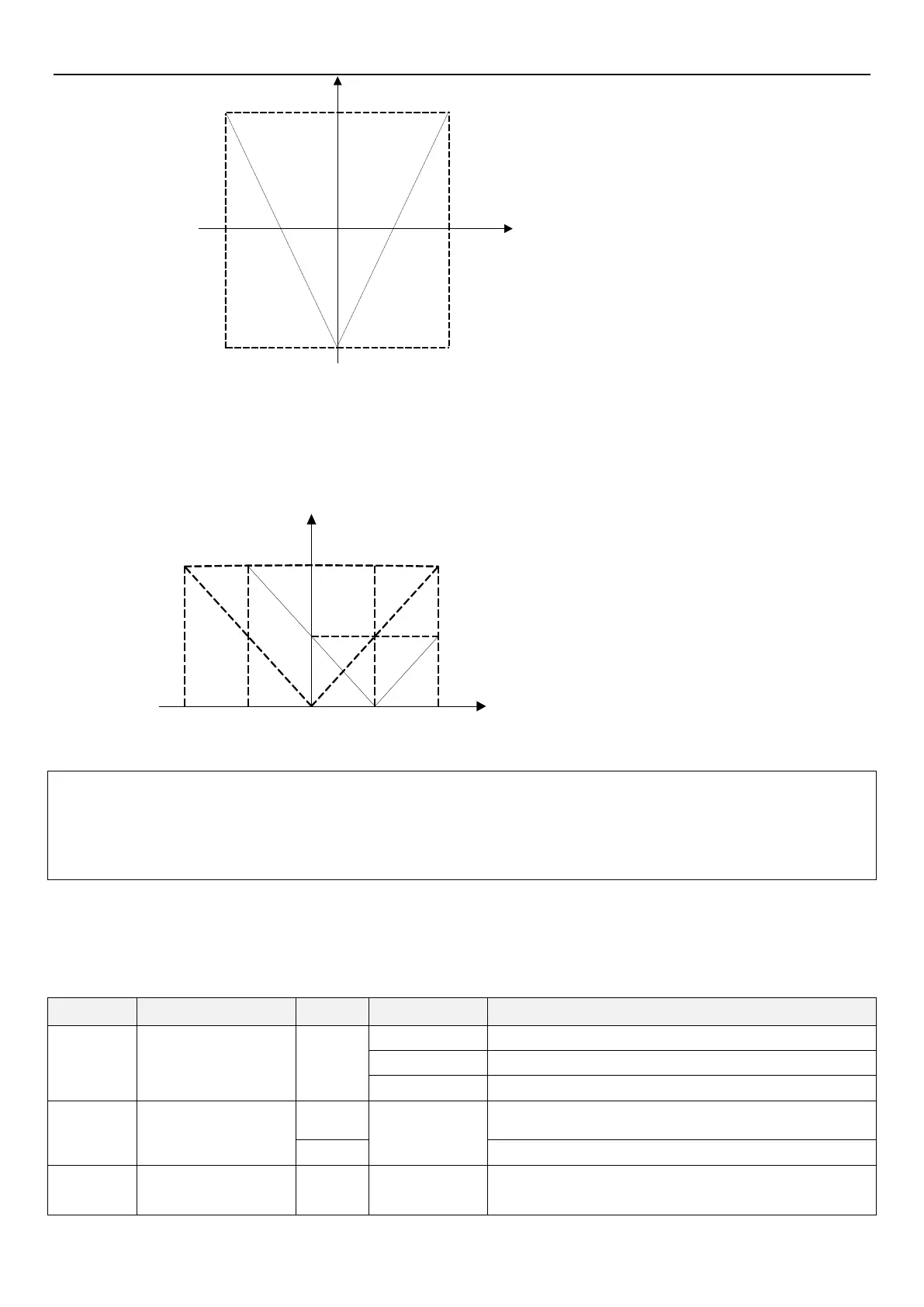

Example 10: This example is the application with bias voltage. The bias voltage is set by 02-11. When 02-11=0%,
there is no bias voltage; When 02-11>0%, there is the positive bias voltage; When 02-11<0%, there is
the negative voltage.
02-09P.38)=60Hz Max operation frequency
02-12(P.192=0V, 02-13P.193=10V The minimum/maximum
input positive voltage of terminal 2-5
02-14P.194=0%, 02-15P.195=100% The setting corresponding
to the minimum/maximum positive voltage of terminal 2-5
02-18(P.510)=0%, 02-19(P.511)=100% The setting corresponding to the
minimum/maximum negative voltage of terminal 2-5
02-16(P.512=0V, 02-17P.513=10V The minimum/maximum
input negative voltage of terminal 2-5
02-11P.139 = 50% The bias rate of 2-5 voltage signal
60Hz
10V-10V 5V-5V 0
30Hz
Note: 1. Above is only an example of 02-00 = 1. and the same applies when 02-00 is another non-zero value. For
details, refer to the description of 02-00.
2. If use 02-08 to select 2-5 terminal voltage signal sampling range, it will affect the relevant value in section 5.3.5
parameter group of the 2-5 terminal input signal..
5.3.6 Terminal 4-5 signal selection and processing
 Choose terminal 4-5 signal specifications, frequency compensation function, and signal polarity .etc.
Parameter
Name
Default
Setting Range
Content
02-20
P.17
Terminal 4-5 signal
range selection
0
0
Signal sampling range from 4~20mA.
1
Signal sampling range from 0～10V.
2
Signal sampling range from 0～5V.
02-21
P.39
Terminal 4-5 maximum
operation frequency
50.00Hz
1.00～650.00Hz
50Hz system (00-24(P.189)=1)
60.00Hz
60Hz system (00-24(P.189)=0)
02-22
P.528
Terminal 4-5 filter time
30ms
0～2000ms
---
