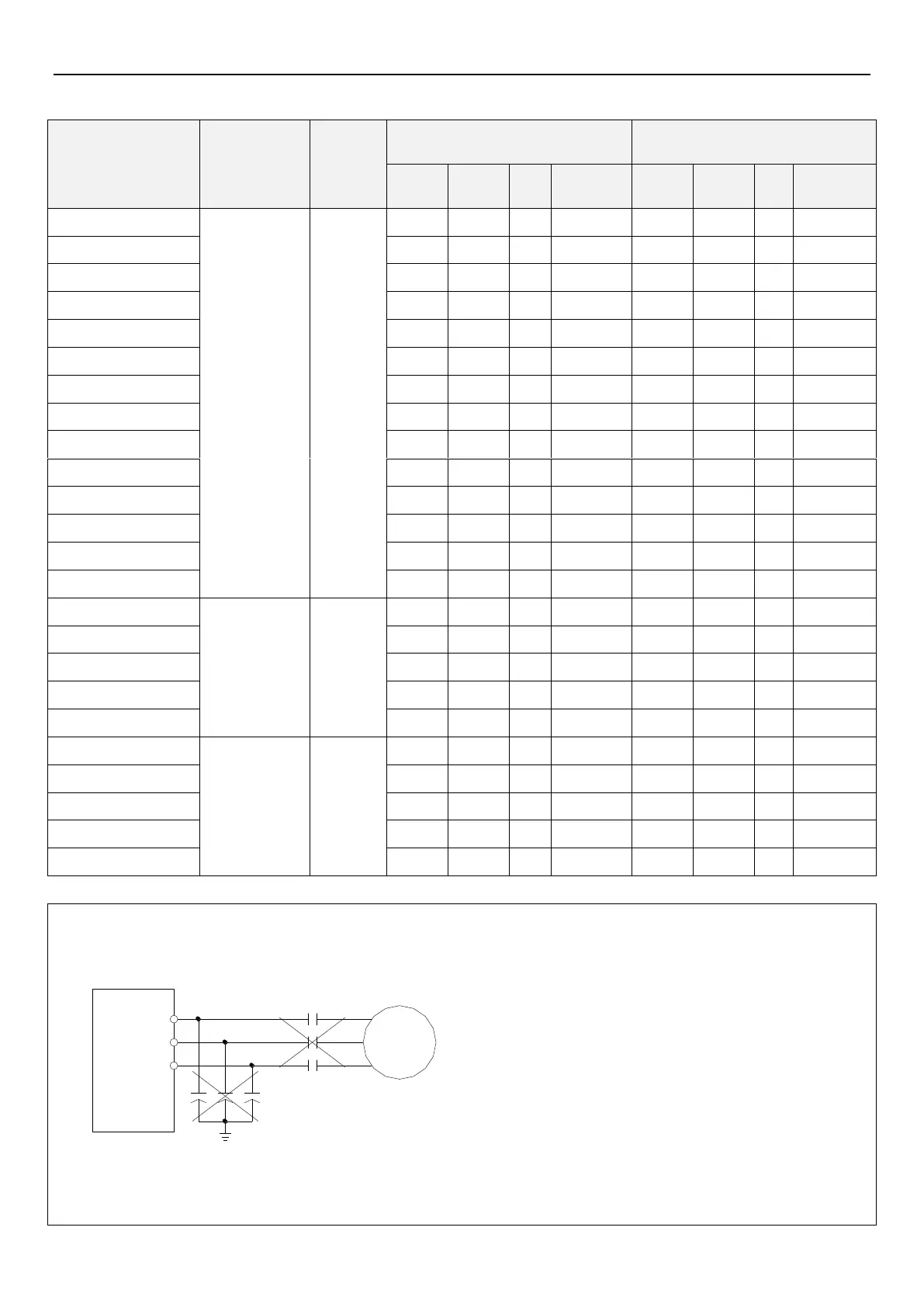

Arrangement of control terminal
INVERTER INTRODUCTION 38
3.7.2 Main circuit wiring and terminal specification
Inverter model
Terminal
screw
specifications
Tightening
torque
(Kgf.cm)
Recommended wiring specification
(mm2)
Recommended wiring specification
(AWG)
R,S,T
U,V,W
+/P,
P1
Grounding
Cable
R,S,T
U,V,W
+/P
,P1
Grounding
Cable
SE3-021-0.4k
M3
6~8
2.5
2.5
2.5
2.5
14
14
14
14
SE3-021-0.75k
2.5
2.5
2.5
2.5
14
14
14
14
SE3-023-0.4k
2.5
2.5
2.5
2.5
14
14
14
14
SE3-023-0.75k
2.5
2.5
2.5
2.5
14
14
14
14
SE3-023-1.5k
2.5
2.5
2.5
2.5
14
14
14
14
SE3-043-0.4K
2.5
2.5
2.5
2.5
14
14
14
14
SE3-043-0.75K
2.5
2.5
2.5
2.5
14
14
14
14
SE3-043-1.5K
2.5
2.5
2.5
2.5
14
14
14
14
SE3-021-1.5k
6
6
6
6
10
10
10
10
SE3-021-2.2k
6
6
6
6
10
10
10
10
SE3-023-2.2k
4
4
4
4
12
12
12
12
SE3-023-3.7K
6
6
6
6
10
10
10
10
SE3-043-2.2K
2.5
2.5
2.5
2.5
14
14
14
14
SE3-043-3.7K
2.5
2.5
2.5
2.5
14
14
14
14
SE3-023-5.5k
M4
15~18
10
10
10
10
8
8
8
8
SE3-023-7.5k
10
10
10
10
8
8
8
8
SE3-043-5.5K
6
6
6
6
10
10
10
10
SE3-043-7.5K
6
6
6
6
10
10
10
10
SE3-043-11K
10
10
10
10
8
8
8
8
SE3-023-11k
M5
18~20
25
25
25
25
4
4
4
4
SE3-023-15k
25
25
25
25
4
4
4
4
SE3-043-15K
10
10
10
10
8
8
8
8
SE3-043-18.5K
16
16
16
16
6
6
6
6
SE3-043-22K
25
25
25
25
4
4
4
4
Note: 1.Do not connect power wire to motor terminals (U/T1) - (V/T2) - (W/T3) on inverter, otherwise it will cause
damage.
2. Do not add phase capacitor, surge absorber or magnetic contactor on the output of the inverter.
U/T1
V/T2
W/T3
Inverter
Electromagnetic
contactor
Motor
Phase
capacitor
3. Do not use the "magnetic contactor" or "no fuse switch" to start and stop the motor.
4. Please do grounding for the inverter and motor to avoid electric shock.
5. For specifications of no-fuse breaker and magnetic contactor, please refer to section 3.6.2.
