Replacement procedure of fan
INVERTER INTRODUCTION 45
3.8 Replacement procedure of fan
3.8.1 Frame A/B
Frame A：SE3-043-0.4~1.5K、SE3-023-0.4~1.5K、SE3-021-0.4~0.75K
Frame B : SE3-043-2.2~3.7K、SE3-023-2.2~3.7K、SE3-021-1.5~2.2K

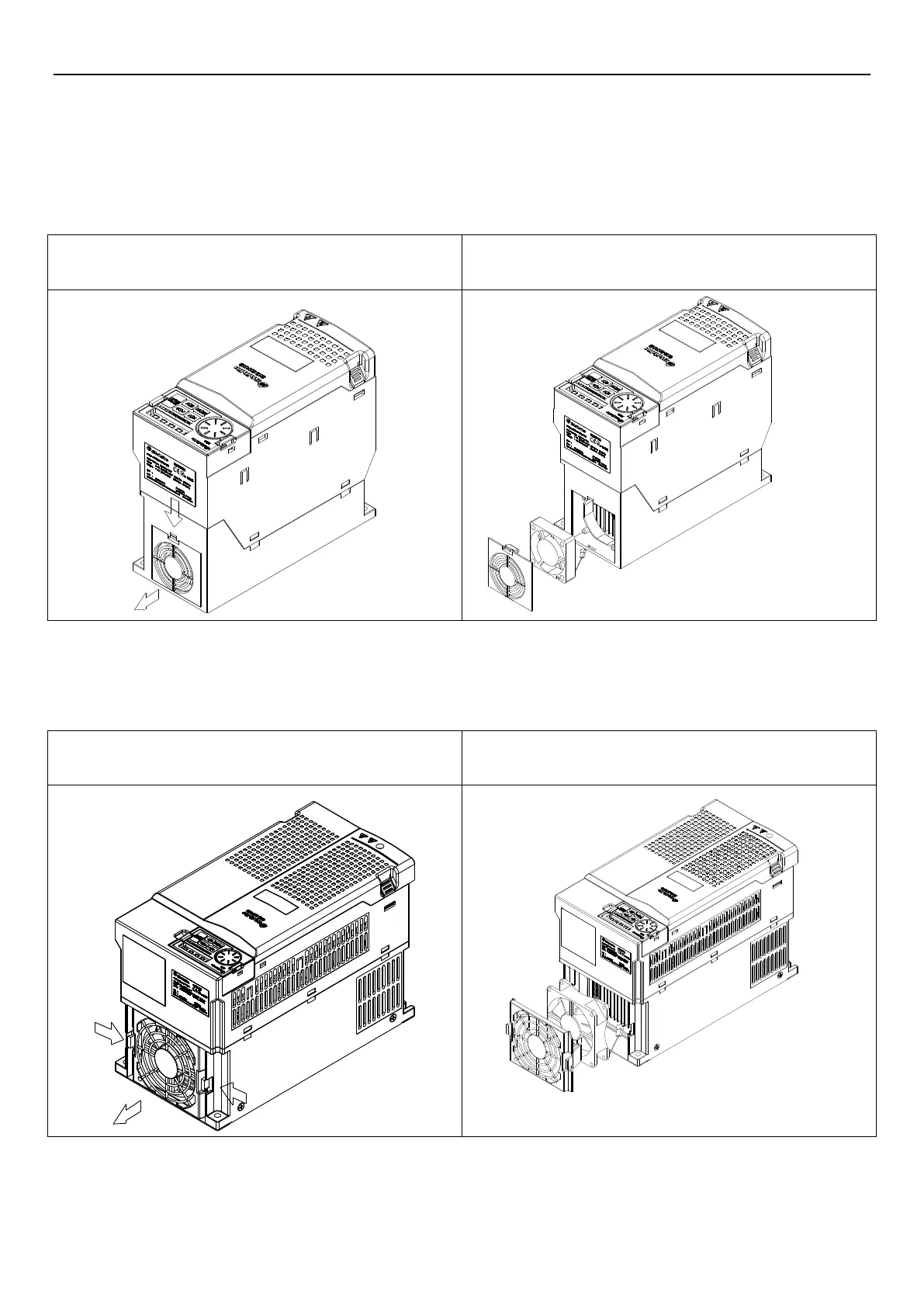

1. Press the hooks on both side of the fan to remove the
fan. (As shown below.)
2. Disconnect the power connector, and then remove the
fan. (As shown below.)
3.8.2 Frame C/D
Frame C：SE3-043-5.5~11K、SE3-023-5.5~7.5K
Frame D : SE3-043-15~22K、SE3-023-11~15K
1. Press the hooks on both side of the fan to remove the
fan. (As shown below.)
2. Disconnect the power connector, and then remove the
fan. (As shown below.)
