Shihlin electric SE3 Series User Manual

Arrangement of control terminal
INVERTER INTRODUCTION 37

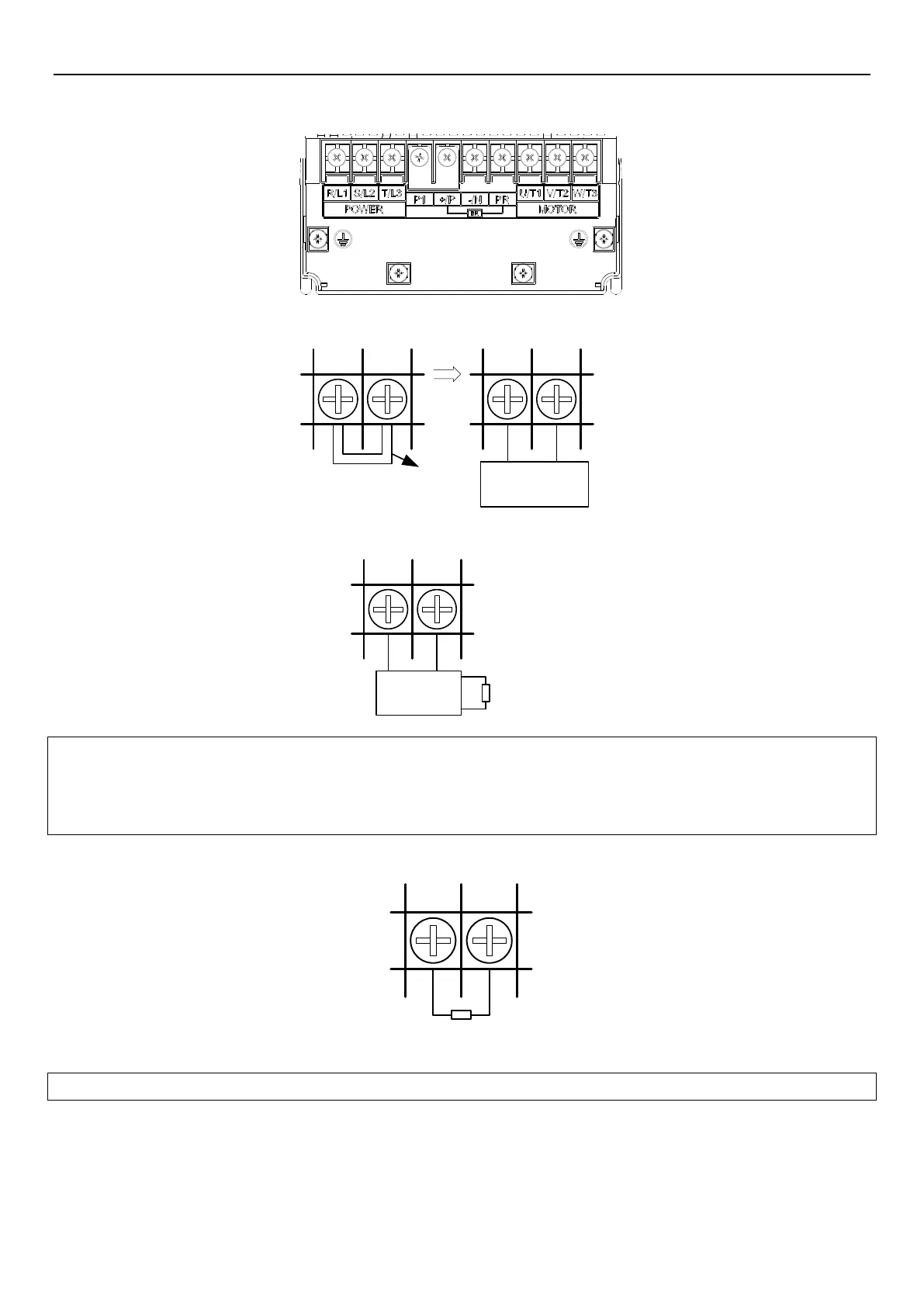

 Frame D
SE3-043-15~22K、SE3-023-11~15K
 DC reactor connection
+/P P1 +/P P1
remove
DC reactor
 Brake unit connection
Brake
uint
+/P -/N
Break
resistance
Note: BKU brake unit and brake resistance are optional for frame C and D. See details in 7.5.6. Refer to section 3.3 for
a description of the framework.
* 1. Frame C: SE3-043-5.5 ~ 11K, SE3-023-5.5 ~ 7.5K
* 2. Frame D: SE3-043-15 ~ 22K, SE3-023-11 ~ 15K
 Brake resistor connection
+/P
PR
Brake resistance
Note: For frame A,B,C and D inverters. Please refer to Section 3.3 for instruction on the frames.
