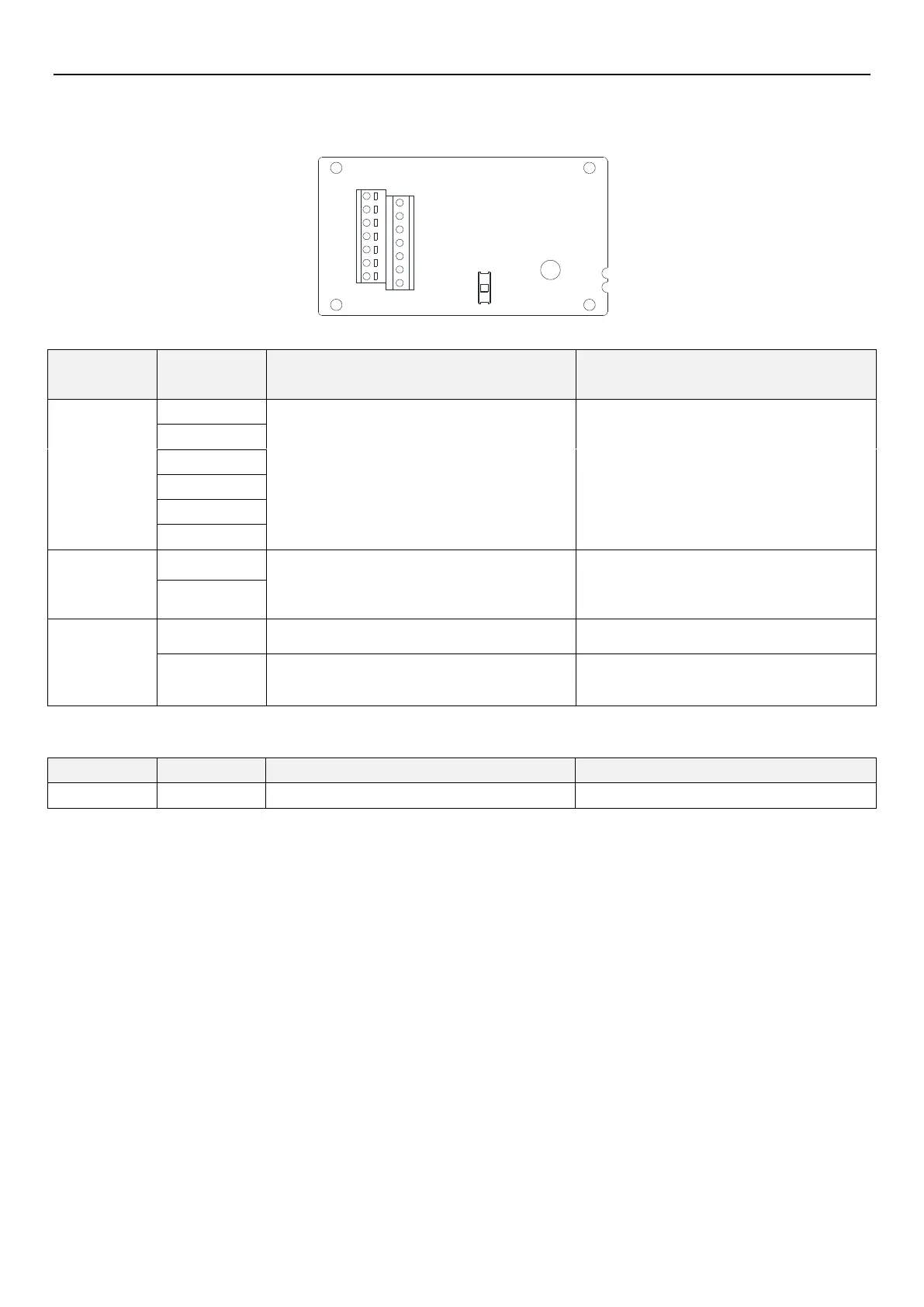

7.5.2 I/O card
 EB362R
A10
C10
M10
M12
M14
PC
A11
C11
M11
M13
M15
SD
Terminal form
Terminal
name
Function instructions
Terminal specification
Switch signal
input
M10
There are totally 6 multi-function expanded
control terminals. (Sink/Source can be
switched)
Input impedance: 4.7 kΩ
Action current: 5mA
Voltage range: 10~28VDC
Maximum frequency: 1kHz
M11
M12
M13
M14
M15
Relay output
A10, C10
Multi-function relay outputs 2 groups;
A-C is normal open contact
Maximum voltage: 30VDC or 250VAC
Maximum current: Resistive load: 5A NO
Inductive load: 2A NO
(cosΦ=0.4)
A11, C11
Public terminal
SD
The common terminal of Terminal
M10~M15(SINK).
----
PC
The common terminal of Terminal M10~M15
(SOURCE).
Output voltage: 24VDC±20%
Maximum current: 200mA(share with control
board)
 Ordering code:
NO.
Type
Name
Ordering Code
1
EB362R
EB362Rcard
SNKEB362R
Note: In order to install the expansion card, you need to purchase the expansion card installation accessory
(SNKCMK301) at the same time.
