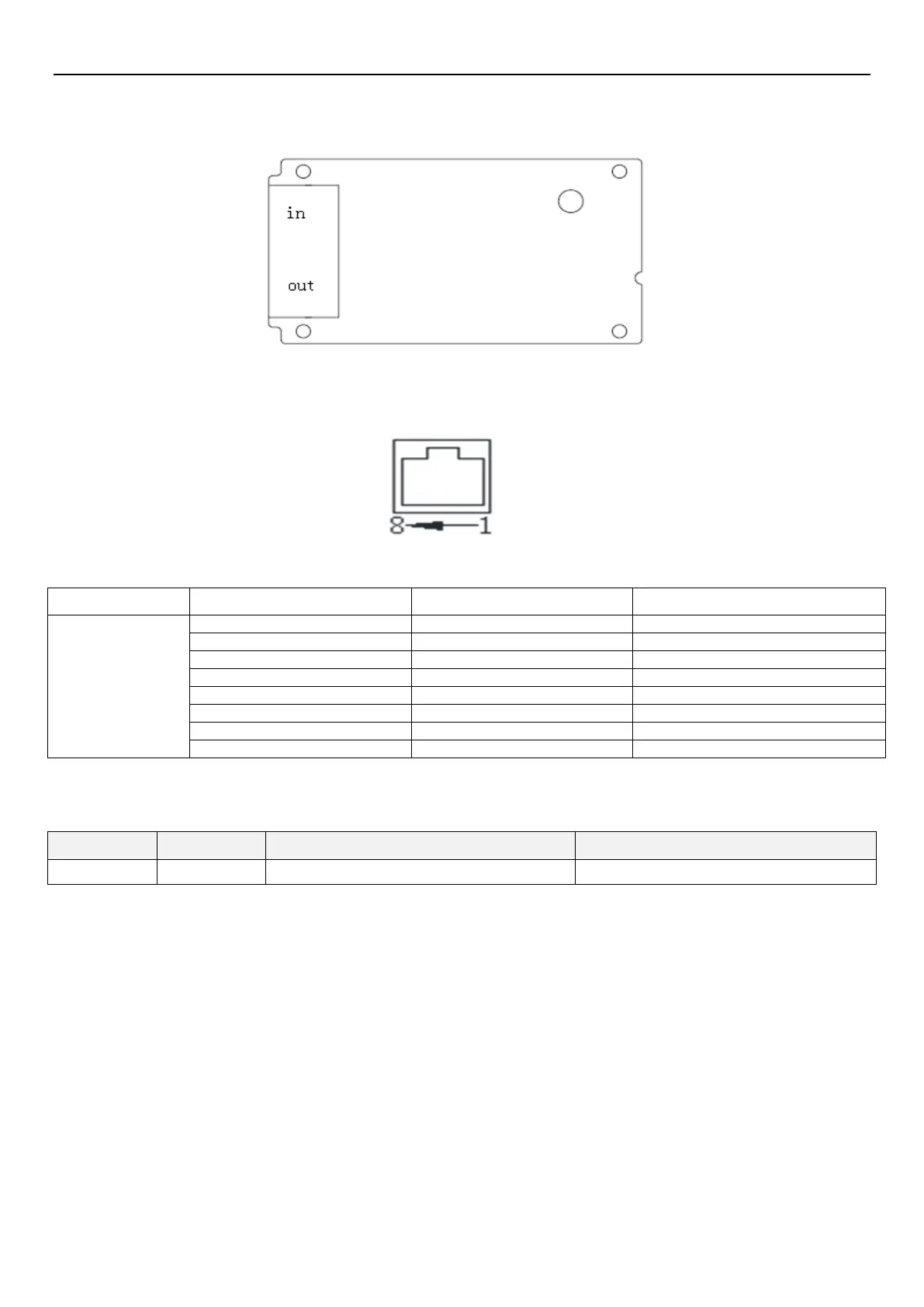

EC301：EtherCAT card
 Electric specification
Terminal form
Terminal name
Function name
Description
RJ45
1
Tx+
transmit data +
2
Tx-
transmit data -
3
RX+
Receive data +
4
---
---
5
---
---
6
RX-
Receive data +
7
---
---
8
---
---
 Ordering code:
NO.
Type
Name
Ordering Code
1
EC301
EC301 card
SNKEC301
Note: For EC301 to run normally, the software version of the inverter control board must be higher than V0.110.
