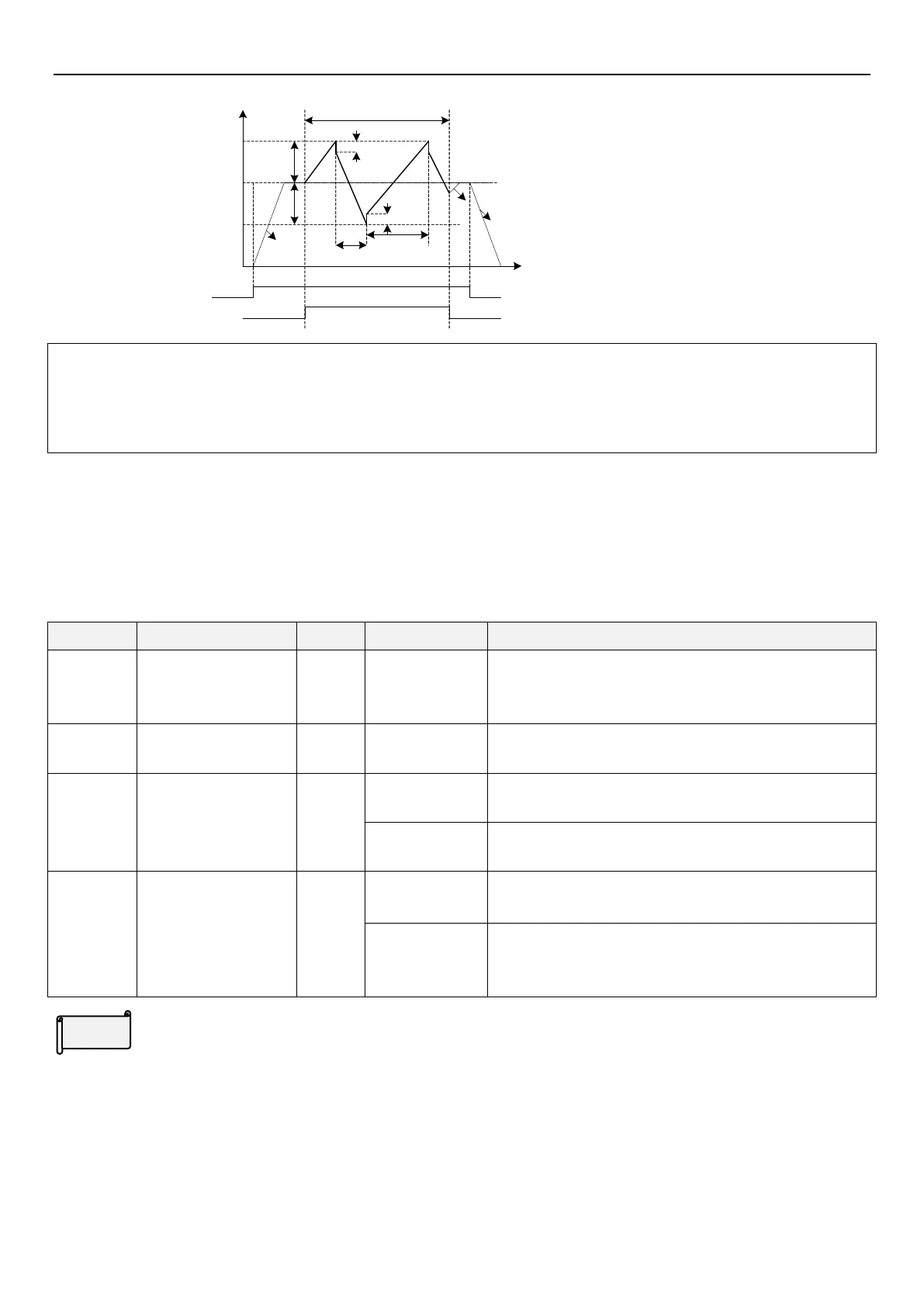

Shihlin electric SE3 Series User Manual

Application parameter group 10
PARAMETER DESCRIPTION 222
f0
f1
f1
f2
f3
triangular wave
operation
STF
TRI
time
10-27
(P.238)
01-06
(p.7)
f0

Setting value of frequency
f1

Generated amplitude for
setting frequency
f0×10-24P.235))
f2

Compensation from acceleration to
deceleration
f3

Compensation from deceleration to
acceleration
Output
frequency
f1×10-25P.236))
f1×10-26P.237))
10-28
(P.239)
01-06
(p.7)
01-07
(p.8)
Note: 1. Output frequency is limited by the upper and lower frequency limits in triangular wave operation.
2. If the values of amplitude compensation 10-25(P.236) and 10-26(P.237), are too large, overvoltage trip and stall
prevention protection will trigger.
3. This function is only valid in V/F mode (00-21(P.300)=0).
5.11.11 Switch to commercial power supply function
 Inverter has built-in switch to commercial power supply function. Magnetic contactor for switching can be
conveniently used by inputting start, stop and automatic switching signal.
Parameter
Name
Default
Setting Range
Content
10-29
P.247
Switch to commercial
supply MC switchover
interlock time
1.0s
0.1～100.0s
---
10-30
P.248
Switch to commercial
supply waiting time
0.5s
0.1～100.0s
---
10-31
P.249
From inverter to
commercial power
supply switchover
frequency
99999
0～60.00Hz
---
99999
Off
10-32
P.250
Automatic switchover
frequency range
99999
0～10.00Hz
After switching from inverter operation to commercial power
supply operation, after inverter start command (STF/STR) is
OFF, switch to inverter operation.
99999
After switching from inverter operation to commercial power
supply operation, after inverter start command (STF/STR) is
OFF, switch to inverter operation, and slow down to stop.
Switch to commercial supply function

10-31(P.249) sets the frequency for switching from inverter operation to commercial supply. From start-up to
10-31(P.249) inverter operation, the output frequency is above 10-31(P.249) value, automatically switching to
commercial supply. 10-31(P.249) set to 99999, without automatic switching.

If 10-32(P.250)≠99999, 10-31(P.249)≠99999 will be valid at automatic switching operation. After switching from
inverter operation to commercial supply, if frequency command is lower than (10-31(P.249)~10-32(P.250)), it will
Setting
