Shihlin electric SE3 Series User Manual

Application parameter group 10
PARAMETER DESCRIPTION 221
S
Start
Stop
Hz
10-20P.231
10-19P.230
Target
frequency
10-22P.233
10-21P.232
Acc/Dec
stopping
function
Three-wire
control
mode
Note: After setting backlash compensation, only the interruption time in acceleration and deceleration time will become
longer.

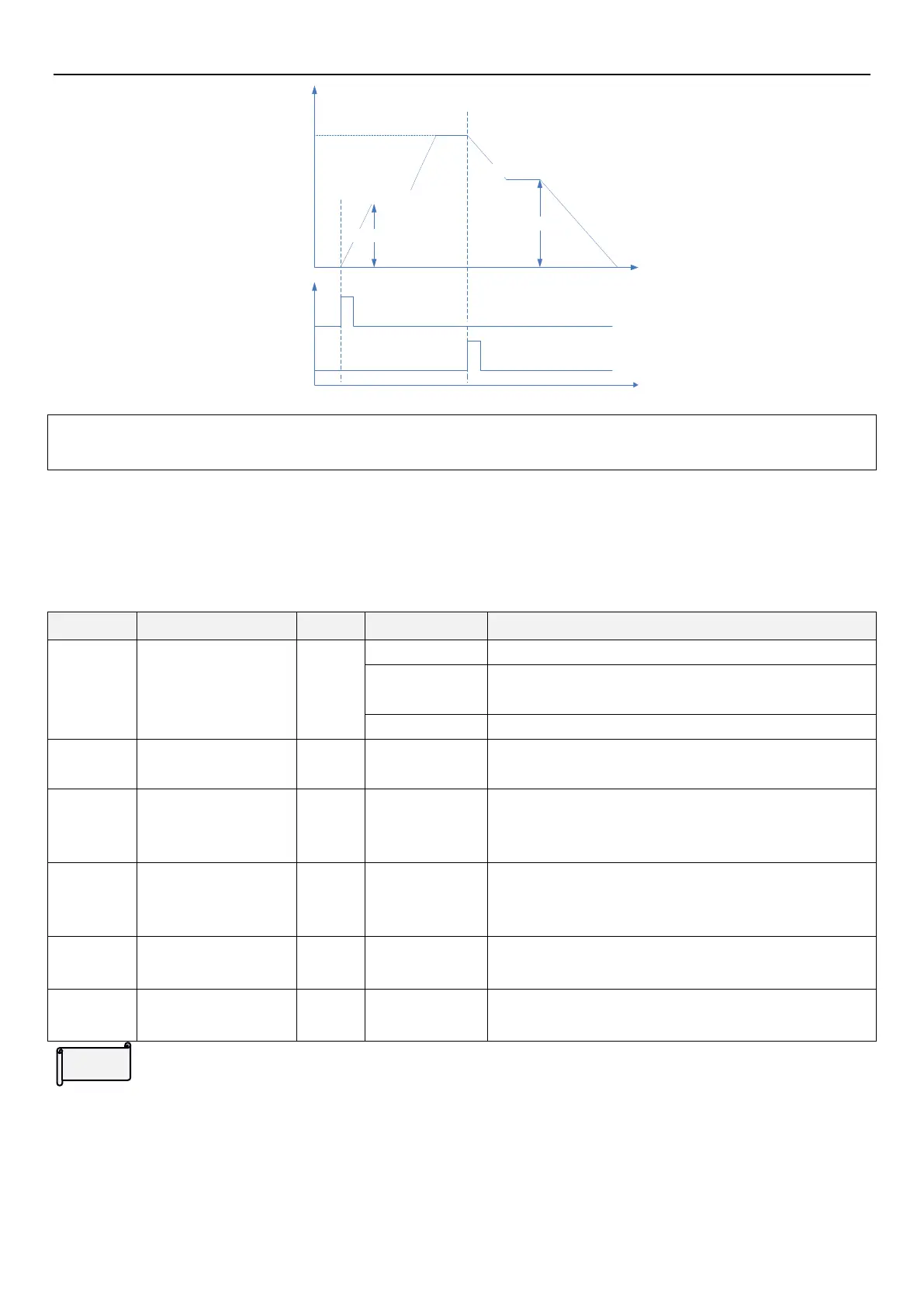

5.11.10 Triangular wave function
V
V
/
/
F
F
 According to a certain period, through triangular wave makes output frequency oscillate.
Parameter
Name
Deafult
Setting Range
Content
10-23
P.234
Triangular wave
function selection
0
0
Off
1
If terminal function TRI is triggered, triangular wave function
will on.
2
Triangular wave function is on at all time.
10-24
P.235
Maximum amplitude
10.0%
0～25.0%
---
10-25
P.236
Amplitude
compensation for
deceleration
10.0%
0～50.0%
---
10-26
P.237
Amplitude
compensation for
acceleration
10.0%
0～50.0%
---
10-27
P.238
Amplitude acceleration
time
10.00s
0～360.00s/
0～3600.0s
When 01-08(P.21)=0, the unit of 10-27(P.238) and
10-28(P.239) is 0.01s.
10-28
P.239
Amplitude deceleration
time
10.00s
0～360.00s/
0～3600.0s
When 01-08(P.21)=1, the unit of 10-27(P.238) and
10-28(P.239) is 0.1s.
Triangular wave function

If 10-23
(P.234)
set to 1, triangular wave function will be on when terminal function TRI is triggered. Please set one
of 03-00~03-05(P.80~P.84、P.86) as “36”, and then give TRI signals to the digital input terminal.

If 10-23
(P.234)
set to 2, triangular wave function will be on at any time.
Setting
