APPENDIX 361

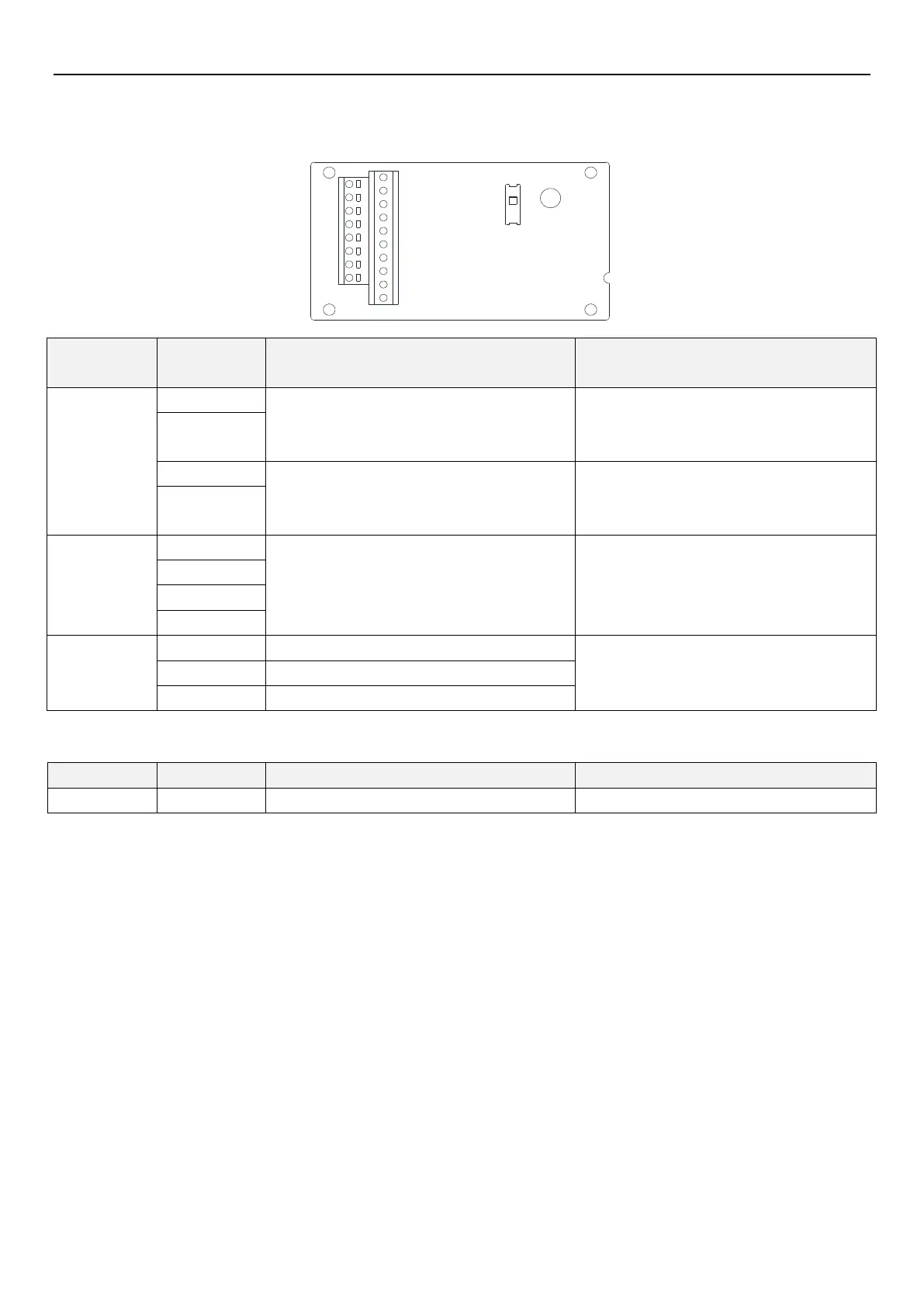

7.5.3 PG card
 PG301C
12V
5V
A1
B1
Z1
A2
B2
A1O
B1O
Z1O
A1
B1
Z1
A2
B2
DCM
Terminal
Terminal
Symbols
Function instruction
Terminal specification
Input
A1、B1、Z1
The input of the encoder signal supports open
collector, voltage, line drive and push-pull input
type.
Maximum frequency: 500KP/Sec
A1
——
、B1
——
、Z1
——
A2、B2
The input of pulse signal connects to the upper
controller and supports open collector, voltage,
line drive and push-pull input type.
Maximum frequency: 500KP/Sec
A2
——
、B2
——
Output
A1O
The open collector dividing frequency output is
1~255 times dividing frequency. The maximum
output current is 50mA.
Maximum frequency: 500KP/Sec
Maximum current: 50mA
It can switch pull-up resistors under different
voltages.
B1O
Z1O
DCM
Power
12V
12V Power
Voltage: ±5%
Current: 200mA MAX
5V
5V Power
DCM
Power grounding
 Ordering code:
NO.
Type
Name
Ordering Code
1
PG301C
PG301Ccard
SNKPG301C
Note: In order to install the expansion card, you need to purchase the expansion card installation accessory
(SNKCMK301) at the same time.
