Shihlin electric SE3 Series User Manual

Appendix 7
REVISION RECORD 360
 EB308R
A10
A11
C1
A14
A15
C3
A12
A13
C2
A16
A17
C4

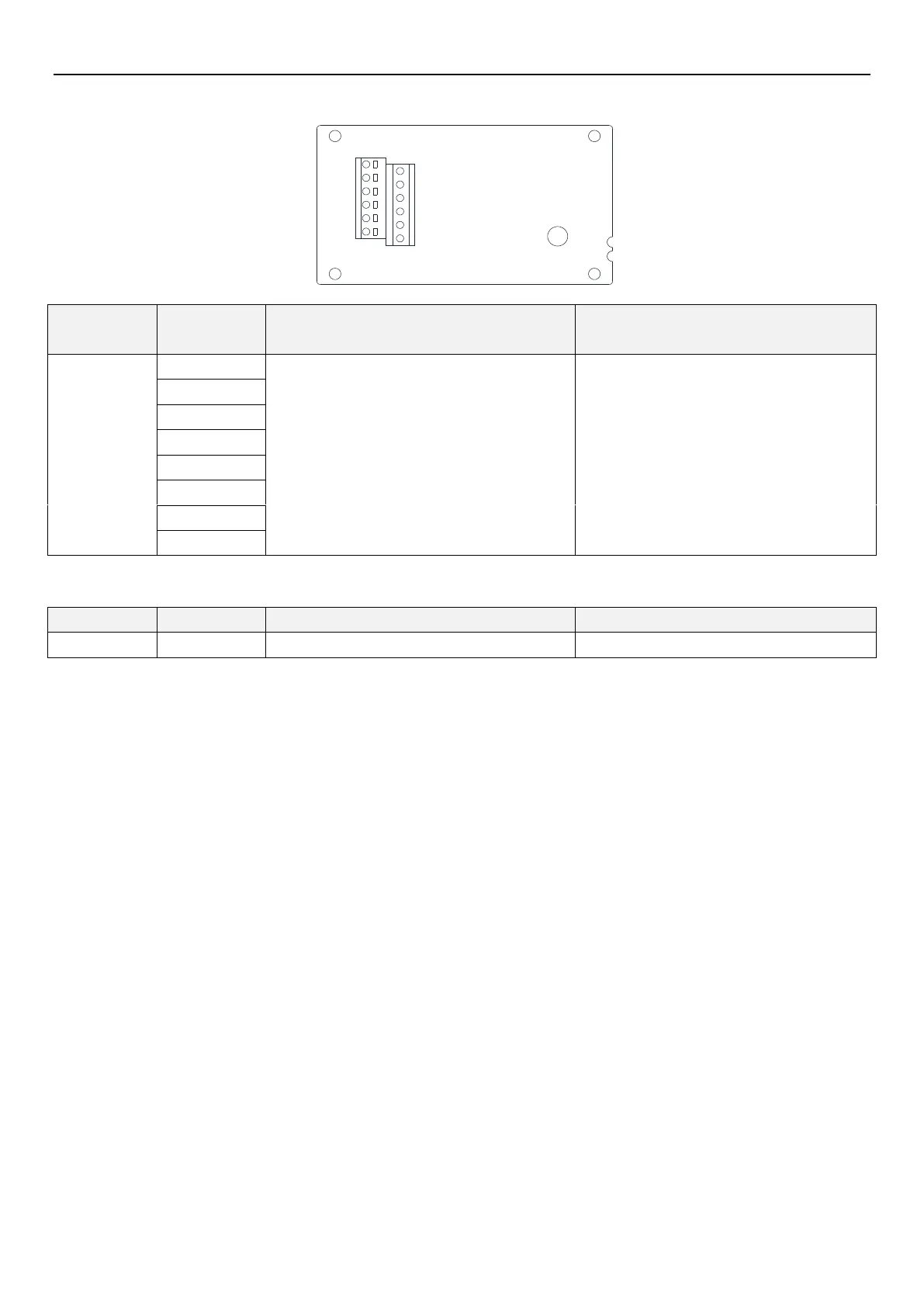

Terminal form
Terminal
name
Function instructions
Terminal specification
Relay outputs
A10, C1
Multi-function relay outputs 8 groups;
A-C is the normally open contact.
Maximum voltage: 30VDC or 250VAC
Maximum current: Resistive load:5A NO
Inductive load: 2A NO
(cosΦ=0.4)
A11, C1
A12, C2
A13, C2
A14, C3
A15, C3
A16, C4
A17, C4
 Ordering code:
NO.
Type
Name
Ordering Code
1
EB308R
EB308Rcard
SNKEB308R
Note: In order to install the expansion card, you need to purchase the expansion card installation accessory
(SNKCMK301) at the same time.
