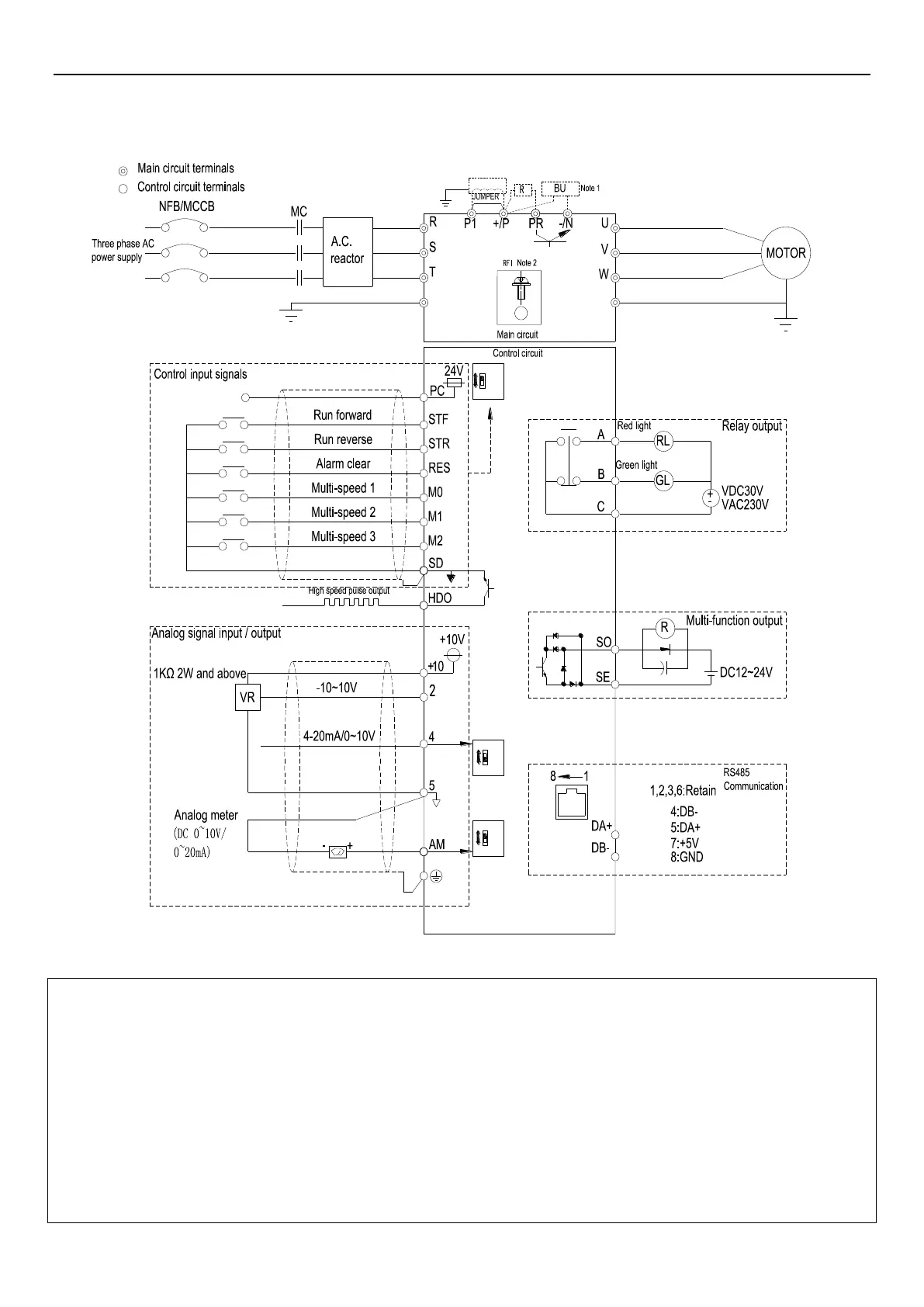

Note: 1: All series includes built-in braking units, please connect braking resistor between + / P, PR.
2: All series inclides built-in RFI filters to suppress electromagnetic interference, but if you need to comply with CE
regulations, please refer to the relevant instructions in the manual for installation.
3: In order to improve the braking ability during deceleration, the frame C / D external braking unit can be connected
between (+ / P)-(-N). For details, please refer to Section 3.7.1.
4: When adding a DC reactor on C / D frame inverter, jumper between + / P and P1 must be removed. For the selection
of reactor, refer to section 3.6.4.
5. Do not short the 10, SD, SE, 5, and PC terminals to each other.
6. Please refer to section 5.3.9 for HDO wiring.
