Shihlin electric SE3 Series User Manual

Inspection item
INSPECTION AND MAINTENANCE272

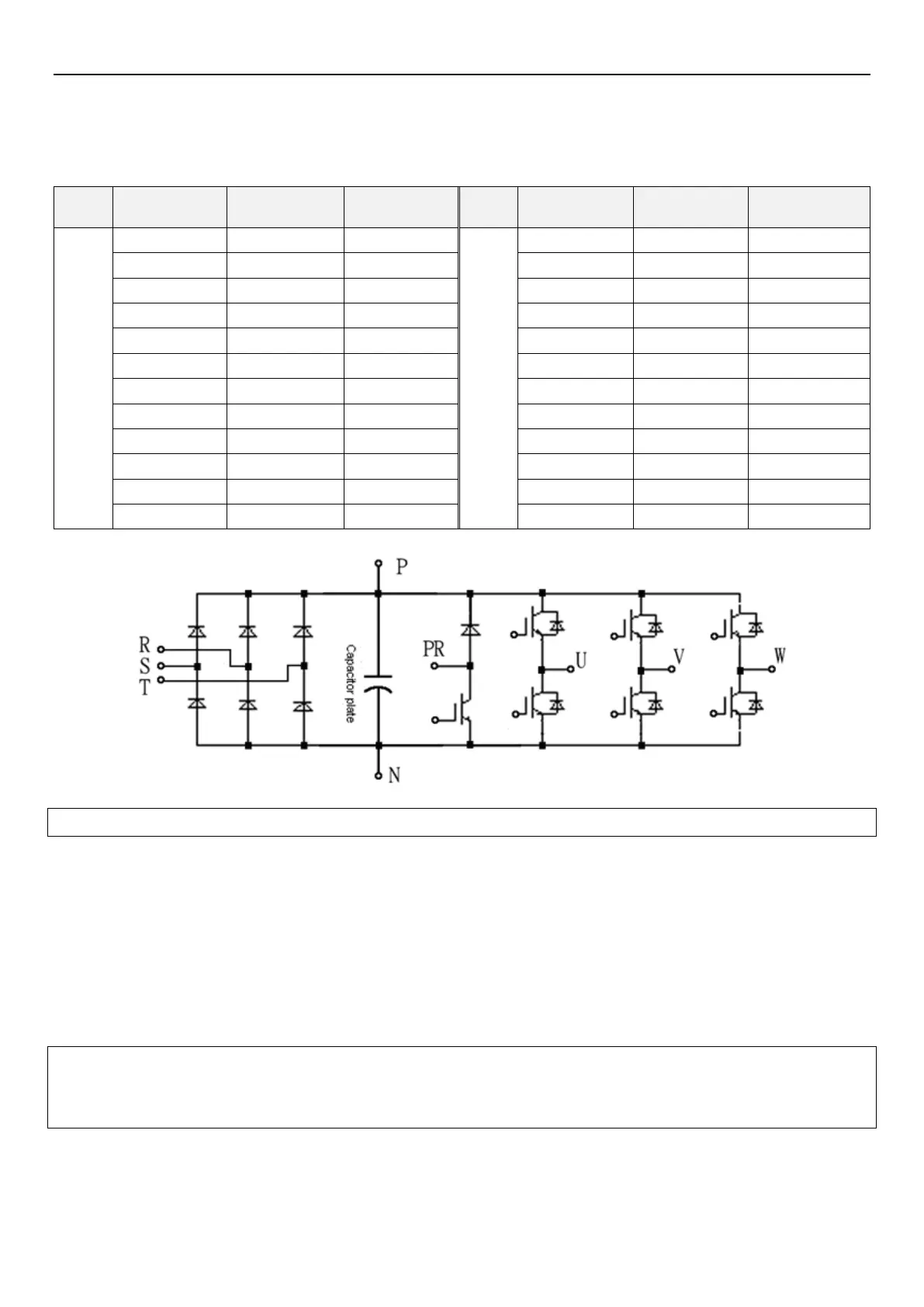

6.1.3 Diodes and IGBT check
 Before checking, first remove the external wiring on main circuit terminals (R/L1、S/L2、T/L3、U/T1、V/T2、W/T3).
Then set the meter to ohm-testing position.
Positive probe
Negative probe
Normal result
Positive probe
Negative probe
Normal result
Terminal
mark
R/L1
+/P
Conductive
Terminal
mark
U/T1
+/P
Conductive
S/L2
+/P
Conductive
V/T2
+/P
Conductive
T/L3
+/P
Conductive
W/T3
+/P
Conductive
+/P
R/L1
Non-conductive
+/P
U/T1
Non-conductive
+/P
S/L2
Non-conductive
+/P
V/T2
Non-conductive
+/P
T/L3
Non-conductive
+/P
W/T3
Non-conductive
R/L1
-/N
Non-conductive
U/T1
-/N
Non-conductive
S/L2
-/N
Non-conductive
V/T2
-/N
Non-conductive
T/L3
-/N
Non-conductive
W/T3
-/N
Non-conductive
-/N
R/L1
Conductive
-/N
U/T1
Conductive
-/N
S/L2
Conductive
-/N
V/T2
Conductive
-/N
T/L3
Conductive
-/N
W/T3
Conductive
Note: The diagram above takes Frame C as an example.
6.1.4 Cleaning
 Always run the inverter in a clean status.
 Use a soft brush to remove dust and dirt on the fan blade, fan cover, and heat sink, keeping inverter in good heat
dissipation.
 Gently wipe dirty areas on the cover with a soft cloth and neutral detergent..
Note: 1. Do not use solvent, such as acetone, benzene, toluene and alcohol to wipe the cover, these will cause
inverter surface paint fall off .
2. Display on keypad (PU302) is vulnerable to detergent and alcohol. Therefore, avoid using them for cleaning.
