Basic parameter group 01
PARAMETER DESCRIPTION 83

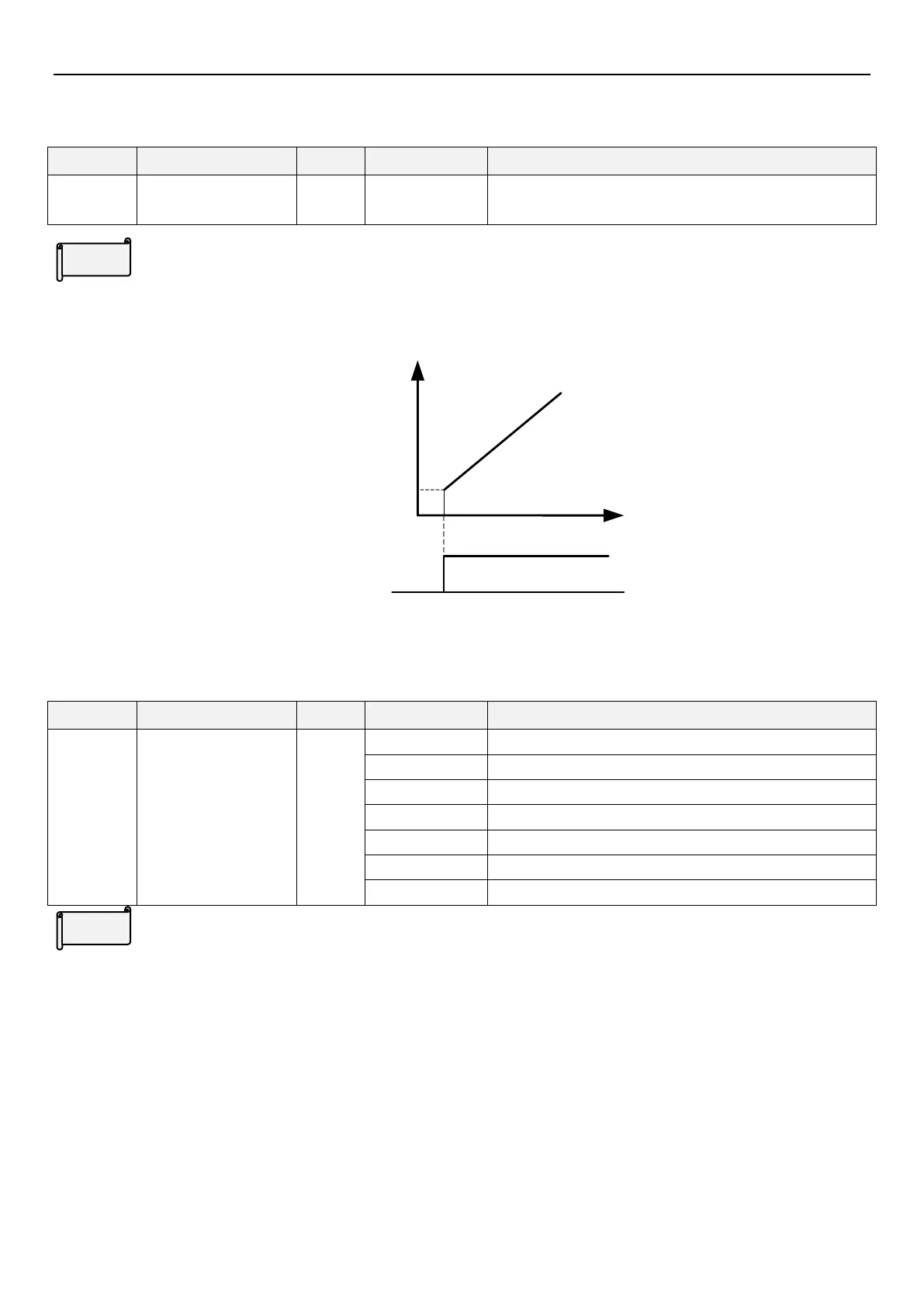

5.2.5 Starting frequency
 When the motor starts up, the instantaneous output frequency of the inverter is called “starting frequency”.
Parameter
Name
Default
Setting Range
Content
01-11
P.13
Starting frequency
0.50Hz
0～60.00Hz
---
Starting frequency
 If target frequency of inverter is lower than 01-11(P.13) value, the motor will not run. When given the start signal to
motor, the output frequency will go up from the value of 01-11(P.13).
ON
01-11
(P.13)
Output
frequency
（Hz）
Startup signal
input
Time
5.2.6 Load pattern selection
V
V
/
/
F
F
 In V/F control, you can choose the best output characteristics for different applications and load.
Parameter
Name
Default
Setting Range
Content
01-12
P.14
Load pattern selection
0
0
For constant torque loads (conveyor belt,etc.)
1
For variable torque loads (fans and pumps, etc.)
2、3
For Lifting loads
4
Multipoint V/F curve
5～13
Special two-point V/F curve
14
V/F complete detached mode
15
V/F semidetached mode
Load pattern selection

When 01-12
(P.14)
＝4, suppose that 01-04
(P.19)
=220V, 01-26
(P.98)
=5Hz, 01-27
(P.99)
=10%, when the inverter is
running at 5Hz, the output voltage equals to 01-04
(P.19)
×01-27
(P.99)
＝220V×10%＝22V.

If RT is “on”, 01-24
(P.46)
“the second torque boost” is valid.
Setting
Setting
