Shihlin electric SE3 Series User Manual

Protection parameter group06

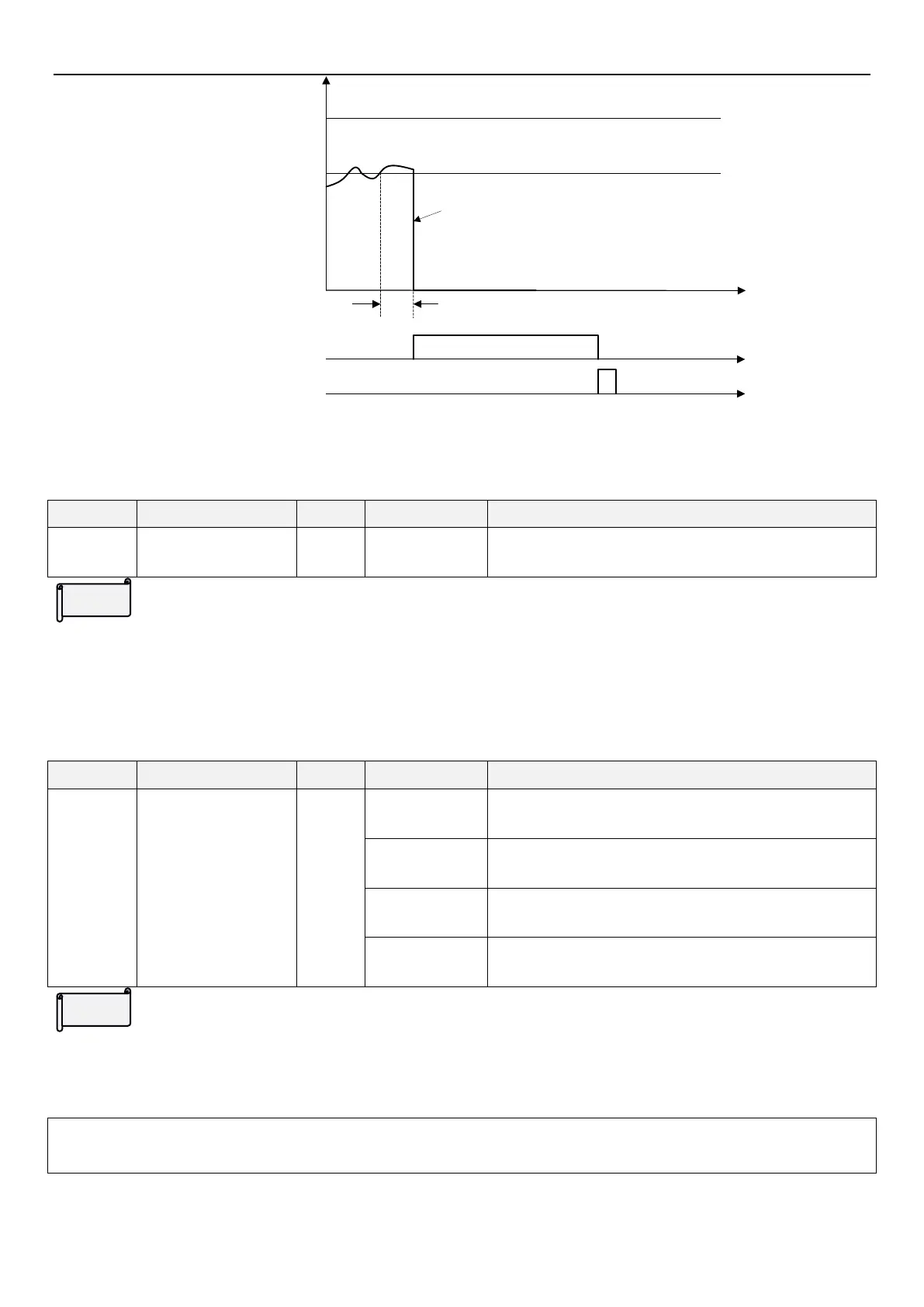

PARAMETER DESCRIPTION 156
100%
P.155
output
P.156
OL
Reset
signal
Output current
(%)
Invertor display the OL2 alarm,and the output
stopped,the motor stopped too.
(Overload alarm)
full load current level
time
5.7.6 Stall level when restart
 It can set stall prevention level when inverter restart through 06-11(P.160).
Parameter
Name
Default
Setting Range
Content
06-11
P.160
Stall level when restart
100.0%
0～150.0%
When restarting, stall prevention operation level.
Stall level when restart
 In restart process, if output current of inverter is higher than set value of 06-11 (P.160), inverter will be in a current
stall state.
5.7.7 Cooling fan operation
 Control run/stop condition of fan and alarm output mode through parameter setting..
Parameter
Name
Default
Setting Range
Content
06-12
P.245
Cooling fan operation
0
0
Fan turn on when inverter starts running. Fan turn off 30
seconds after inverter stops.
1
Fan turn on when inverter power on. Fan turn off when
inverter power off.
2
Fan turn on if heat sink temperature is higher than 40℃. Fan
turn off when inverter power off
3
Fan turn on if heat sink temperature is higher than 60℃. Fan
turn off when heat sink temperature is lower than 40℃.
Cooling fan operation

Each value in 06-12(P.245) is used to specify run/stop condition.
Ex: If user need fan turn on when inverter power on, fan turn off when inverter power off, set 06-12(P.245)=1.
Note: According to the installation environment conditions of inverter, if fan can be operated for as little time as possible
through reasonable setting, service life of fan can be prolonged.
Setting
Setting
