Shihlin electric SE3 Series User Manual
5
of 1
of 1 rating
374 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
REVISIO
N RECO
RD
APPENDI
X
367

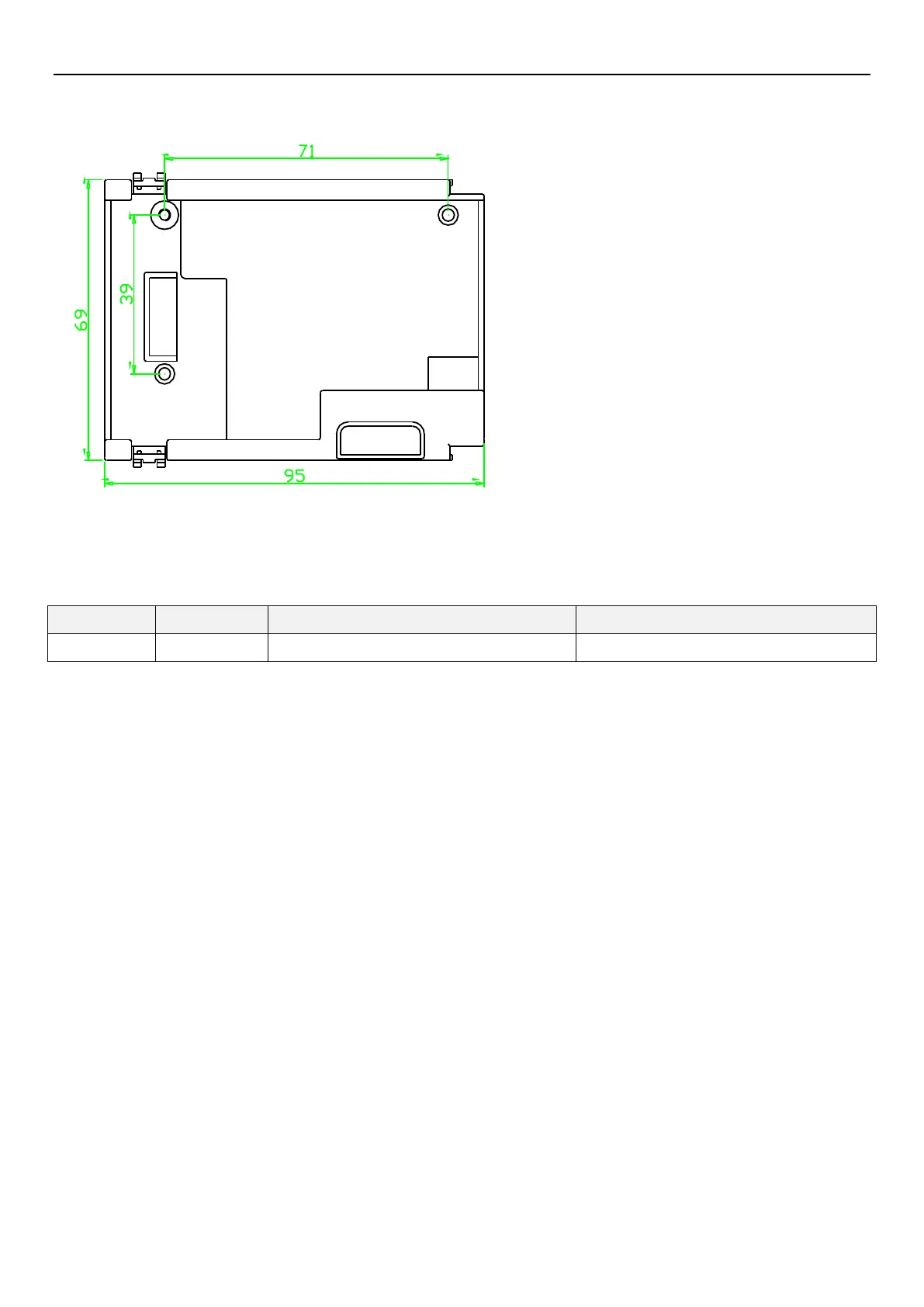

7.5.7 Expansion card mounting base
Ordering co
de:
NO.
Type
Name
Ordering Code
1
CMK301
Expansion card mount
ing base
SNKCMK301
368
370
Table of Contents
Table of Contents
1
Safety Instructions
3
Manual Guide
3
Contents
4
Delivery Check
4
Inverter Introduction
4
Basic Operation
5
Parameter Description
6
Definitions of Terminologies
16
Delivery Check
17
Nameplate Instruction
17
Type Instruction
17
Order Code Description
17
Inverter Introduction
18
Electric Specification
18
General Specification
21
Appearance and Dimensions
23
Product View
23
Installation and Wiring
28
Transportation
28
Stockpile
28
EMC Installation Instructions
30
Field Wiring
30
Shielding
30
Carrier Wave
30
Removing Front Cover
31
Peripheral Devices
32
System Wire Arrangement
32
No-Fuse Breaker and Magnetic Contactor
33
Regenerative Brake Resistor
33
AC Input Reactor
34
Filter
34
AC Output Reactor
35
DC Reactor
35
Terminal Wire Arrangement
37
Main Circuit Terminals
38
DC Reactor Connection
39
Brake Unit Connection
39
Brake Resistor Connection
39
Main Circuit Wiring and Terminal Specification
40
Ground
41
RFI Filter
41
Control Circuit
42
Control Terminal Name
42
Control Logic (SINK/SOURCE) Change
43
Arrangement of Control Terminal
44
Toggle Switch
46
Replacement Procedure of Fan
47
Basic Operation
48
Component Name of Keypad
48
Operation Modes of Inverter
50
Flow Chart for Switching Operation Mode
51
Flow Chart for Switching Working Mode with PU302 Keypad
51
Operation Flow Charts for Monitoring Mode with PU302 Keypad
51
Operation Flow Charts for Frequency Setting Mode with PU302
52
Operation Flow Charts for Parameter Setting Mode with PU302
52
Basic Operation Steps for Different Modes
53
Basic Operation Steps for PU Mode
53
Basic Operation Steps for External Mode
53
Basic Operation Steps for JOG Mode
54
Basic Operation Steps for Communication Mode
54
Basic Operation Steps for Combined Mode
54
Basic Operation Procedures for the Second Operation Mode
56
Operation
57
Check and Preparation before Running
57
Running Methods
57
Test Run
58
Parameter Description
59
System Parameter Group 00
59
Inverter Information
63
Parameter Restoration
64
Parameter Protection
66
Password Protection
69
Monitoring Function
70
Speed Display
71
PWM Carrier Frequency
71
Keypad Monitoring Selection
71
Stop Operation Selection
72
Carrier Operation Selection
72
Select the Inverter Stop Method
72
Idling Brake / DC Brake
72
Forward/Reverse Rotate Prevent Function
73
Operation Mode Selection
73
Control Mode Selection
74
Motor Control Mode Selection
75
Motor Types Selection
76
50/60Hz Switch Selection
76
Parameter Mode Setting
77
Frequency Mode Setting
77
Expansion Card Type Display
77
Basic Parameter Group 01
79
Limiting the Output Frequency
81
Base Frequency, Base Voltage
81
Maximum Frequency, High-Speed Maximum Frequency
81
Minimum Frequency
81
Acceleration/Deceleration Time Setting
82
Acceleration/Deceleration Curve Selection
83
Torque Boost
84
Acceleration/Deceleration Time Increments
84
Acceleration / Deceleration Reference Frequency
84
Starting Frequency
85
Load Pattern Selection
85
VF Complete Separation
87
V/F Half Separation
87
JOG Run
88
Output Frequency Filter Time
88
Frequency Jump
89
Second Function
90
Middle Frequency, Output Voltage of Middle Frequency
90
S Pattern Time
91
Analog Input and Output Parameter Group 02
93
Analog Input Terminals and M2 Terminal Function Selection
98
Input Function Selection
98
Analog Output Terminals am Function Selection
99
Proportional Linkage Gain
100
Auxiliary Frequency
101
Terminal 2-5 Signal Selection and Processing
101
Terminal 4-5 Signal Selection and Processing
107
Terminal M2 Signal Selection and Processing
109
Terminal HDI Selection and Processing
110
Terminal HDO Clock Multiplier Factor
110
Terminal FM Analog Output Function Selection
111
Terminal am Signal Selection and Processing
111
Maximum Analog Output Reference
113
Terminal AM/FM Fixed Output Level
113
PT100 Level Setting
113
FM Calibration Parameter
114
Digital Input/ Output Parameter Group 03
115
Digital Input Terminals Function Selection
119
Digital Output Terminals Function Selection
125
Terminal Logic Selection
126
Digital Output Signal Delay
127
Digital Input Signal Filter
127
Digital Input Terminal Enable When Power on
127
Output Frequency Detection
128
Zero Current Detection
129
Expanded Digital Input Terminals Function Selection
129
Expanded Digital Input Terminal Logic Selection
130
Expanded Digital Output Terminal Function Selection
130
Digital Input / Output Terminal Monitor
131
Multi-Speed Parameter Group 04
133
16 Steps Speed
135
Programmed Operation Mode
136
Motor Parameter Group 05
140
Motor Parameter Automatic Measurement
142
Motor Parameter
145
Automatic Measurement of Motor Inertia
147
Motor Inertia Auto-Tuning
147
Second Motor Parameter
148
Protection Parameter Group 06
150
Electronic Thermal Relay Capacity
153
Current Stalling Protection
153
Regenerative Brake
155
Decrease Carrier Protection Setting
155
Over Torque Detection
157
Stall Level When Restart
158
Cooling Fan Operation
158
Input Phase Loss Protection
159
Output Short Circuit Protection Function
159
PTC Protection Selection
159
Maintenance Alarm Function
160
Short Circuit to Ground Protection
160
Output Phase Loss Protection
161
Low Voltage Protection
161
Regenerative Brake Operation Level
161
Voltage Stall Level
161
Capacitor Lifetime Detection
162
Time Record Function
163
Output Power Calculation
163
Alarm Query Function
163
Alarm Code Query
165
Latest Alarm Message (E1)
165
The Second Alarm Message (E2)
166
Communication Parameter Group 07
167
Shihlin Protocol and Modbus Protocol
170
Calculation of LRC Check Value in ASCII Mode
177
Calculation of CRC Check Value in RTU Mode
177
Communication Command List
182
Table for Parameter Recovery
185
Special Monitor Code Table
185
Communication EEPROM Write Selection
186
Canopen Protocol
187
Communication Card Version
187
Ethernet Communication
188
PID Parameter Group 08
189
PID Function Selection
191
PID Parameter Group 1
191
PID Gain Simple Setting
195
PID Parameter Group 2
196
PID Filter Setting
197
PID Deviation Control Limit
197
PID Integral Property
197
PID Filter Time Constant
197
PID Differential Limit
198
PID Output Deviation Limit
198
PID Parameter Switchover
199
PID Action When Error Occurs
199
PID Reverse Run Operation Selection
200
Pressure Unit (Bar) Setting
200
PG Feedback Parameter Group 09
201
PG Type Selection
202
PG (Pulse Generator)
202
PG1 Parameter
203
PG Error Detection
204
PG Abnormality Detection
204
PG2 Parameter
205
Dividing Frequency Output Function
206
Electronic Gear Ratio
206
Reverse Spin Detection
206
Expansion Card Version Information
207
PG Card Z Phase Correction Margin Z
207
DV1/DV2 Alarm of PG Card Z Phase
207
Application Parameter Group 10
208
DC Injection Brake
213
Zero-Speed/Zero-Servo Control
214
Zero Servo Sequence Diagram
214
DC Injection Brake before Start
215
Restart Mode Selection
216
No Frequency Search Restart Operation
217
Frequency Search Restart Operation
217
Remote Setting Function Selection
218
Auto Reset Function
220
Forward and Reverse Rotation Dead Time
221
Energy-Saving Function
221
Dead Time of Forward-Reverse Rotation
221
Dwell Function
222
Backlash Compensation
222
Acceleration and Deceleration Interrupt Waiting Function
222
Triangular Wave Function
223
Switch to Commercial Power Supply Function
224
When Input Power Fail Stop Function
227
Undervoltage Avoidance Function
228
Regeneration and Avoidance Function
229
Over Excitation Deceleration Function
231
Short-Circuit Brake Function at PM Motor Start
231
Built-In PLC
232
Speed and Torque Control Parameter Group 11
234
Control Parameter
236
IM Motor Estimated Speed Filtering Time
237
PM Motor Setting
237
Torque Control Parameter
238
Torque Limit
240
Second Motor Control Parameter
241
Second PM Motor Setting
242
PM Motor Speed Estimation Observer Parameters
242
PM Motor Current Loop Controller Parameters
243
Velocity Loop Output Low-Pass Filter Time Constant
243
Position Control Parameter 12
244
Homing Mode
246
Position Control Parameter
249
Zero Servo
251
Single Point Positioning Function
251
Position Command
252
Special Adjustment Parameter Group 13
255
Slip Compensation
255
Modulation Coefficient
255
Vibration Inhibition
256
Tension Control Parameter Group 14
257
Tension Control Mode Selection
260
Tension Setting
261
Curling Radius Calculation
262
Winding Radius Calculation
264
Linear Speed Input
265
Tension Compensation
266
Material Outage Detection
267
Pre-Drive Control
268
Auto Roll Change Control Logic
268
Constant Linear Speed Mode
270
Tension Closed-Loop Limiter
270
User Parameter Group 15
271
User Registered Parameter
271
User Registered Parameter 2 99999
272
User Registered Parameter 3 99999
272
User Registered Parameter 4 99999
272
User Registered Parameter 5 99999
272
User Registered Parameter 6 99999
272
User Registered Parameter 7 99999
272
User Registered Parameter 8 99999
272
User Registered Parameter 13 99999
272
User Registered
272
Parameter
272
Inspection and Maintenance
273
Inspection Item
273
Diodes and IGBT Check
274
Cleaning
274
Replacement Parts
275
Ways to Measure Voltage, Current, Power on Main Circuit
276
Measurement Instruments Choosing
276
Measurement of Voltages
276
Measurement of Currents
276
Measurement of Power
277
Measurement of Frequency
277
Measurement of Insulation Resistance
277
Hi-Pot Test
277
Parameter Table
278
P Parameter Number Sequence
278
Parameter
279
Parameter
285
Parameter
288
Alarm Code List
351
Warning Code List
355
Troubles and Solutions
356
Optional Equipment
357
Communication Card
357
I/O Card
361
PG Card
363
Keypad
366
Data Transmission Line
367
Snap Mounting
367
BKU Brake Unit
368
Expansion Card Mounting Base
369
European Specification Compatibility Description
370
Other manuals for Shihlin electric SE3 Series
Instruction Manual
48 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Shihlin electric SE3 Series and is the answer not in the manual?
Ask a question
Shihlin electric SE3 Series Specifications
General
Brand
Shihlin electric
Model
SE3 Series
Category
Inverter
Language
English
Related product manuals
Shihlin electric SE2 Series
160 pages
Shihlin electric SC3 Series
217 pages
Shihlin electric SS2 Series
176 pages
Shihlin electric SF-040-15K
145 pages
Shihlin electric SF-040-22K
145 pages
Shihlin electric SF-040-7.5K
145 pages
Shihlin electric SC3-043-1.5K
217 pages
Shihlin electric SS2-021-0.4K
176 pages
Shihlin electric SC3-043-2.2K
202 pages
Shihlin electric SS2-023-0.4K
176 pages
Shihlin electric SS2-021-1.5K
176 pages
Shihlin electric SS2-023-1.5K
176 pages
Need help?
General
To Next Page
