Basic parameter group 01
PARAMETER DESCRIPTION 86

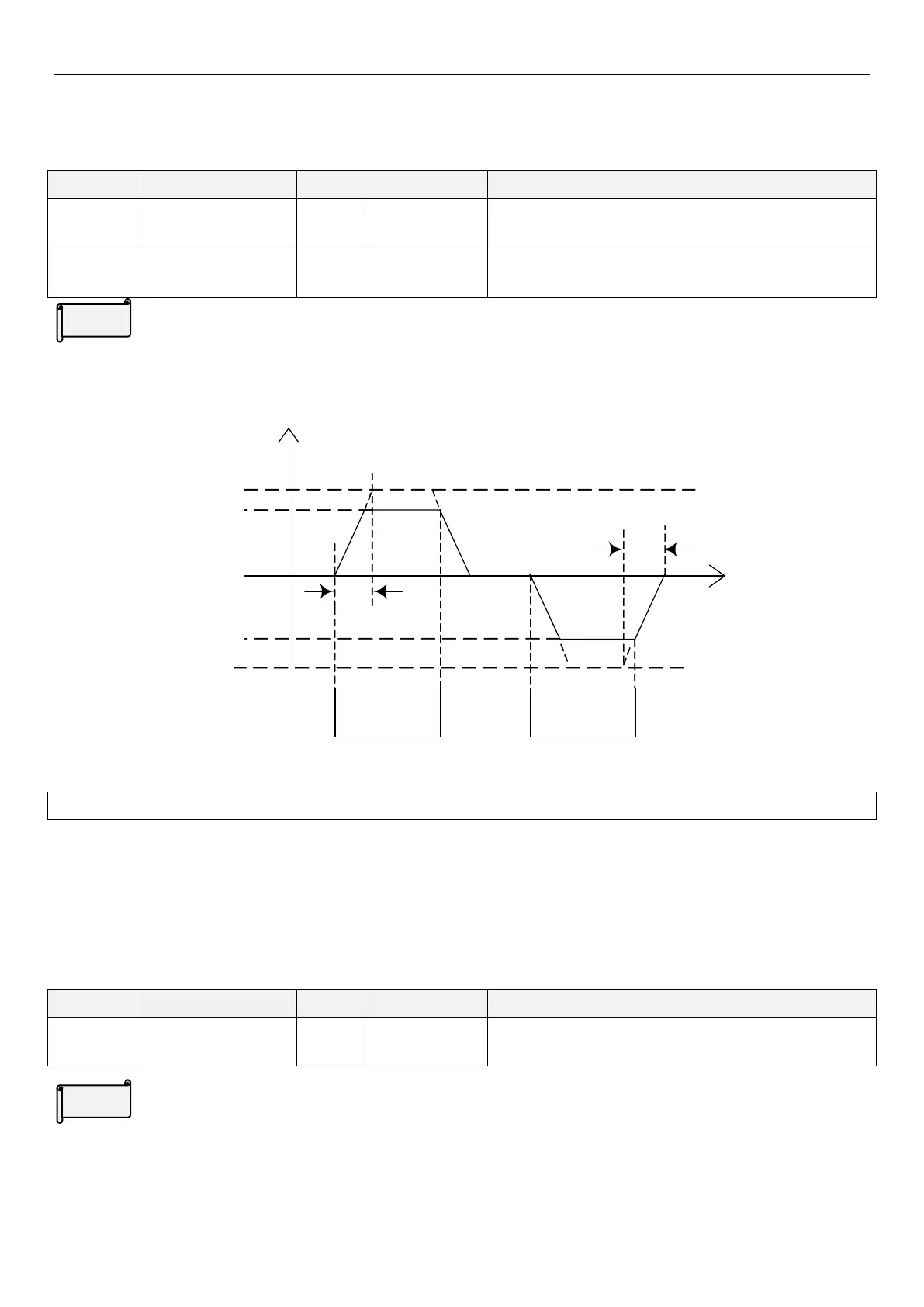

5.2.7 JOG run
 The frequency and acceleration/deceleration time for JOG running can be set. JOG can be used for conveyor
positioning, test run, etc.
Parameter
Name
Default
Setting Range
Content
01-13
P.15
JOG frequency
5.00Hz
0～650.00Hz
---
01-14
P.16
JOG acceleration/
deceleration time
0.50s
0～360.00s/
0～3600.0s
01-08(P.21)=0/
01-08(P.21)=1
JOG operation

In JOG mode, the output frequency is the set value of 01-13
(P.15)
, and the acceleration / deceleration time is the
set value of 01-14
(P.16)
.
01-14
(P.16 )
01-09
(P.20)
01-03
(P.15)
01-03
(P.15)
01-09
(P.20)
01-14
(P.16 )
Forward
rotation
Reverse
rotation
Press
FWD
Press
REV
Output frequency
Time
5.2.8 Output frequency filter time
 This filter can reduce the impact when switching the frequency between high and low, and thus reduce the
vibration of machine
Parameter
Name
Default
Setting Range
Content
01-15
P.28
Output frequency filter
time
0ms
0～1000ms
---
Output frequency filter time

The filtering effect is better when the value of 01-15
(P.28)
is larger, but will also increase the response delay.

If 01-15
(P.28)
is set to 0, the filtering function is off.
Note: Please refer to Section 4.3.3 for how to enter the JOG mode.
Setting
Setting
