Component name of keypad (PU302)
PRIMARY OPERATION46
4. BASIC OPERATION

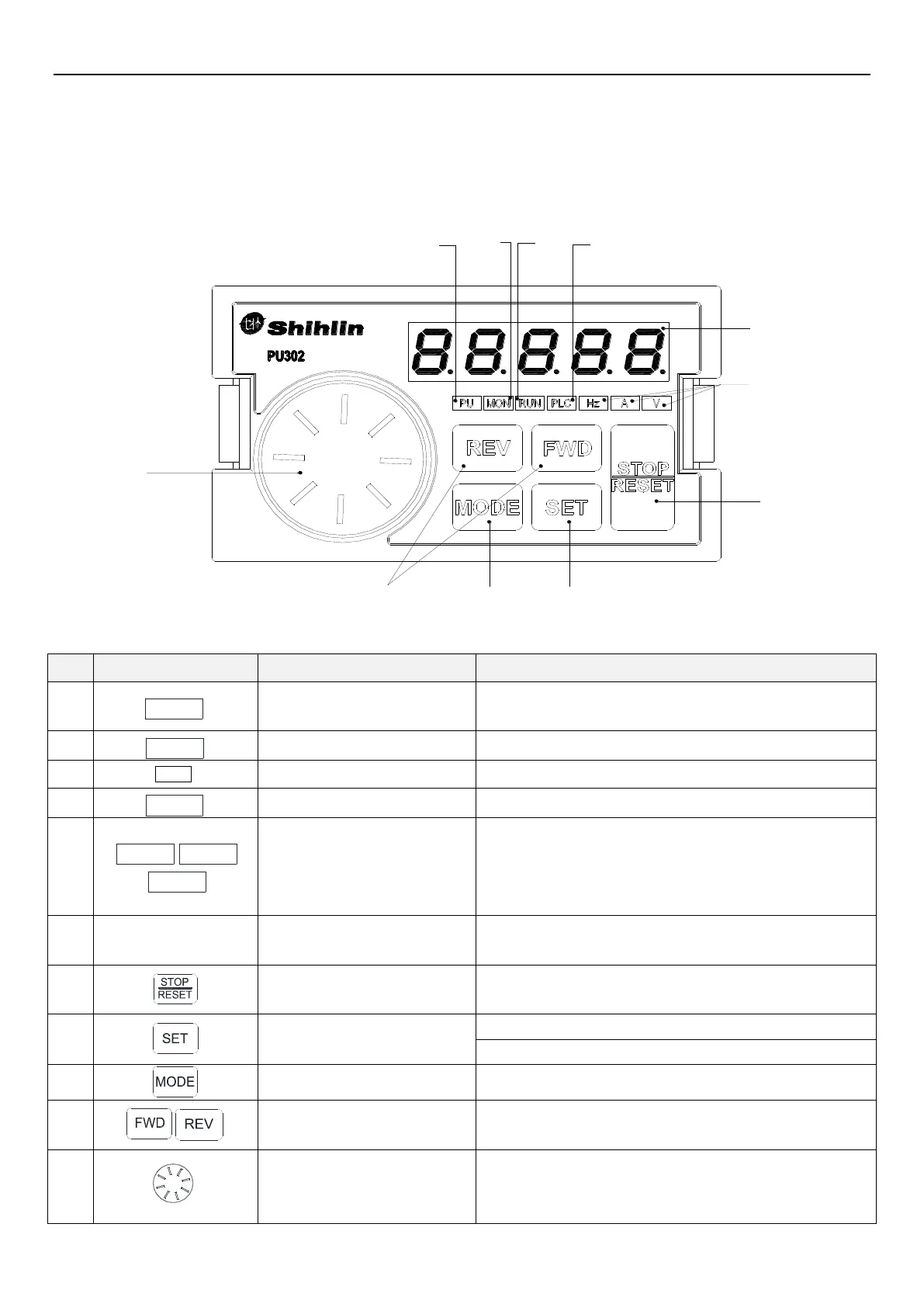

4.1 Component name of keypad (PU302)
(a)
(b)
(c)
(e)
(d)
(j)
(g)
(i) (h)
(f)
(k)
NO.
Operation parts
Name
Content
(a)
PU
Operation mode indicator
PU: On when in PU operation mode, flickers in H1~H5
operation mode.
(b)
MON
Keypad status indicator
MON: On to indicate the monitoring mode
(c)
RUN
RUN indicator
On when running
(d)
PLC
PLC function indicator
On when in PLC mode
(e)
Hz
A
V
Monitoring indicator
Hz: On when monitoring frequency.
A: On when monitoring output current.
V: On when monitoring output voltage by default. Can be set
by 00-07（P.161）to monitor different values.
(f)
Monitor (5-digit LED)
Shows the frequency, parameter number, and parameter
value, etc.
(g)
STOP/RESET button
Stops the operation.
Resets the inverter when alarm.
(h)
SET button
Long press writes parameter value, frequency, etc.
Press to read the parameter.Enter into the next menu.
(i)
MODE button
Switches to different modes
(j)
FWD button REV button
FWD: Starts forward rotation.
REV: Starts reverse rotation.
(k)
M Setting dial
Clockwise rotation increase values or can switch options
Counter clockwise rotation decrease value or can switch
options
.....
8 8 8 8 8
