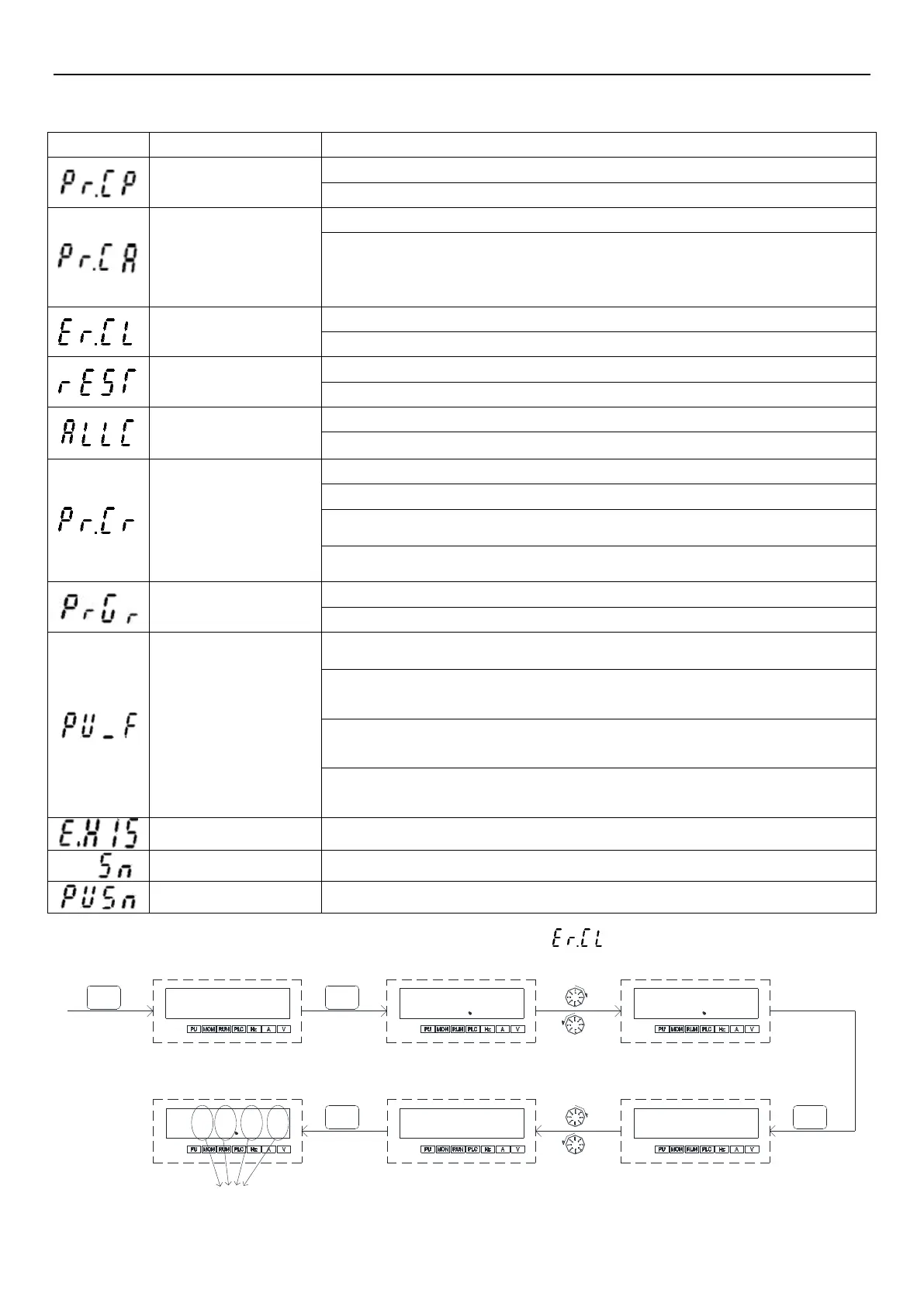

Component name of keypad (PU302)
PRIMARY OPERATION47
Note:
The HELP mode menu enter by pressing MODE button is shown as the table below:
Menu
Name
Press SET button to enter into next function description
Parameter copy
0: Off
1: Copy the inverter parameter values into the keypad.
Parameter paste
0: Off
1: Paste the copied parameter values in keypad into the inverter (Please first set the
inverter parameters to default, and then paste the parameter. This only works with
same series same types inverter.)
Alarm clear
0: Off.
1: Clear all alarm and alarm information.
Inverter reset
0: Off
1: Reset the inverter.
Parameter set to default
setting
0: Off
1: Part of inverter parameters are reset to default.
Part of parameters set to
default
0: Off
1: Part of inverter parameters reset to default.
2: Inverter parameters reset to default + user parameters(15-00(P.900 ) ~15-19
(P.919))are not reset to default
3: Part of inverter parameters reset to default + user parameters(15-00(P.900)
~15-19(P.919))are not reset to default
Parameter mode
0: P parameter mode
1: Parameter group mode
Auto write frequency
selection
0: After changing frequency, the value will not write into the inverter automatically.
1: After changing frequency, the value will write into the inverter RAM after 0.5s and
write into the inverter EEPROM after 10s automatically.
2: After changing frequency, the value will write into the inverter RAM after 0.5s and
write into the inverter EEPROM after 30s automatically.
3: After changing frequency, the value will only write into the inverter RAM after 0.5s
automatically.
Alarm record
Display the recent four alarm codes. (Read only)
Inverter version
Display the version number of the inverter. (Read only)
Keypad version
Display the version number of PU302. (Read only)
For example: Press MODE button to enter into HELP menu to Alarm clear , the operation flow chart is as follows:
4 times
P
L
E
H
P
C
r
P
L
C
r
E
01
E
r
C
L
MODE SET
REV FWD
STOP
RESET
MODE
SET
SET SET
glitter
