Shihlin electric SE3 Series User Manual

PG feedback parameter group 09
PARAMETER DESCRIPTION 201

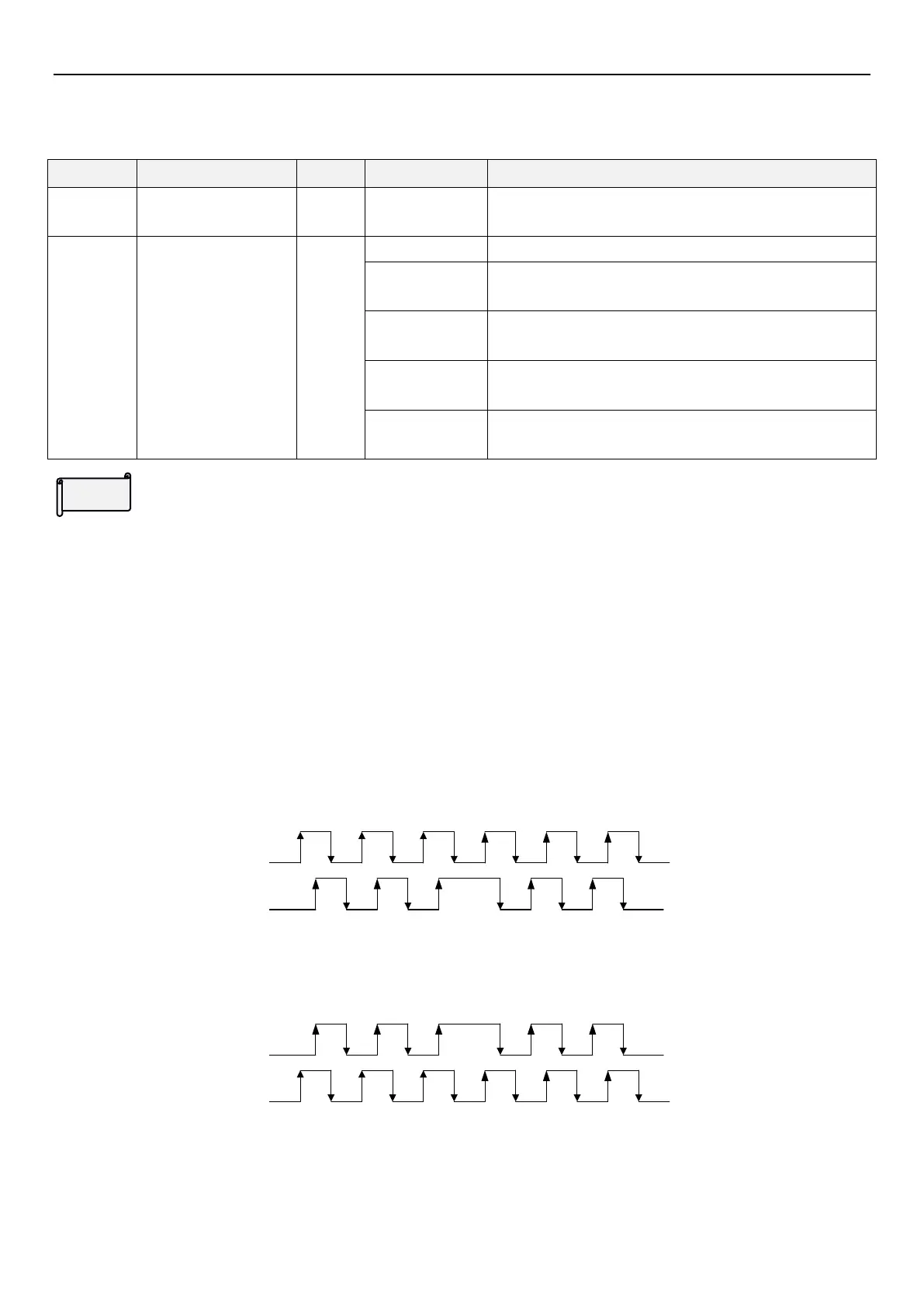

5.10.2 PG1 parameter
 For selecting input type of PG1 encoder.
Parameter
Name
Default
Setting Range
Content
09-01
P.350
Encoder pulse 1
1024
0～20000
---
09-02
P.351
Encoder input type 1
0
0
Off
1
A/Phase B pulse wave, forward spin if Phase A is over
Phase B for 90 degrees
2
A/Phase B pulse wave, forward spin if Phase B is over
Phase A for 90 degrees
3
Phase A :pulse wave, Phase B:directional sign, L:reverse
spin, H:forward spin
4
Phase A :pulse wave, Phase B: directional sign, L:forward
spin, H:reverse spin
PG1 parameter

09-01
(P.350)
and 09-02
(P.351)
are for the setting of encoder with A1/B1 interface connected to PG card. When
controlling in closed loop, the encoder signal for feedback can only be connected to A1/B1 on PG card.
09-01
(P.350)
is for the setting of the number of pulse generated by the encoder per revolution of the motor, which
is the pulse generated by A/Phase B per cycle.

Parameter 09-02
(P.351)
is for setting the input type of encoder，the following is the instructions for each input type
of the encoder:
0: Off.
1: A/Phase B pulse wave，forward spin if Phase A is over Phase B for 90 degrees
A
B
Reverse
Forward
2: A/Phase B pulse wave, forward spin if Phase A is over Phase B for 90 degrees.
A
B
Reverse
Forward
3: Phase A :pulse wave，Phase B:directional sign，L:reverse spin，H:forward spin.
Setting
