Reactor
INVERTER INTRODUCTION 29

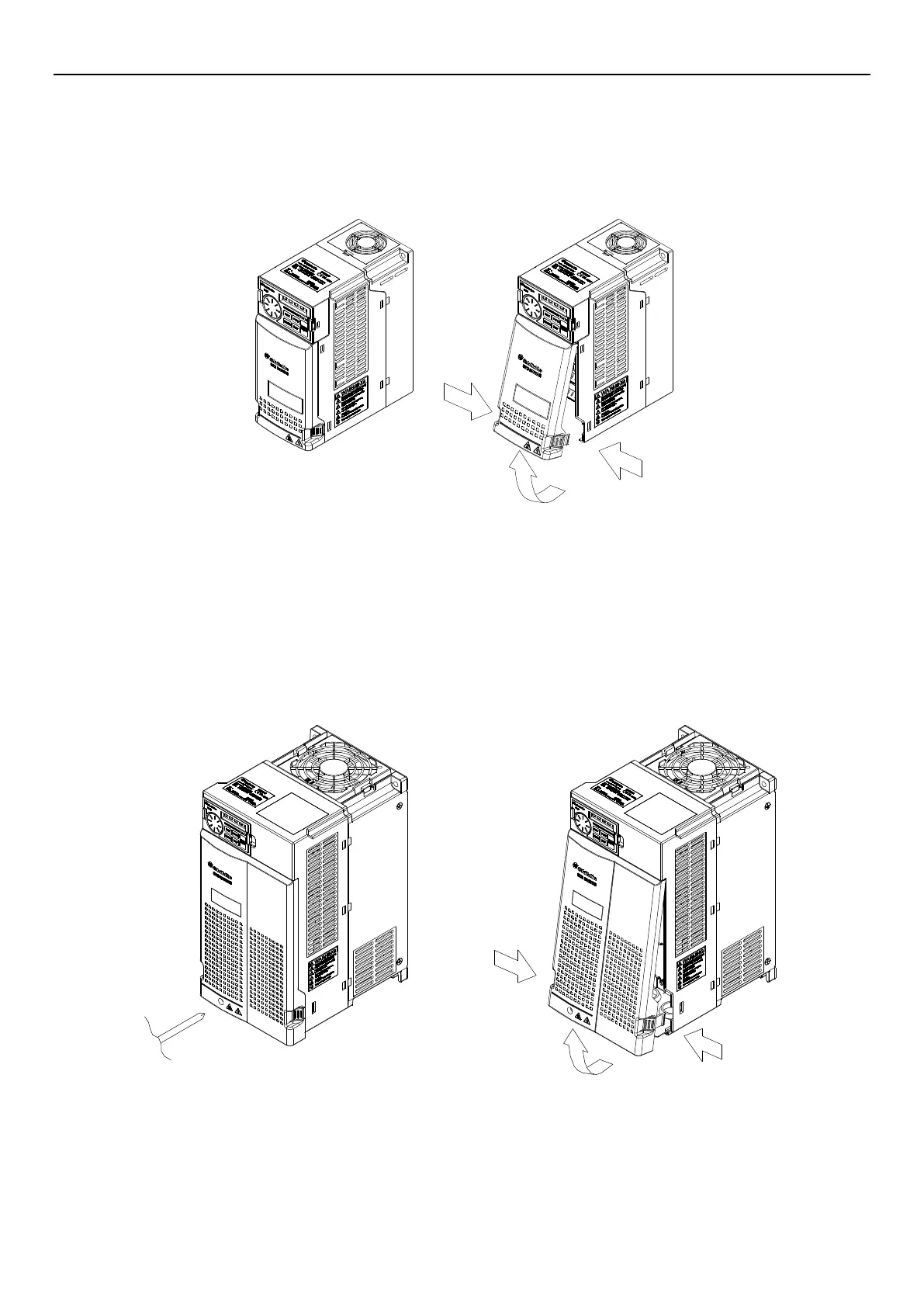

3.5.5 Removing front cover
 Frame A/B
* 1. Frame A: SE3-043-0.4 ~ 1.5K, SE3-023-0.4 ~ 1.5K, SE3-021-0.4 ~ 0.75K
* 2. Frame B: SE3-043-2.2 ~ 3.7K, SE3-023-2.2 ~ 3.7K, SE3-021-1.5 ~ 2.2K
(a) (b)
(a) Loosen the screws on the wiring front cover.
(b) While holding the areas around the installation hooks on the sides of the wiring front cover, pull out the wiring front
cover using its upper side as a support.
 Frame C/D
* 1. Frame C: SE3-043-5.5 ~ 11K, SE3-023-5.5 ~ 7.5K
* 2. Frame D: SE3-043-15 ~ 22K, SE3-023-11 ~ 15K
(a) (b)
(a) Loosen the screws on the wiring front cover.
(b) While holding the areas around the installation hooks on the sides of the wiring front cover, pull out the wiring front
cover using its upper side as a support.
