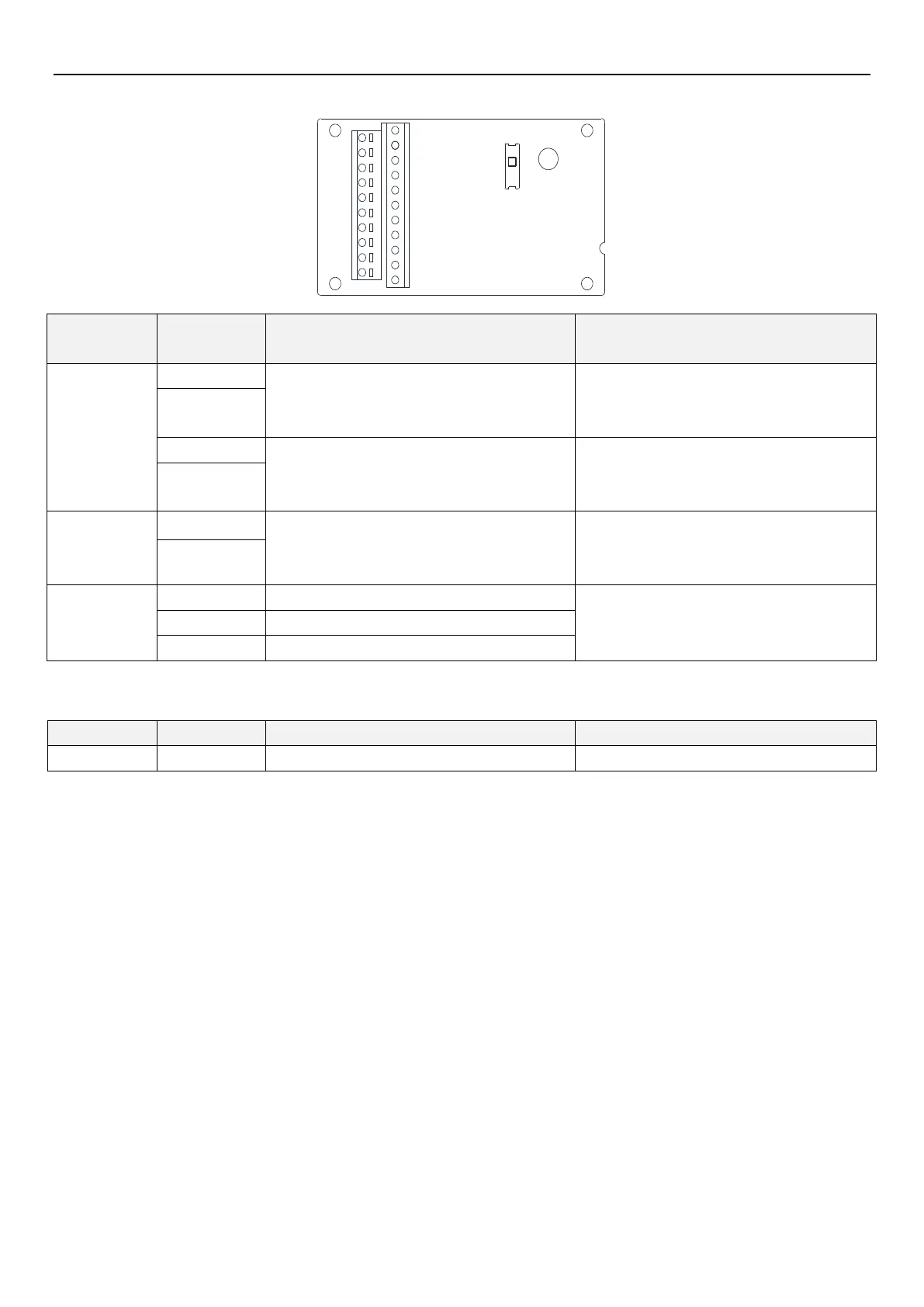

Appendix 7
REVISION RECORD 362
PG301L
A
B
Z
A2
B2
AO
BO
+12
+5
DCM
A
B
Z
A2
B2
AO
BO
ZO
ZO
Terminal
Terminal
Symbols
Function instruction
Terminal specification
Input
A1B1Z1
The input of the encoder signal supports open
collector, voltage, line drive and push-pull input
type.
Maximum frequency: 500KP/Sec
A1
——
B1
——
Z1
——
A2B2
The input of pulse signal connects to the upper
controller and supports open collector, voltage,
line drive and push-pull input type.
Maximum frequency: 500KP/Sec
A2
——
B2
——
Output
AOBOZO
The line-drive dividing frequency output is 1255
times dividing frequency.
Maximum output voltage: 5V
Maximum current: 50mA
Maximum frequency: 500KP/Sec
AO
——
BO
——
ZO
——
Power
12V
12V Power
Voltage: ±5%
Current: 200mA MAX
5V
5V Power
DCM
Power grounding
Ordering code:
Note: In order to install the expansion card, you need to purchase the expansion card installation accessory
(SNKCMK301) at the same time.
NO.
Type
Name
Ordering Code
1
PG301L
PG301Lcard
SNKPG301L
