Shihlin electric SE3 Series User Manual

REVISION RECORD
APPENDIX 363

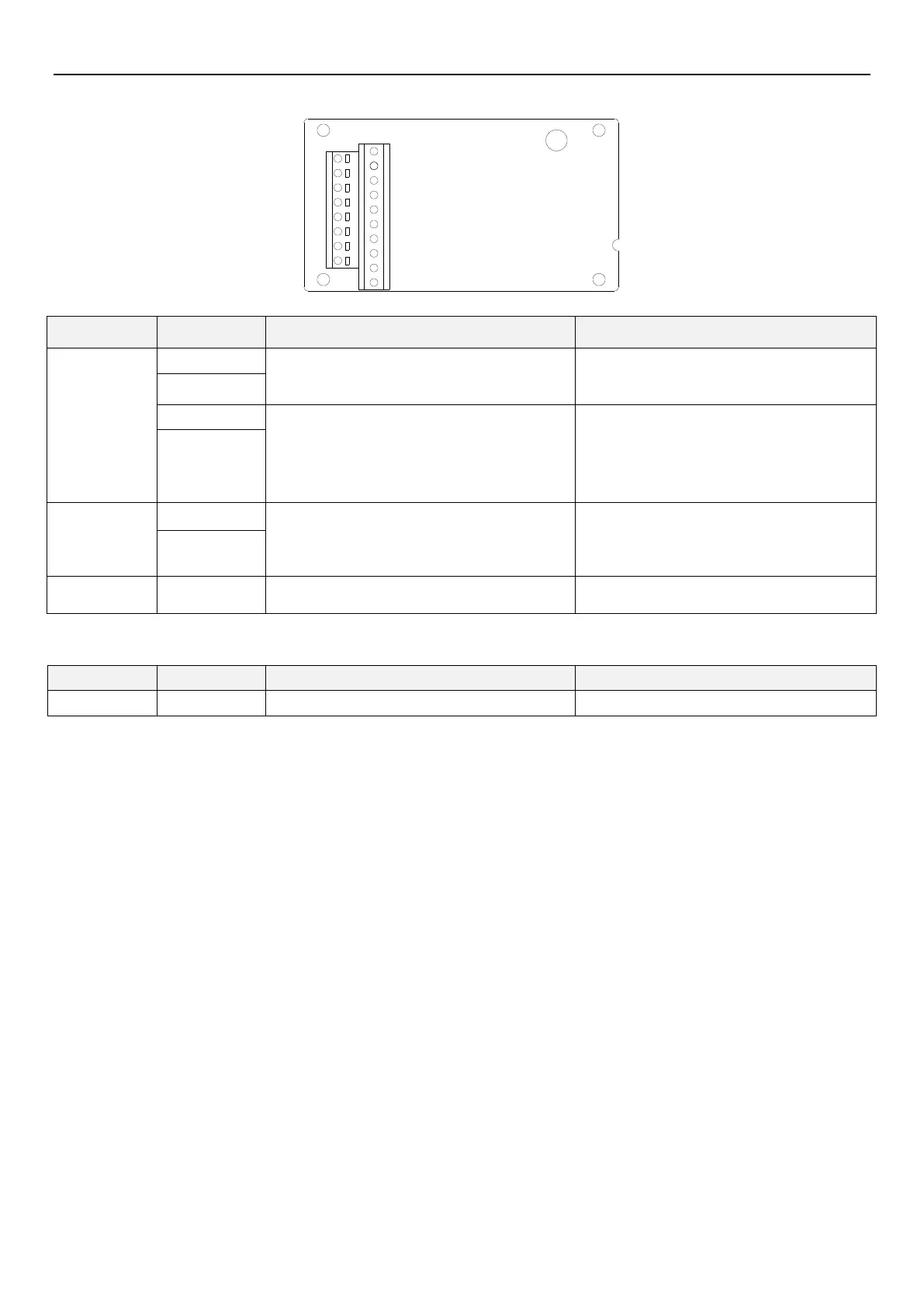

 PG302L
Terminal
Name
Function instruction
Terminal specification
Input
S1、S2
Resolver signal input
3.5±0.175Vrms，10kHz
S3
——
、S4
——
A2、B2
The input of pulse signal connects to the upper
controller and supports open collector, voltage,
line drive and push-pull input type, the maximum
is 500K.
Maximum frequency: 500KP/Sec
A2
——
、B2
——
Output
AO、BO、ZO
The line-drive dividing frequency output is 1～255
times dividing frequency.
Maximum output voltage: 5V
Maximum current: 50mA
Maximum frequency: 500KP/Sec
AO
——
、BO
——
、ZO
——
Power
R1-R2
Resolver power output
7Vrms, 10KHz
 Ordering code:
NO.
Type
Name
Ordering Code
1
PG302L
PG302L card
SNKPG302L
Note: In order to install the expansion card, you need to purchase the expansion card installation accessory
(SNKCMK301) at the same time.
