Shihlin electric SE3 Series User Manual

Application parameter group 10
PARAMETER DESCRIPTION 228
Parameter
Name
Default
Setting Range
Content
10-45
P.267
Regeneration avoid
function selection
0
0
Off.
1
Regeneration avoid function is always on. (Automatic
calculate Acc/Dec speed )
2
Regeneration avoid function is on only during constant
speed operation (Automatic calculate Acc/Dec speed )
11
Regeneration avoid function is always on. (Manual mode,
Acc/Dec speed is set by 10-49(P.271) and 10-50(P.272))
12
Regeneration avoid function is on only during constant
speed operation (Manual mode, Acc/Dec speed is set by
10-49(P.271) and 10-50(P.272))
10-46
P.268
Regeneration avoid
action voltage level
380V
155～400V
220V models
760V
310～800V
440V models
10-47
P.269
Regeneration avoid
function DC bus
voltage detection
sensitivity at
deceleration
0
0
Prevent regeneration avoidance from failing according to
bus voltage change rate
1～5
Set the sensitivity to detect the bus voltage change rate.
Larger number, higher sensitivity.
10-48
P.270
Regeneration avoid
frequency
compensation value
6.00Hz
0～10.00Hz
Set the limit value of regenerative avoid frequency
compensation.
99999
Off.
10-49
P.271
Regeneration avoid
voltage gain coefficient
100.0%
0～400.0%/0～
40.0%
Setting range is related to 10-45 (P.267). If 10-45
(P.267) >10, the setting range is 0~40.00%; If 0-45 (P.267)
<10, the setting range is 0-400.0%.
Adjust the response speed during regeneration avoid
operation. Increasing the set value will improve the response
to the bus voltage changes, but output frequency may be
unstable. If cannot reduced vibration even if 10-49 (P.271) is
reduced, please reduce 10-50 (P.272).
10-50
P.272
Regeneration avoid
frequency gain
coefficient
100.0%
0～400.0%/0～
40.0%
Regeneration and avoidance function


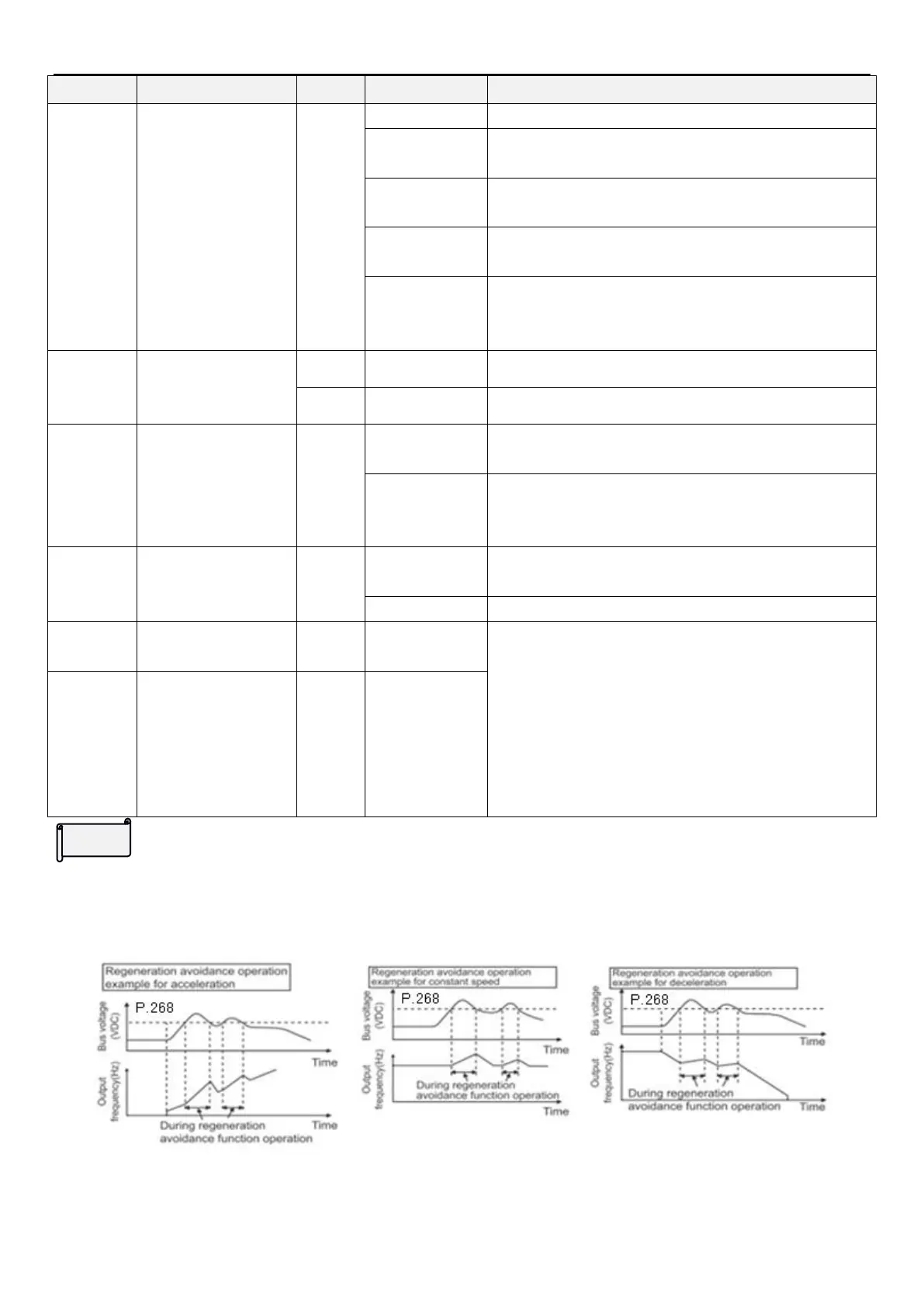

Regeneration avoid function: In case too many regeneration energy in DC bus trigger inverter OV alarm.
Regeneration avoid function will reduce bus voltage by increasing inverter output frequency when regeneration
voltage exceeds the level, thus avoiding inverter from reporting OV alarm (as shown in the following diagram).
Setting
