Shihlin electric SE3 Series User Manual

Name of each component
INVERTER INTRODUCTION 25

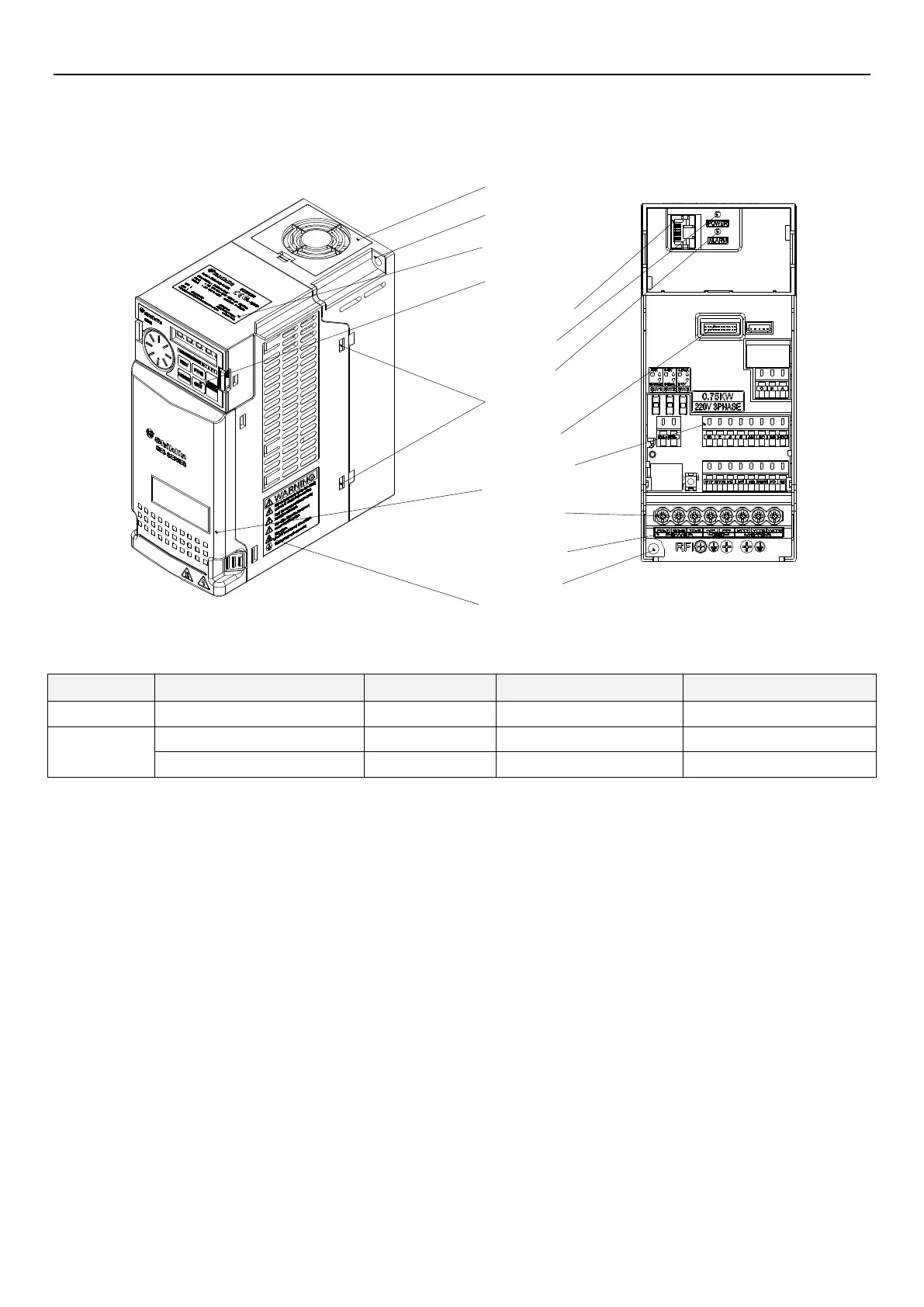

3.4 Name of each component
3.4.1 Frame A/B/C/D
WARNING label
Mounting holes
Main-circuit
terminal block
nameplate
Main-circuit
terminal block
Top cover
Control-circuit
terminal block
Expansion card
connector
Shell hook
ALARM light
POWER light
Connector of the
parameter unit
Parameter unit
Nameplate label
Mounting holes
Fan cover
3.4.2 Protection level and operation temperature
Frame
NEMA 1 sticker
Conduit box
Protection level
Operation temperature
A/B
--
--
IP20/NEMA TYPE 1
-10 ~ +40℃
C/D
Standard with NEMA 1 sticker
Installation
IP20/NEMA TYPE 1
10 ~ +40℃
NEMA 1 sticker removed
No installation
IP20/NEMA OPEN TYPE
-10 ~ +50℃
* 1. Frame A: SE3-043-0.4 ~ 1.5K, SE3-023-0.4 ~ 1.5K, SE3-021-0.4 ~ 0.75K
* 2. Frame B: SE3-043-2.2 ~ 3.7K, SE3-023-2.2 ~ 3.7K, SE3-021-1.5 ~ 2.2K
* 3. Frame C: SE3-043-5.5 ~ 11K, SE3-023-5.5 ~ 7.5K
* 4. Frame D: SE3-043-15 ~ 22K, SE3-023-11 ~ 15K
