Shihlin electric SE3 Series User Manual

Appendix 7
REVISION RECORD 356

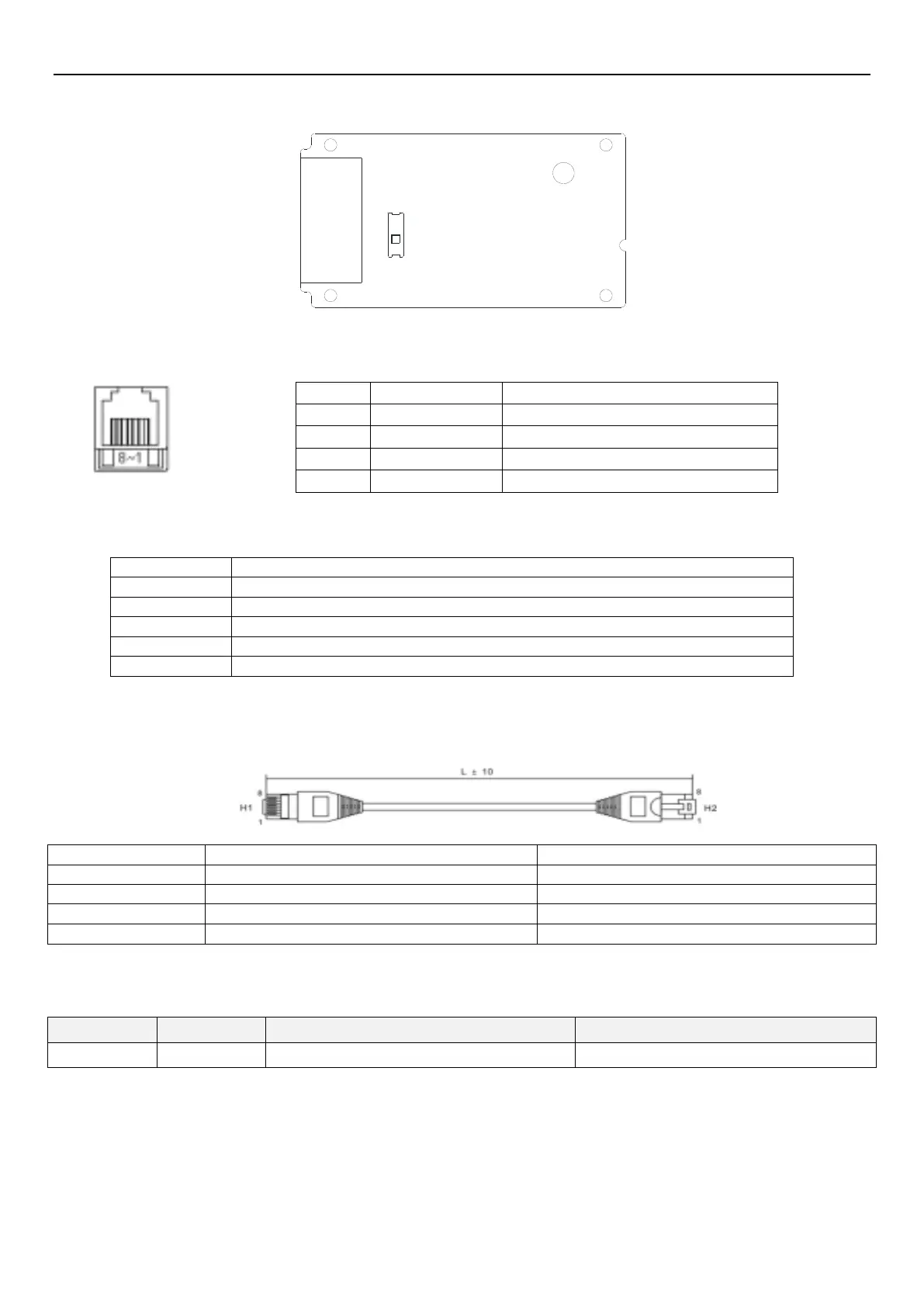

 CP301: Canopen communication card
 RJ-45 Pin Definition
Socket
 Function and specification
Connector
RJ-45
Port
2 Port
Transmission
mode
CAN
Transmission
cable
Using CAN standard line
Transmission
rate
1M 500k 250K/280KF 125k 100k 50k
Protocol
CAN open Protocol
 CAN open communication wiring
Type: SNKCBLxxGTN2 (xx stands for1R5,3,5,10)
 Ordering code:
NO.
Type
Name
Ordering Code
1
CP301
CP301card
SNKCP301
Note: In order to install the expansion card, you need to purchase the expansion card installation accessory
(SNKCMK301) at the same time.
Pin
Symbol
Description
1
CAN_H
CAN_Hbus line (dominant high)
2
CAN_L
CAN_L bus line (dominant low)
3
CAN_GND
Ground /0V/V-
7
CAN_GND
Ground /0V/V-
Item No.
Part No.
L(mm)
1
SNKCBL1R5GTN2
1500
2
SNKCBL3GTN2
3000
3
SNKCBL5GTN2
5000
4
SNKCBL10GTN2
10000
