Addr. Parameter C Setting Options Default Setting
_:13111:108 Channel 1:Resolution
•
1
•
0.1
•
0.01
•
0.001
0.1
_:13111:107 Channel 1:Range active
•
0
•
1
false
_:13111:104 Channel 1:Conversion
factor
1 to 1000000 100
_:13111:105 Channel 1:Upper limit 0.00 mA to 20.00 mA 20.00 mA
_:13111:109 Channel 1:Upper limit -
Sensor
-1000000 to 1000000 100
_:13111:106 Channel 1:Lower limit 0.00 mA to 20.00 mA 4.00 mA
_:13111:110 Channel 1:Lower limit -
Sensor
-1000000 to 1000000 100
Information List
No. Information Data Class
(Type)
Type
General
_:2311:53 General:Health ENS O
_:2311:56 General:Failure SPS O
Channel 1
_:13111:53 Channel 1:Health ENS O
_:13111:71 Channel 1:Failure SPS O
_:13111:301 Channel 1:20-mA output scale MV O
_:13111:302 Channel 1:20-mA output raw MV O
Communication with 20-mA Unit
Integration of a Serial 20-mA Unit
Connection of the Communication Lines

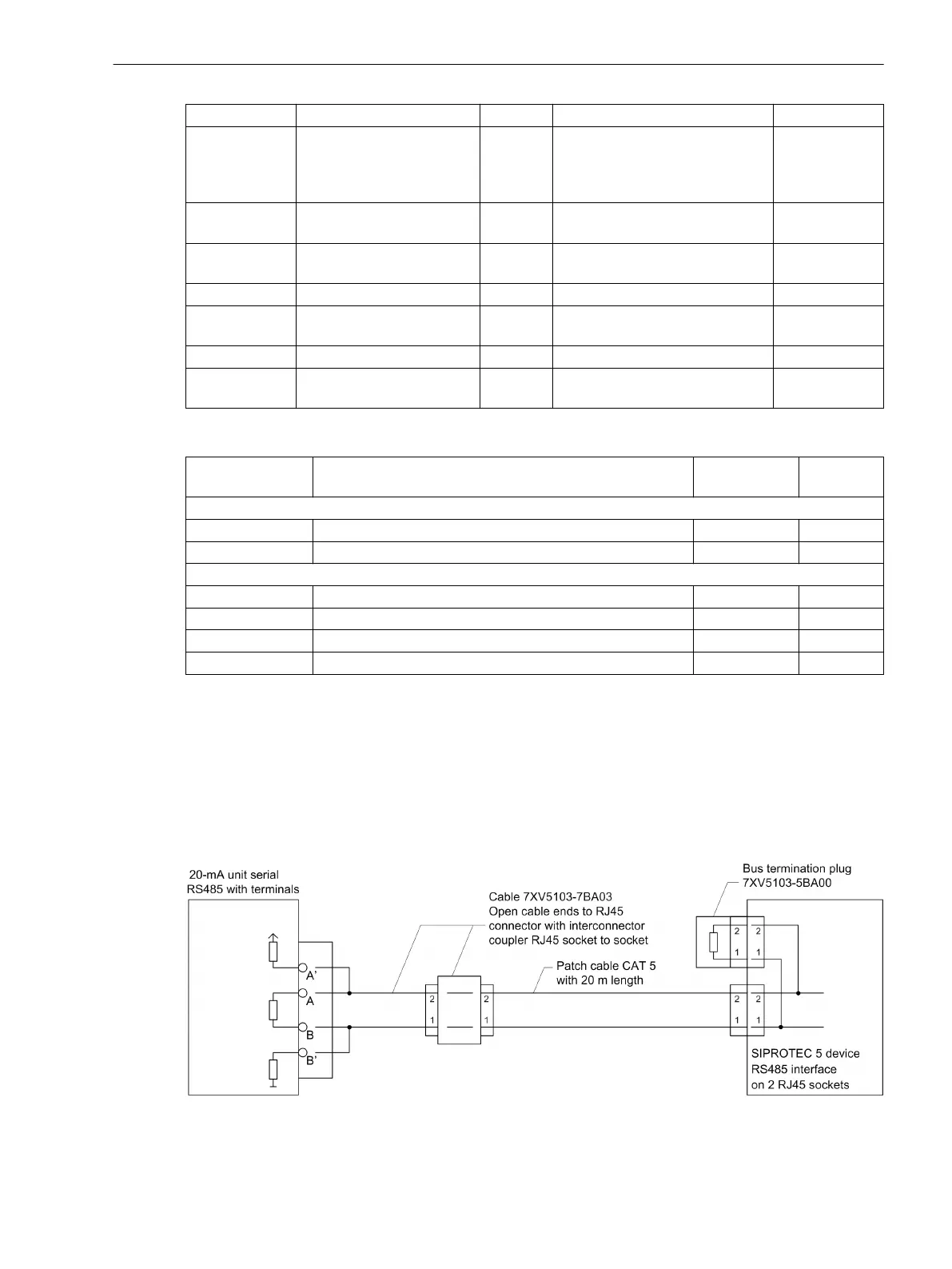

Figure 5-61 shows how to connect the 20-mA unit to the SIPROTEC 5 device. Note that Pin 1 of the RJ45 plug
is connected to RTD-B and Pin 2 is connected to RTD-A.
[dwve20au-150213-01.tif, 1, en_US]
Figure 5-61 Connection of the 20-mA Unit to the SIPROTEC 5 Device
5.7.4.4
5.7.5
5.7.5.1
Function-Group Types
5.7 Function-Group Type Analog Units
SIPROTEC 5, High-Voltage Bay Controller, Manual 265
C53000-G5040-C015-9, Edition 11.2017
