[lo-bbp-verzau-1ph.vsd, 5, en_US]

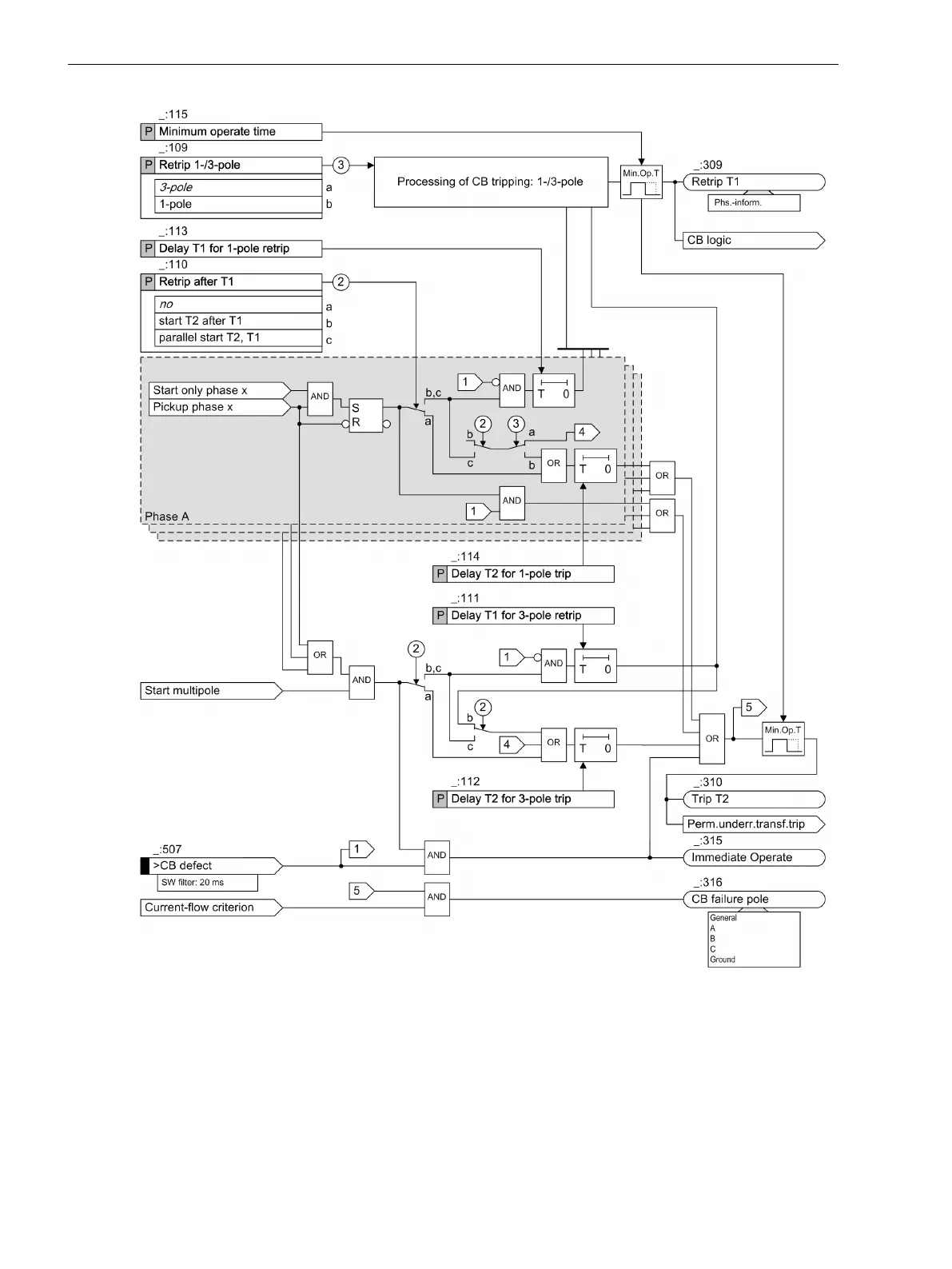

Figure 7-16
Delay/Tripping of the Circuit-Breaker Failure Protection Function (1/3-Pole Circuit Breaker)
Application and Setting Notes
Figure 7-17 gives an overview of the functions involved in an external start of the 3-pole CBFP function,
Figure 7-18 gives this overview for the 1/3-pole function. In the case of an internal start, there is no external
protection device and the protection functionality is located in the CBFP device.
7.1.4
Protection and Automation Functions
7.1 Circuit-Breaker Failure Protection
528 SIPROTEC 5, High-Voltage Bay Controller, Manual
C53000-G5040-C015-9, Edition 11.2017
