Group Indications of Overcurrent Protection Functions
Description
The function block Group indications of the overcurrent protection functions uses the pickup and operate
indications of the following functions:
•
Overcurrent protection, phases
•
Overcurrent protection, ground
•
Directional overcurrent protection, phases
•
Directional overcurrent protection, ground
•
Ground-fault protection for high-impedance ground faults in grounded systems
•
Instantaneous high-current tripping
The group indications of the overcurrent protection are generated by a logical OR of the stage-selective pickup
and operate indications of the functions listed above (see also Figure 7-126):
•
Pickup
•
Operate
The pickup and operate indications are output, where present, with direction information.
[loocgrin-240112-01.tif, 3, en_US]

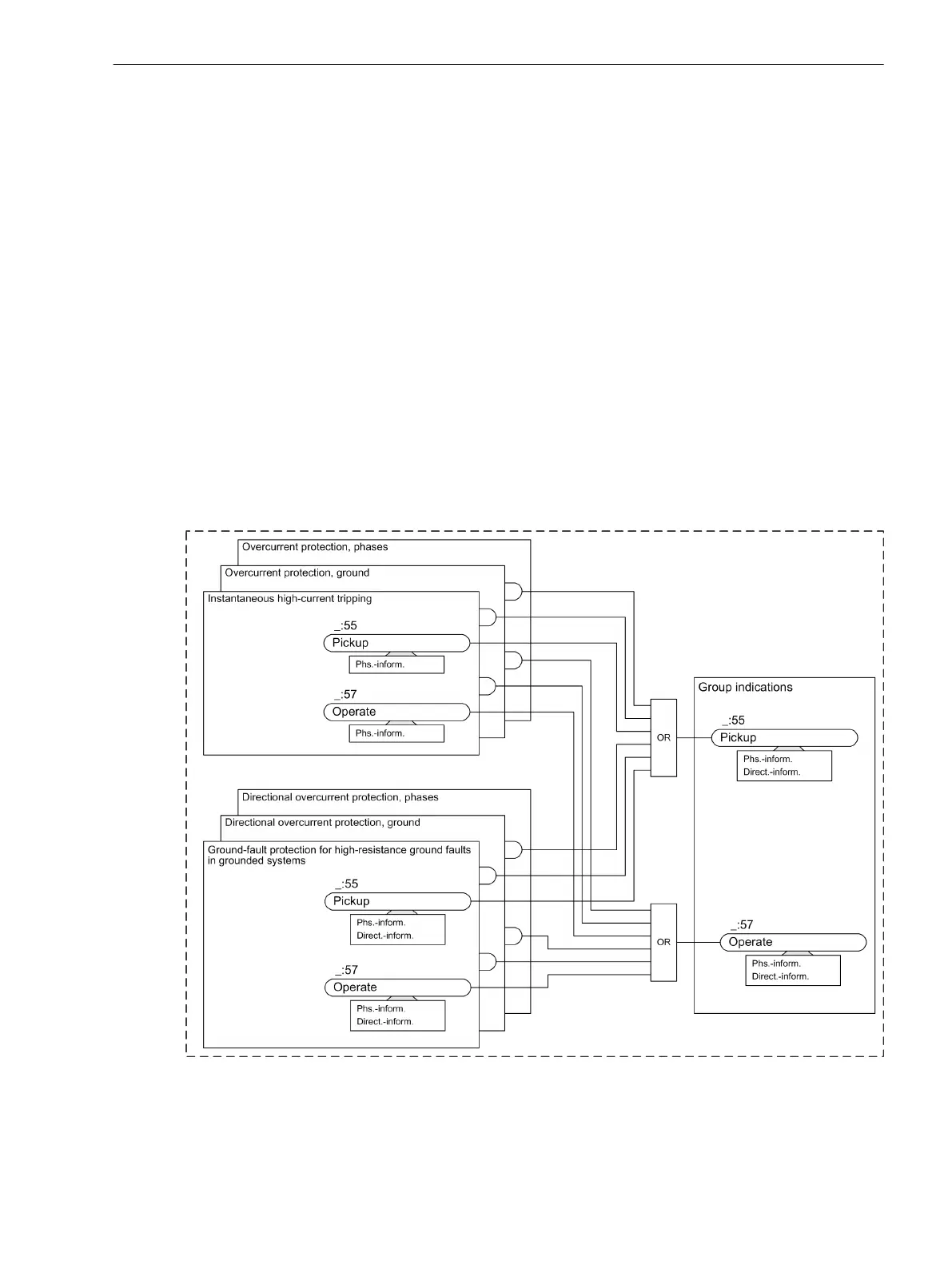

Figure 7-126
Logic Diagram of the Overcurrent Protection Group Indications
