Siemens SINUMERIK 828D

$TC_CARR37[n] Display variants of the input screens for CYCLE800
Decimal place Meaning
5 = Swivel data set enabled
Automatic
swivel data set
change and manual tool
change
6 = Swivel data set enabled
Manual swivel data set
change and automatic tool
change
7 = Swivel data set enabled
Manual swivel data set and tool change
Retracting the geometry axes before swiveling

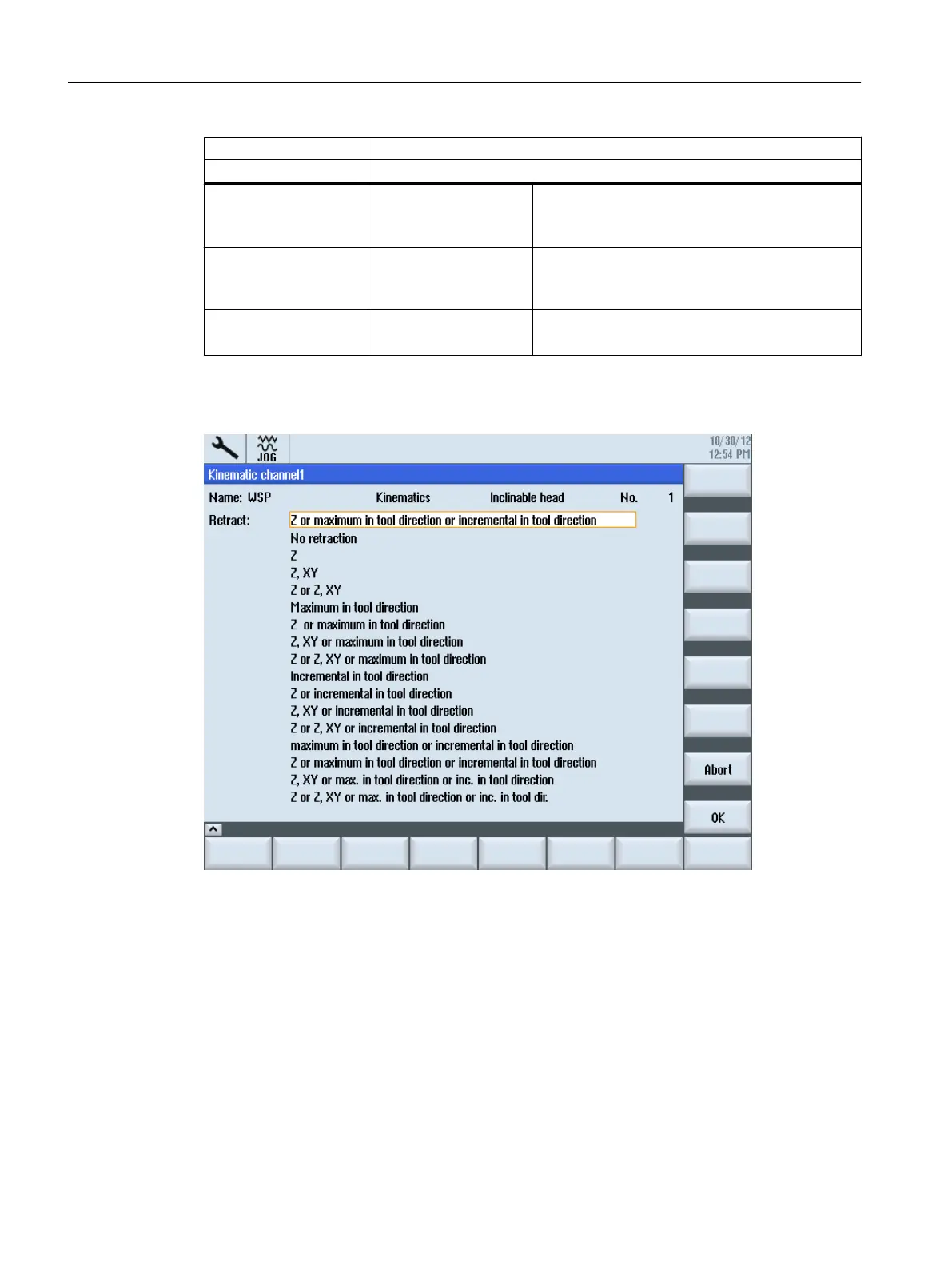

Figure 7-8 Dialog to select the type of retraction
Select the retraction variant in the input field: This is defined in the ONE MILLION and TEN
MILLION position of the system variable $TC_CARR37[n]:
● Retraction of axis Z
● Retract axes Z, XY
● Retract in the tool direction, maximum or incremental
Configuring cycles
7.7 Swiveling
SINUMERIK Operate
148 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
