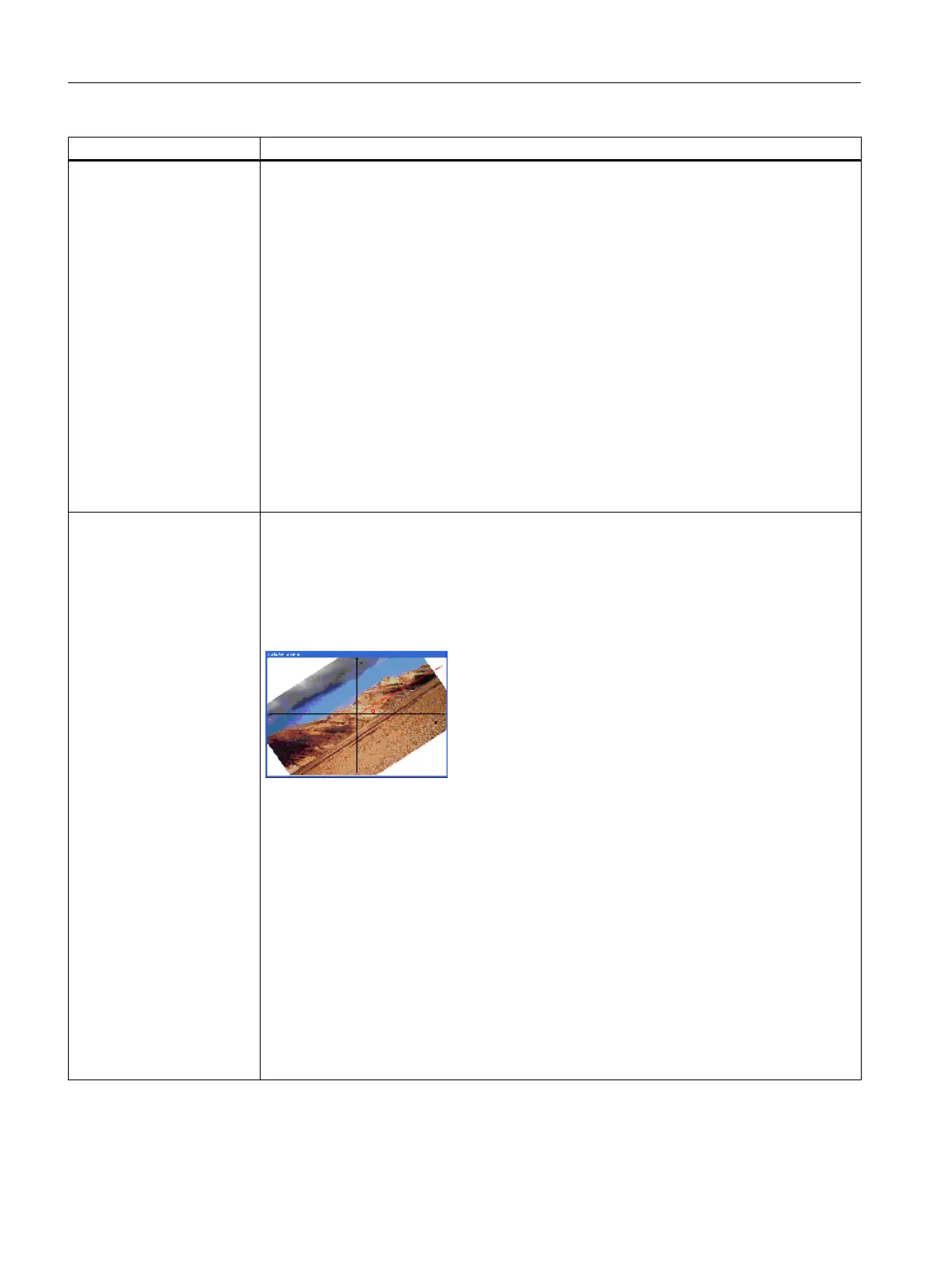

Tag identifier Meaning
IMG The tag is used to display an image in the specified position. The BMP and PNG image formats
are supported.
Syntax:
<IMG xpos = "<X position>" ypos = "<Y position>" name = "<name>" />
<IMG xrot="angle
X axis" yrot=" angle Y axis " zrot=" angle Z axis
" />
Attributes:
xpos
X position of the top left corner
ypos
Y position of the top left corner
name
complete path name
transparent
Transparent color of the bitmap (see Chapter "Color coding (Page 42)"):
IMG Continued Example:
The image is rotated through 34 degrees around the Z axis:
<img xpos = "5" ypos = "23" name = "f:/appl/pic3.bmp" height="355"
width="550" zrot="34" color_bk="#ffffff" >
</img>
Optional:
If the image display is to differ from the original size, the dimensions can be defined using the
attributes width and height.
width
Width in pixels
height
Height in pixels
Examples:
<IMG xpos = "20" ypos = "40" name = "f:/appl/test.bmp" />
<IMG xpos = "5" ypos = "23" name = "f:/appl/test.bmp" height = "355"
width = "550"/>
Generating user dialogs
1.6 XML identifier
Easy XML
66 Programming Manual, 10/2015, 6FC5397-3DP40-5BA3
